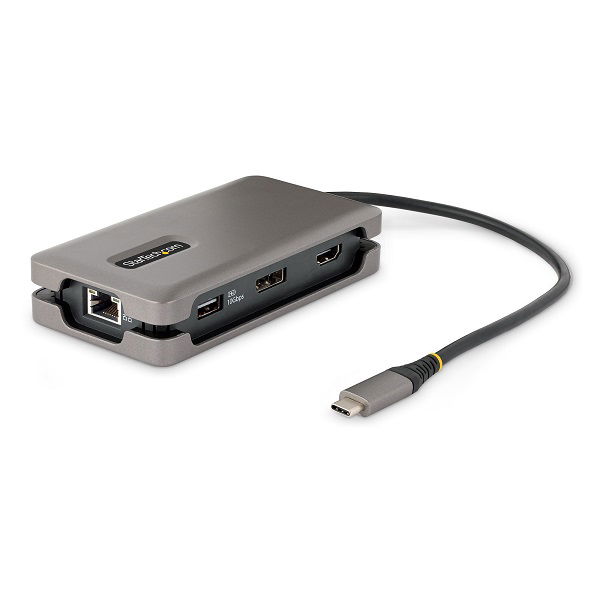

StarTech USB-C Multiport Docking Station with 100W Power Delivery Pass - HDMI, DisplayPort, USB-C, USB-A

Connect this USB Type-C Multiport Adapter to a USB-C, USB4, or Thunderbolt 3/4 laptop to enable single-display HDMI 2.0b or DisplayPort 1.4 video output via DP Alt Mode, supporting resolutions up to 4K 60Hz. The USB-C dock works with USB Type-C laptops or tablets, such as a Chromebook, Dell XPS, or MacBook. It features a 3-Port USB 3.2 Gen 2 (10Gbps) Hub (2x USB-A, 1x USB-C), and Gigabit Ethernet. Connect the laptop USB-C power supply to the dedicated USB Power Delivery (PD) 3.0 port, to charge the laptop.

Extra-Long Cable with Built-in Cable Manager:
The Multiport Adapter features an extra-long attached 12.6in. (32cm) USB-C host cable. The Thermoplastic Elastomer (TPE) cable jacket is softer and more flexible than PVC jacketed cables. The extra-long cable reduces port/connector strain, particularly when laptops are placed on riser stands, or on 2-in-1 devices with raised USB-C ports, such as the Microsoft Surface. In addition, the Multiport Adapter also features an innovative wrap-around cable manager that facilitates tangle-free storage in a laptop bag.

USB 3.2 Gen 2 Hub:
Connect one USB-C and two USB-A peripherals to the USB 3.2 Gen 2 (10Gbps) ports. A versatile solution for adding docking station capabilities in an office, home office, hotel, or in the boardroom. It's portable enough to be carried in a bag or backpack. This lightweight USB-C Adapter can operate with bus-power alone or connect a USB-C power adapter (not included with Multiport Adapter) for laptop charging. USB PD 3.0 features Fast Role Swap (FRS) to prevent USB data disruption when disconnecting the power source.

Wired Gigabit Network Connectivity:
The Gigabit Ethernet port ensures reliable wired network access, with support for PXE Boot and Wake-on-LAN (WoL).

Connector(s):

• External Ports: 1 - HDMI (19 pin), 1 - DisplayPort (20 pin), 2 - USB 3.2 Type-A (9 pin, Gen 2, 10Gbps), 1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps), 1 - USB Type-C (24 pin) USB Power Delivery Only, 1 - RJ-45
• Host Connectors: 1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps)

Environmental:

• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -20°C to 55°C (-4°F to 158°F)
• Humidity: 0% to 85% (non-condensing)

Hardware:

• 4K Support: Yes
• Fast-Charge Port(s): No
• Displays Supported: 1
• Interface: USB 3.2 Gen 2 (10 Gbps)
• Bus Type: USB-C
• Industry Standards: HDMI 2.0b, DisplayPort 1.4
• Chipset ID: Realtek - RTL8153, Realtek - RTL2142, VIA - VL822-Q8, VIA - VL103

Indicators:

• LED Indicators: 1 - Network Link Speed - Green (Network Operating at 1Gbps or 100Mbps), Off (Network Operating at 10Mbps or Lower), 1 - Network Link Status - Solid Amber (Link Detected), Flashing Amber (Link Activity), Off (No Link Detected)

Performance:

• Maximum Data Transfer Rate: 10Gbps
• Maximum Digital Resolutions: 4K (4096 × 2160) 60Hz
• Type and Rate: USB 3.2 Gen 2 - 10 Gbit/s
• UASP Support: Yes
• Compatible Networks: 10/100/1000 Mbps
• PXE: Yes
• Full Duplex Support: Yes
• General Specifications: Maximum Laptop Charging: 85W

Physical Characteristics:

• Color: Space Gray
• Product Length: 4.9 in [12.4 cm]
• Product Width: 2.5 in [6.4 cm]
• Product Height: 1.0 in [2.5 cm]
• Weight of Product: 4.6 oz [130.0 g]
• Material: Plastic
• Cable Length: 12.6 in [32 cm]

Power:

• Power Source: Bus Powered and Host USB-C Power Adapter
• Power Delivery: 100W
• Power Consumption (In Watts): 15W

OS Compatibility:

• Windows 7, 8, 8.1, 10, 11
• macOS 10.15, 11.0, 12.0, 13.0
• Android
• Linux Ubuntu 18.04, 20.04
• ChromeOS

• 1 - USB-C Multiport Adapter
• 1 - Quick-Start Guide
