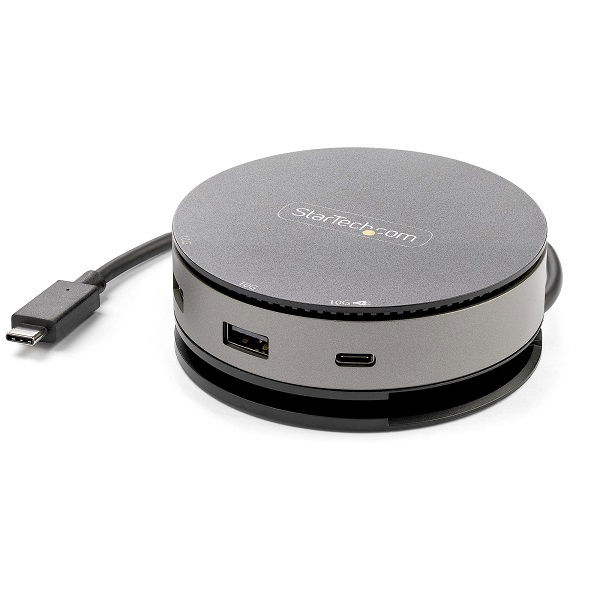

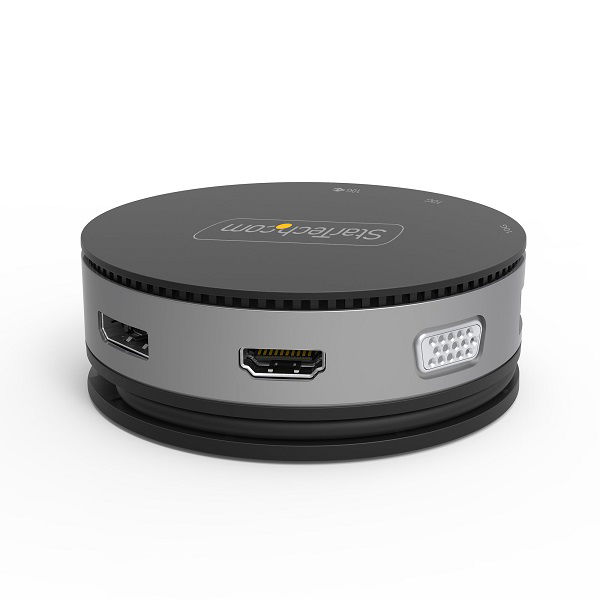

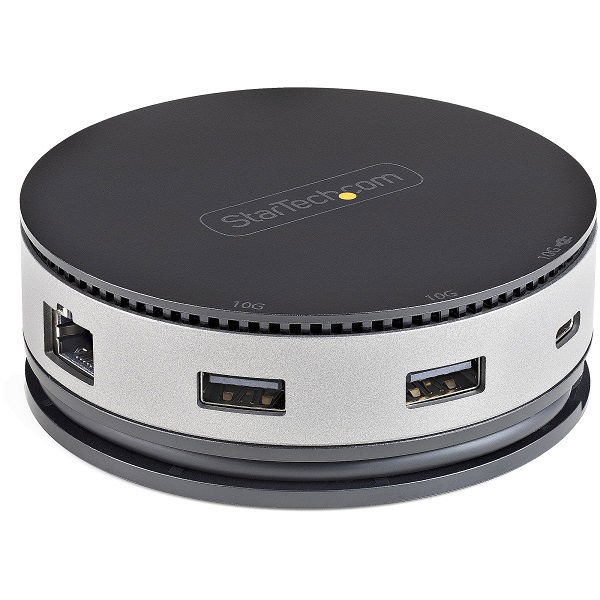

StarTech USB-C Mini Docking Station with 75W Power Delivery Power Delivery - HDMI, DisplayPort, VGA, GbE, USB-C

This USB-C Gen 2 10Gbps multiport adapter, with backward USB-C laptop compatibility, turns your USB-C or Thunderbolt 3 Windows laptop, MacBook Pro, iPad Pro, Surface, Chromebook, or Android tablet into a workstation, anywhere you go. The USB 3.2 Gen 2 Type-C hub adapter features a unique portable, circular design and all of the essential connections.

Three Video Output Options:
This USB-C multiport adapter features HDMI, DisplayPort, and VGA ports providing you with three single video output options for your workstation setup or boardroom presentations including support for an ultra-wide monitor.

Designed for Portability & Ease of Use:
The USB-C travel dock features a compact circular design and an attached extended length 24cm (10 in.) host cable, accommodating a wide variety of setups. Bus-powered for most applications, there's no need to carry around a separate bulky power adapter. If extra power required, you can use your external USB-C laptop power adapter with support for up to 75W Power Delivery pass-through (15W for docking station & rest for charging).

Essential Port Configuration:
In addition to the video outputs, the portable USB-C dock gives you two 10Gbps USB-A ports and one 10Gbps USB-C port to connect the latest and legacy USB devices. The adapter also integrates a Gigabit Ethernet port to access a wired network.

Connector(s):

• Connector Type(s): 1 - HDMI, 1 - DisplayPort, 1 - VGA (15 pin, High Density D-Sub), 1 - Ethernet Gigabit, 1 - USB 3.2 USB Type C (10 pin, Gen 2, 10 Gbps), 2 - USB 3.2 Type-A (9 pin, Gen 2, 10Gbps)
• Host Connectors: 1 - USB 3.2 USB Type C (10 pin, Gen 2, 10 Gbps)

Environmental:

• Operating Temperature: 0 to 50⁰C
• Storage Temperature: -20 to 70⁰C
• Humidity: 0% to 95%(non-condensing) at 25°C

Hardware:

• 4K Support: Yes
• Fast-Charge Port(s): Yes
• Displays Supported: 1
• Ports: 6
• Audio: No
• Interface: USB 3.2 Gen 2 - 10 Gbit/s
• Bus Type: USB 3.2 Gen 2
• USB Pass-Through: Yes
• Industry Standards: 1 Gigabit connectivity to any 1000Base-T device (IEEE802.3ab Compliant), 100 Megabit connectivity to any 100Base-TX device (IEEE802.3u Compliant), 10 Megabit connectivity to any 10Base-T device (IEEE802.3i Compliant)
• Chipset ID: Genesys Logic GL9510, Genesys Logic GL3590, Realtek RTL8153, Realtek RTD2142

Performance:

• Maximum Data Transfer Rate: 10 Gbps
• Maximum Digital Resolutions: 4K 60Hz
• Type and Rate: USB 3.2 Gen 2 - 10 Gbit/s

Physical Characteristics:

• Color: Black & Gray
• Product Height: 1.3 in [3.2 cm]
• Product Length: 3.5 in [9.0 cm]
• Weight of Product: 7.1 oz [201.0 g]
• Product Width: 3.5 in [9.0 cm]
• Material: Plastic

Power:

• Output Voltage: 5 DC

OS Compatibility:

• Windows 11
• Windows 10
• Windows 8.1
• macOS Sierra (10.12)
• macOS High Sierra (10.13)
• macOS Mojave (10.14)
• macOS Catalina (10.15)
• macOS Big Sur (11.0)
• macOS Monterey (12.0)
• macOS Ventura (13.0)
• Chrome OS 69.x
• Android OS 9.x
• iPadOS

• 1 - USB-C Multiport Adapter
• 1 - Quick-Start Guide
