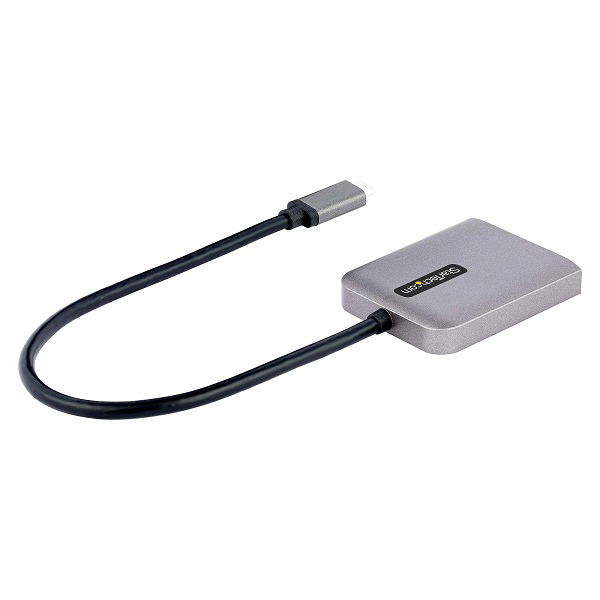

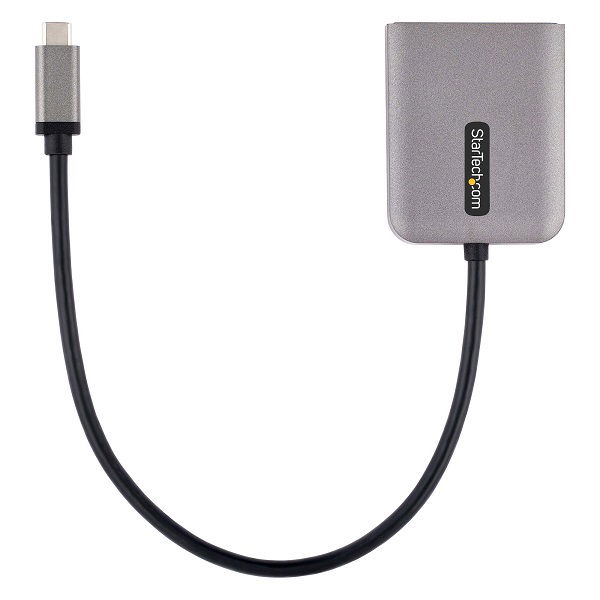

StarTech USB-C to Dual DisplayPort Adapter - Space Gray

This USB-C to DisplayPort MST Hub enables a connection to two DisplayPort monitors, using a DisplayPort Alternate Mode (DP Alt Mode) capable USB-C host device.

4K at 60Hz with HDR:
Multi-Stream Transport (MST) technology combines multiple video signals into a single output signal/stream. This MST Hub separates the single input stream into two independent signals, one for each DisplayPort-enabled display. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and luminosity.

Multitasking Made Easy:
Configure the dual-DP displays in extended or mirrored mode. Create a high-performance workstation by adding two independent 4K 60Hz displays. This empowers increased multi-tasking across your organization, resulting in increased productivity.

Hassle-Free Setup:
Windows devices supporting DP Alt Mode over USB-C feature native support for MST. This USB-C to DP hub is compatible Thunderbolt 3/4 and USB4-enabled Windows devices with 11th generation (and later) processors. Plug-and-play installation, with no drivers or software required. The 12in (30cm) built-on cable provides options for flexible installation configurations, reducing the amount of strain on ports and connectors. Additionally, this dual-monitor splitter is bus-powered, requiring no external power source.

Connector(s):

• Connector A: 1 - USB-C (24 pin) DisplayPort Alt Mode
• Connector B: 2 - DisplayPort

Environmental:

• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Humidity: 5% to 90% RH (non-condensing)

Hardware:

• Active or Passive Adapter: Active
• AV Input: USB-C
• AV Output: DisplayPort - 1.4
• Audio: Yes
• Chipset ID: Synaptics - VMM5220, VIA/VLI - VL103

Performance:

• Video Revision: DisplayPort 1.4
• Wide Screen Supported: Yes
• Audio Specifications: DisplayPort - 2 Channel Audio

Physical Characteristics:

• Color: Space Gray
• Product Length: 2.4 in [6.1 cm]
• Product Width: 1.9 in [4.9 cm]
• Product Height: 0.4 in [1.1 cm]
• Weight of Product: 1.9 oz [55.0 g]
• Material: Plastic
• Cable Length: 11.8 in [30 cm]

Power:

• Power Source: Bus Powered

OS Compatibility:

• Windows 10/11

• 1 x USB-C to 2x DisplayPort MST Hub
