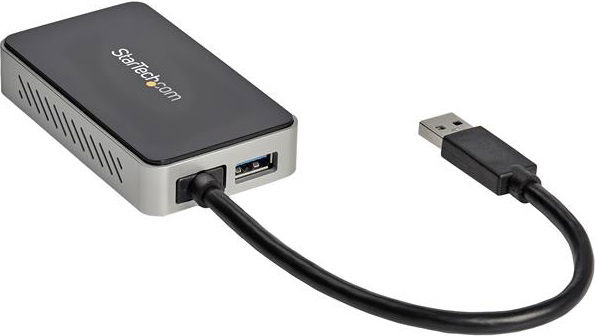

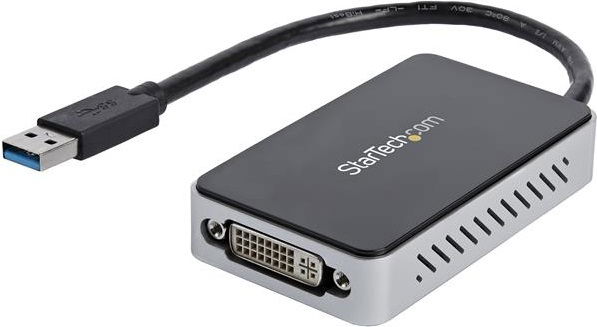

StarTech USB 3.0 Type-A to DVI Adapter with 1 Port USB Hub

The USB32DVIEH USB 3.0 to DVI Adapter is TAA compliant and turns an available USB 3.0 port into a DVI output port with high resolution 1920x1200 video support. The adapter features built-in USB 3.0 pass-through, which offers a connection port in place of the USB port used for connecting the DVI adapter – an ideal workaround for Ultrabook or laptop users where only a limited number of USB ports are available.

• TAA Compliant
• Supports resolutions up to 1920x1200
• Built in 1-Port USB 3.0 Hub

Hardware:

• Audio: No
• AV Input: USB 3.0
• AV Output: DVI, VGA
• Bus Type: USB 3.0
• Chipset ID: Trigger - T6-688SL
• Displays Supported: 1
• Industry Standards: SuperSpeed USB 3.0, USB 2.0
• Memory: 16MB
• USB Pass-Through: Yes

Performance:

• General Specifications: This USB video adapter uses a Trigger family chipset. If you’re connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a DisplayLink or Fresco family chipset.
• Maximum Analog Resolutions: 1920x1200
• Maximum Digital Resolutions: 1920x1200
• Supported Resolutions: Widescreen(16/32 bit): 1920x1200, 1920x1080, 1680x1050, 1600x900, 1440x900, 1360x768, 1280x800, 1280x768, 1280x720, Standard(16/32 bit): 1600x1200, 1400x1050, 1280x1024, 1280x960, 1152x864, 1024x768, 800x600
• Wide Screen Supported: Yes

Connector(s):

• Connector A: 1 - USB Type-A (9 pin) USB 3.0 Male
• Connector B: 1 - DVI-I (29 pin) Female, 1 - USB Type-A (9 pin) USB 3.0 Female

Power:

• Power Source: USB-Powered

Environmental:

• Humidity: < 85% non-condensing
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -10°C to 75°C (14°F to 167°F)

Physical Characteristics:

• Cable Length: 160 mm
• Color: Black
• Material: Plastic

• Microsoft WHQL Certified: Yes
• OS Compatibility: Windows 10 (32/64), Windows 8 / 8.1 (32/64), Windows 7(32/64), Windows Vista (32/64), Windows XP (32/64)
• System and Cable Requirements: System Processor: Quad Core 2.4GHz (i5 recommended). System Memory: 4GB. Not intended for gaming
• Note: This USB video adapter uses a Trigger family chipset. If you’re connecting this device to a computer along with additional USB video adapters or docking stations, avoid using devices with different family chipsets, such as DisplayLink or Fresco Logic. Connect a maximum of five USB video adapters on a single computer. Support for multiple adapters will vary depending upon your system resources. This USB video adapter is not intended for graphical intensive applications, such as gaming

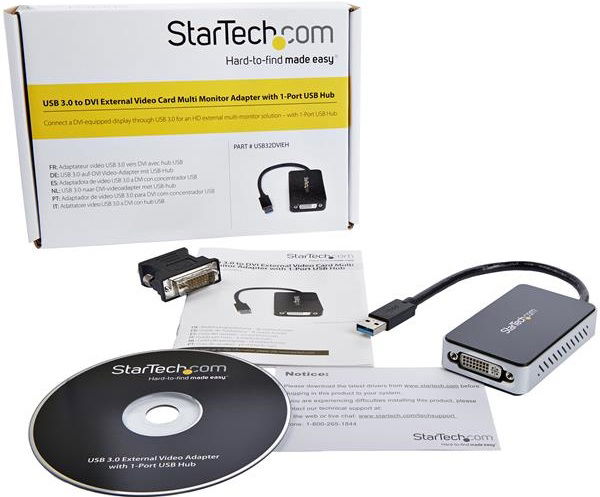

• 1x USB 3.0 to DVI Adapter
• 1x DVI to VGA adapter
• 1x Software CD
• 1x Manual
