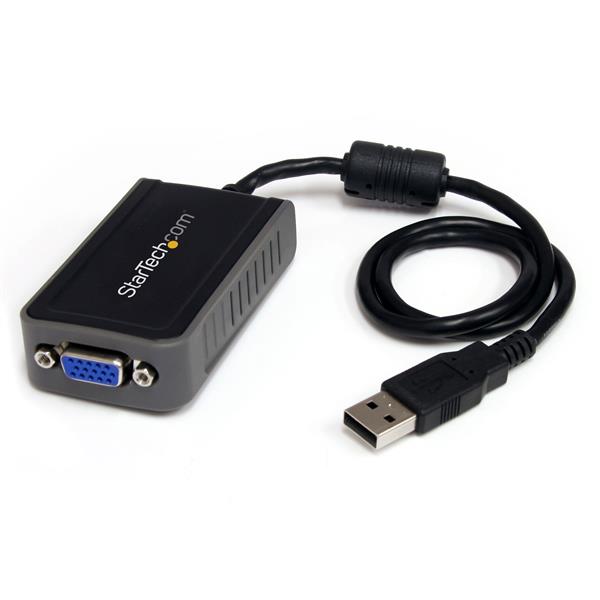

StarTech USB to VGA Multi Monitor External Video Adapter

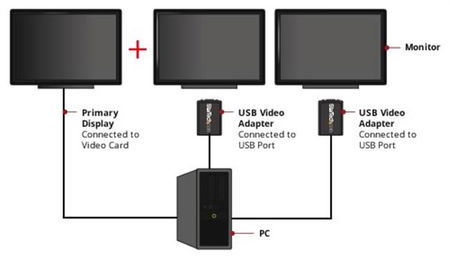

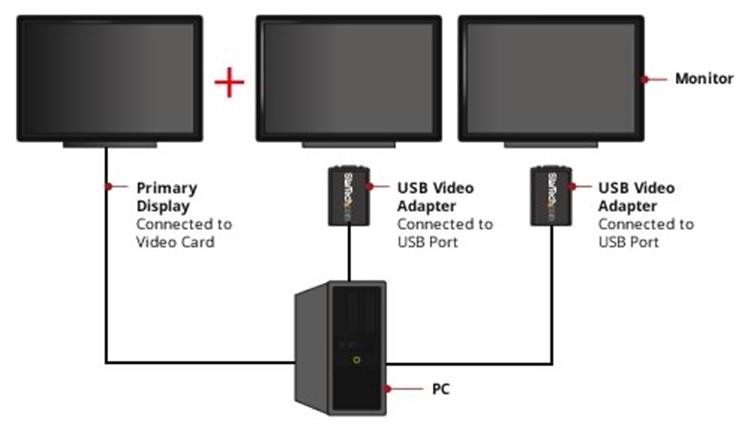

The USB2VGAE2 USB to VGA external video adapter is the perfect multi-monitor VGA solution for office applications and Internet browsing. The USB video adapter features a small form factor and enables a USB 2.0 port to be used with a VGA port. A cost-saving multi-monitor or dual display option that can be used as an external graphics card for either laptop or desktop applications.

• Optimal performance at 1440 x 900 (higher resolutions supported) and ideal for use with 17" to 19" monitors or smaller
• Works with desktop and laptop computers
• No power adapter required

Hardware:

• AV Input: USB 2.0
• AV Output: VGA
• Chipset ID: MCT - Trigger 1+
• Memory: 16MB SDRAM
• USB Pass-Through: No

Performance:

• General Specifications: This USB video adapter uses a Trigger family chipset. If you’re connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a DisplayLink or Fresco family chipset.
• Supported Resolutions: Standard: 1600x1200, 1400x1050, 1280x1024, 1280x960, 1152x864, 1024x768, 800x600 ; Widescreen: 1680x1050, 1440x900, 1280x800, 1280x768, 1152x864, 800x600

Connector(s):

• 1x USB Type-A (4 pin) USB 2.0 Male Input
• 1x VGA (15 pin, High Density D-Sub) Female Output

Environmental:

• Humidity: 5%-90% RH (no condensation)
• Operating Temperature: 0°C to 45°C (32°F to 113°F)
• Storage Temperature: -10°C to 70°C (14°F to 158°F)

Physical Characteristics:

• Cable Length: 457.2 mm
• Color: Gray
• Product Height: 50 mm
• Product Length: 75 mm
• Product Weight: 80 g
• Product Width: 42 mm

OS Compatibility:

• Windows 10 (32/64)
• Windows 8 / 8.1 (32/64)
• Windows 7(32/64)
• Windows Vista (32/64)
• Windows XP (32/64)

System Requirements:

• One available USB 2.0 port
• Not intended for gaming

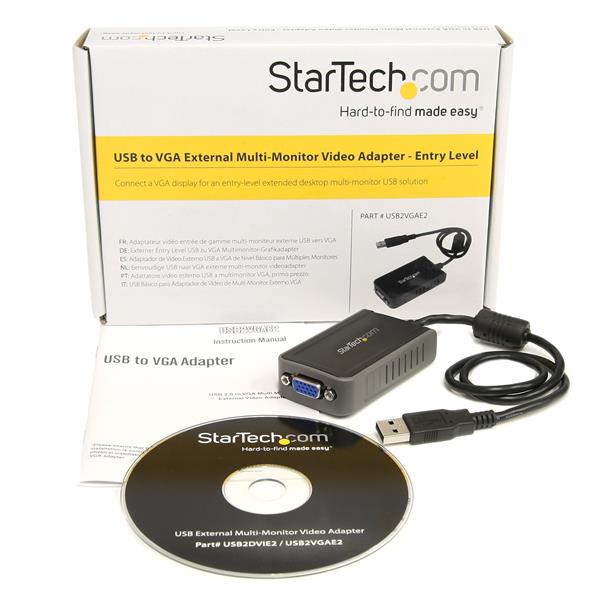

• 1x USB to VGA Adapter
• 1x Driver and Software CD
• 1x Instruction Manual
