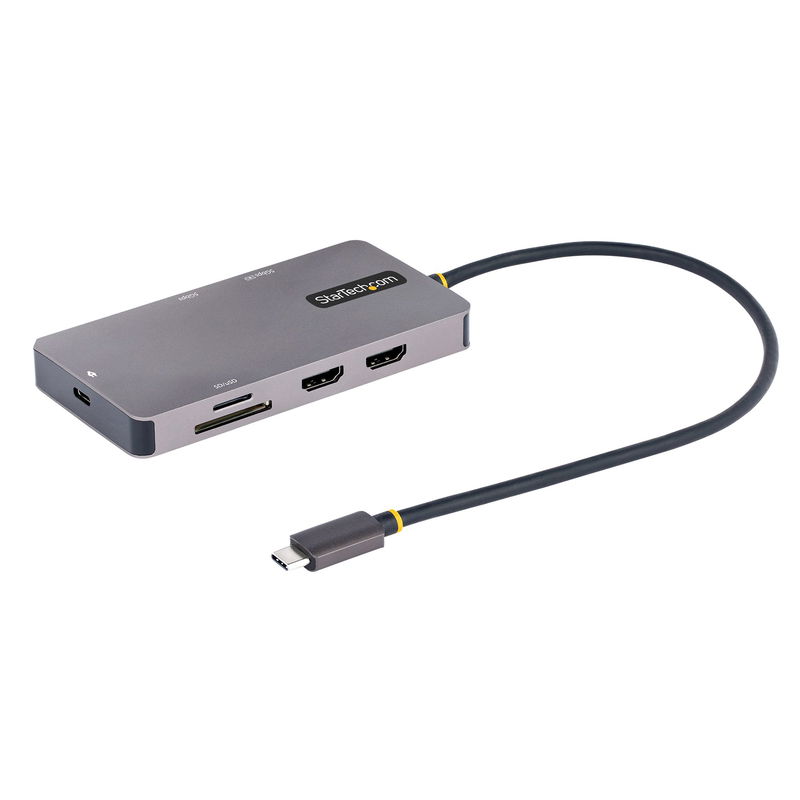

StarTech USB C Multiport Adapter with Power Delivery, 2x HDMI, 2x USB 3.2 Type-A, 1x USB 3.2 Type-A, 1x SD Slot, 1x MicroSD - Space Gray

This USB Type-C Multiport Adapter with DP 1.4 Alternative Mode, DSC, and MST, supports dual-HDMI (HDR) video with resolutions of up to 4K 60Hz uncompressed video. The mini travel dock turns your Dell XPS, Lenovo X1 Carbon, HP Elite/ProBook, or other USB-C laptop into a workstation, anywhere you go. The USB-C docking station provides dual HDMI outputs, a 2-port USB 3.2 Gen 1 Type-A (5Gbps) Hub including a BC 1.2 port to power and charge a USB peripheral, SD and MicroSD card readers, and a Gigabit Ethernet port, all through one connection to your laptop's USB-C or Thunderbolt 3/4 port. In addition, it offers advanced charging through USB Power Delivery (PD) 3.0 pass-through via an integrated 12-inch (30 cm) USB-C host cable, for more setup flexibility.

High-Performance Dual-HDMI Video via MST:
The compact docking station connects your laptop to two HDMI monitors, creating a powerful workstation. It supports DP 1.4 Alt Mode with DSC and MST, for uncompressed video performance up to dual 4K (3840 x 2160p) at 60Hz, depending upon your host computer. The dock also supports the use of ultrawide monitors.

Connect Your Devices:
The USB-C to USB 3.2 Gen 1 (5Gbps) hub provides two USB-A ports for connecting your USB devices.

Multiple Use Cases:
A versatile dock solution for use at your office desk, home office, hotel desk, or in the boardroom. It's portable enough to be carried in your bag/backpack for mobile use. The USB-C dock can operate with bus power alone, or with a USB-C power adapter connected to the pass-through port - for full laptop and peripheral charging. The lightweight docking station features a built-in 12-in (30 cm) USB-C host cable.

Built-In SD Card Reader:
Access your multimedia content with ease. The multiport adapter provides direct access to your SD / SDHC / SDXC or microSD (uSD) memory cards.

Charge Your Laptop and Peripherals:
With support for USB PD 3.0 (up to 100W), the USB Type-C multiport adapter enables you to power and charge your laptop and a USB peripheral, when a USB-C power adapter is connected to the pass-through port. PD 3.0 features Fast Role Swap (FRS) which prevents USB data disruption when switching power sources (e.g., USB-C power adapter to bus power).

Reliable Network Connectivity:
The Gigabit Ethernet port ensures reliable wired network access. Support for WoL allows you to boot the host computer from a remote location.

Connector(s):

• External Ports: 2 - HDMI (19 pin), 2 - USB 3.2 Type-A (9 pin, Gen 1, 5Gbps), 1 - RJ-45, 1 - SD Slot, 1 - MicroSD, 1 - USB Type-C (24 pin) USB Power Delivery Only
• Host Connectors: 1 - USB 3.2 Type-C (24 pin, Gen 1, 5Gbps)

Environmental:

• Operating Temperature: 0°C to 45°C (32°F to 133°F)
• Storage Temperature: -10°C to 70°C (14°F to 185°F)
• Humidity: 10~90% RH (Non-condensing)

Hardware:

• 4K Support: Yes
• Fast-Charge Port(s): Yes
• Displays Supported: 2
• Interface: USB 3.2 Gen 1
• Bus Type: USB-C
• Industry Standards: HDMI 2.0, HDR10, DisplayPort 1.4, USB 3.2 Gen 1 (5Gbps), USB Power Delivery Specification Rev. 3.0
• Chipset ID: VIA - VL102, VIA - VL817, NOREL Systems - NS1081, ASIX - AX88179A, Synaptics - VMM6210

Indicators:

• LED Indicators: 1 - Connection state/activity LEDs under GbE port.

Performance:

• Maximum Data Transfer Rate: 5 Gbps
• Maximum Digital Resolutions: Up to dual 4K (3840 x 2160p) 60Hz
• Type and Rate: USB 3.2 Gen 1 - 5 Gbit/s
• UASP Support: Yes
• Compatible Networks: 10/100/1000 Mbps
• Full Duplex Support: Yes

Physical Characteristics:

• Color: Space Gray
• Product Length: 5.9 cm
• Product Width: 14.5 cm
• Product Height: 1.4 cm
• Weight of Product: 165.0 g
• Material: Aluminum
• Cable Length: 30 cm

Power:

• Power Source: Bus Powered and Host USB-C Power Adapter
• Power Consumption (In Watts): 15W

OS Compatibility:

• Windows 7, 8, 8.1, 10, 11
• Chrome OS

• 1 - USB-C Multiport Adapter
• 1 - Quick-Start Guide
