Key Details:
- Model: SV431USBDDM
- Part #: T45372
- Warranty: 2 Years
- Brand: StarTech
Ask Our Experts:
Special Offer
-
Receive an additional 7% discount on any Startech quote when requesting a minimum of 5 units for Government & Public Sector Agencies/Organisations. Please state your organisation details when requesting a quote from our team. T&C apply.

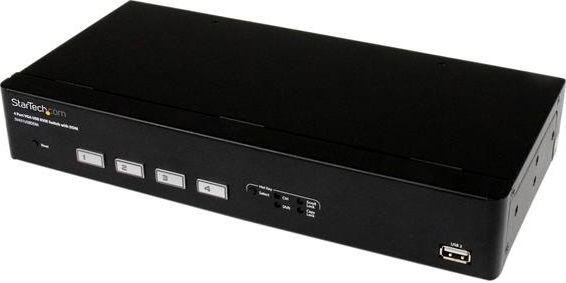

StarTech 4 Port USB VGA KVM Switch with DDM Fast Switching Technology and Cables
The SV431USBDDM 4-Port USB VGA KVM Switch lets you control 4 VGA, USB-equipped PCs using a single peripheral set at high-definition VGA resolutions up to 1920x1440. The included KVM cables provide a ready-out-of-the-box solution, while USB Dynamic Device Mapping (DDM) and Display Data Channel (DDC) features work to significantly reduce switching lag-time and improve overall compatibility with your connected display and input devices, saving you time and money.
- USB DDM technology and Dual-Core design for lag-free switching
- Supports HD resolutions up to 1920x1440
- All-time Full DDC communication for proper display detection
Hardware:
- Audio: No
- Cables Included: Yes
- Daisy-Chain: No
- KVM Ports: 4
- Number of Monitors Supported: 1
- PC Interface: USB
- PC Video Type: VGA
- Rack-Mountable: No
Performance:
- Hot-Key Selection: Yes
- IP Control: No
- Maximum Analog Resolutions: 1920x1440
- Maximum Number of Users: 1
- On-Screen Display: No
- Port Selection Support: Push Button and Hotkeys
Conector(s):

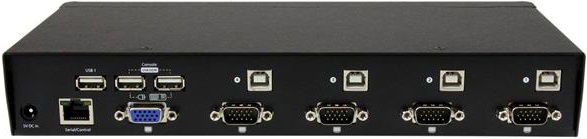

- Console Interface(s): 1 - VGA (15 pin, High Density D-Sub) Male, 2 - USB Type-A (4 pin) USB 2.0 Female
- Host Connectors: 4 - USB B (4 pin) Male, 4 - VGA (15 pin, High Density D-Sub) Male
- Other Interface(s): 1 - RJ-45 Female, 2 - USB Type-A (4 pin) USB 2.0 Female
Indicators:
- LED Indicators: 4 - PC Selection Indicators, 4 - Hot-Key Selection Indicators
Power:
- Center Tip Polarity Positive
- Input Current: 0.4A
- Input Voltage: 100 - 240 AC
- Output Current: 2.0A
- Output Voltage: 5 DC
- Plug Type: M
- Power Consumption (In Watts): 10
- Power Source: AC Adapter Included
Environmental:
- Humidity: 0~80% RH (Non-Condensing)
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -30°C to 70°C (-22°F to 158°F)
Physical Characteristics:
- Color: Black
- Material: Steel
- OS Compatibility: OS independent; No software or drivers required

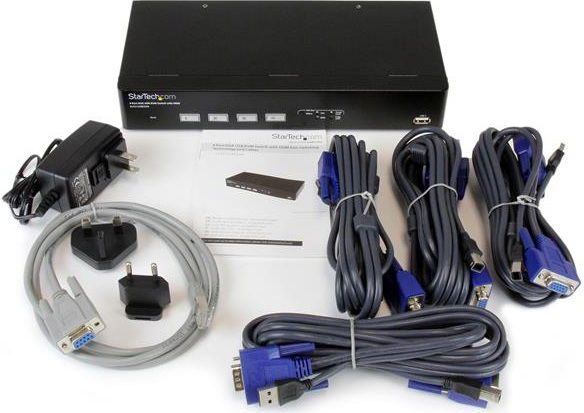

- 1x KVM Switch
- 4x 6ft VGA USB KVM Cables
- 1x Firmware Upgrade Cable
- 1x Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand
- 1x Instruction Manual
