Key Details:
- Model: SV231DPUA
- Part #: DD014336
- Warranty: 3 Years
- Brand: StarTech
Ask Our Experts:
Special Offer
-
Receive an additional 7% discount on any Startech quote when requesting a minimum of 5 units for Government & Public Sector Agencies/Organisations. Please state your organisation details when requesting a quote from our team. T&C apply.

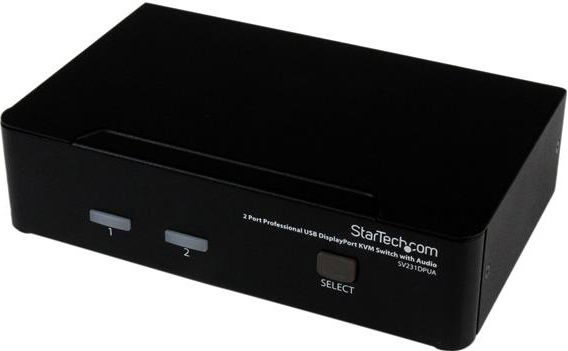

StarTech 2 Port Professional USB DisplayPort KVM Switch with Audio
The SV231DPUA 2-Port USB DisplayPort KVM Switch delivers dual computer KVM control, for demanding high definition multimedia applications. Supporting DisplayPort connections with a native resolution of 2560 x 1600, and support for both 7.1 HD digital audio (when connected to supporting displays and sources) and 3.5mm stereo analog audio/mic.
- Supports native DisplayPort computer connections - no adapter required
- Native resolution: 2560 x 1600 @ 60Hz, beyond 1080p
- Supports a maximum resolution of 3840 x 2400 at lower refresh rates
Hardware:
- Audio: Yes
- Cables Included: No
- Daisy-Chain: No
- KVM Ports: 2
- Number of Monitors Supported: 1
- PC Interface: USB
- PC Video Type: DisplayPort
- Rack-Mountable: No
Performance:
- DVI Support: No
- Hot-Key Selection: Yes
- IP Control: No
- Maximum Digital Resolutions: 2560 x 1600 @ 60Hz
- Maximum Number of Users: 1
- MTBF: 127000 hours
- On-Screen Display: No
- Port Selection Support: Push Button and Hotkeys
- Wide Screen Supported: Yes

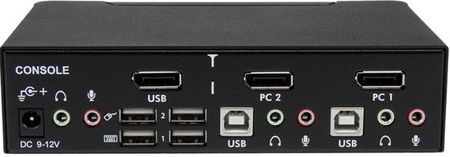

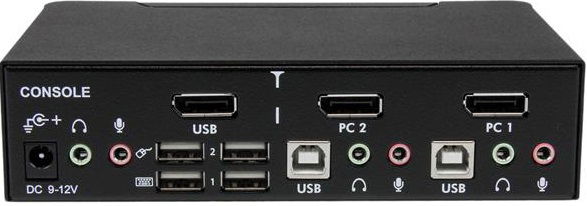

Connectors(s):
- Console Interface(s): 1 - DisplayPort (20 pin) Female, 2 - 3.5 mm Mini-Jack (3 Position) Female, 4 - USB Type-A (4 pin) USB 2.0 Female
- Host Connectors: 2 - DisplayPort (20 pin) Female, 2 - USB B (4 pin) Female, 4 - 3.5 mm Mini-Jack (3 Position) Female
Indicators:
- LED Indicators: 2 - Green - Online indicator (One LED per port), 2 - Red - Select indicator (One LED per port)
Power:
- Center Tip Polarity: Positive
- Input Current: 0.8A
- Input Voltage: 100 - 240 AC
- Output Current: 2A
- Output Voltage: 12V DC
- Plug Type: M
- Power Consumption (In Watts): 24
- Power Source: AC Adapter Included
Environmental:
- Humidity: 0~80% RH
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Physical Characteristics:
- Color: Black
- Material: Steel
- OS Compatibility: OS independent; No software or drivers required

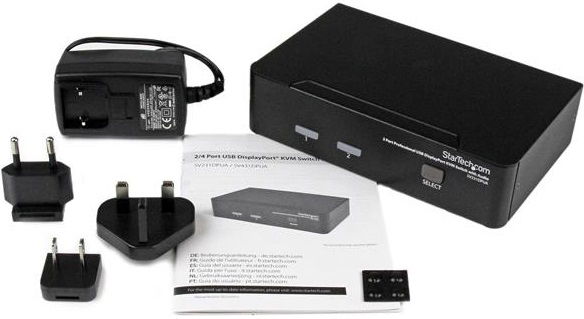

- 1x 2-port DisplayPort KVM switch
- 4x Foot pads
- 1x Universal power adapter (NA/JP, EU, UK, ANZ)
- 1x Quick-start guide
