StarTech 2 Port Gigabit Ethernet PCI Express Dual Profile Network Card

The ST2000SPEXI PCI Express Dual Port Gigabit Network Card lets you add two gigabit Ethernet ports to a desktop computer through a single, four-lane (x4 or higher)PCI Express slot.Each port is fully compatible with IEEE 802.3/u/ab standards, for 10/100/1000 Mbps auto-negotiation.

• Two 10/100/1000Mbps compatible RJ-45 Ethernet ports
• Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3ad (link aggregation) and supports IEEE 802.1Q VLAN tagging
• Jumbo Frame support up to 9k bytes

Hardware:
• Bus Type: PCI Express
• Card Type: Standard Profile (LP bracket incl.)
• Chipset ID: Intel - I350-AM2
• Industry Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, PCI Express Base Specification 2.1
• Interface: RJ45 (Gigabit Ethernet)
• Port Style: Integrated on Card
• Ports: 2

Performance:
• Auto MDIX: Yes
• Compatible Networks: 10/100/1000 Mbps
• Full Duplex Support: Yes
• Jumbo Frame Support: 9K max.
• Maximum Data Transfer Rate: 2000 Mbps (full-duplex), 1000 Mbps (half-duplex)
• MTBF: 432,400 hours
• Promiscuous Mode: Yes
• Supported Protocols: IEEE 802.3ad (link aggregation), IEEE 1588 (time sync) / 802.1AS, IEEE 802.1q (VLAN tagging)

Conector(s):
• Connector Type(s): 1 - PCI Express x4 Male
• External Ports: 2 - RJ-45 Female

Indicators:
• LED Indicators: 2 - 10/100/1000 Mbps Indicator, 2 - Link / Activity

• OS Compatibility: Windows 7, 8, 8.1, 10, Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019, Linux 2.4.x to 4.11.x LTS versions only
• System and Cable Requirements: Available PCI Express x4 or higher (x8, x16) slot

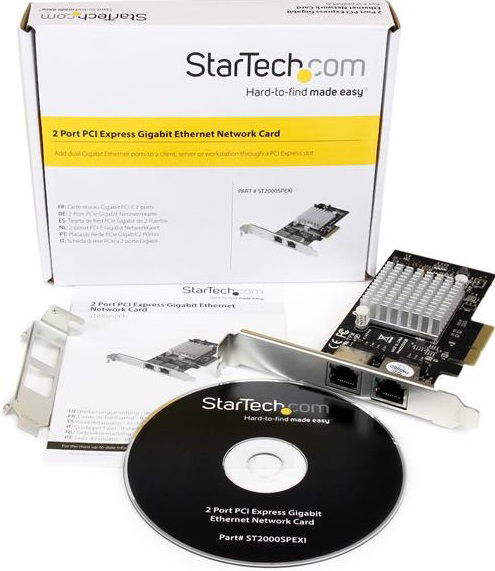

• 1x 2 Port Network Card
• 1xLow Profile Bracket
• 1x Driver CD
• 1x Instruction Manual
