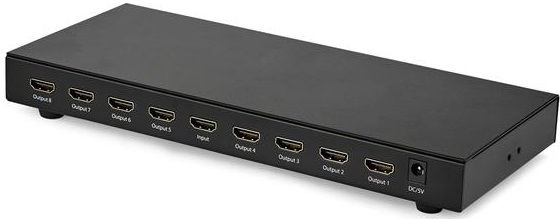

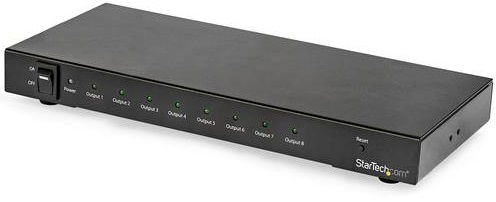

StarTech 8 Port 4K HDMI Video Splitter - Black

This 4K HDMI splitter lets you connect your HDMI video source to eight HDMI displays, with support for Ultra HD resolutions and HDR (High Dynamic Range) as well as 7.1 surround sound audio.

Supports true 4K at 60Hz

• This 8-port 4K 60Hz HDMI splitter offers full support for your HDMI 2.0 equipment, including true 4K resolution at 60Hz. For smoother video and color transitions, the splitter offers 4:4:4 chroma subsampling, meaning every pixel gets its own unique color. Support for HDMI 2.0 devices means this splitter can transmit bandwidth up to 18Gbps, making it the ideal solution for high-resolution tasks requiring the highest color detail. Note: In order to support 4K 60Hz coming through the splitter, each device in the chain must support HDCP 2.2.

Widely compatible

• The splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays. This ensures that it will work with lower resolution displays such as TVs or projectors around your site or in your digital signage application.

Easy installation and setup

• The 4K HDMI splitter offers easy plug-and-play installation with no additional software or drivers required. The splitter passes EDID between your video source and the display attached to port 1, ensuring native settings such as resolution and refresh rate are configured automatically.

Hardware:

• Audio: Yes
• AV Input: HDMI
• AV Output: HDMI
• Cabling: HDMI
• Industry Standards: HDMI 2.0, HDCP 2.2
• Ports: 9

Performance:

• Audio Specifications: 7.1 surround sound
• Maximum Digital Resolutions: 3840x2160 (4K) @ 60Hz
• Supported Resolutions: 2560x1600, 1920x1200, 1920x1080 (1080p), 1280x720 (720p)
• Wide Screen Supported: Yes

Connector(s):

• Connector A: 1 - HDMI (19 pin) Female Input
• Connector B: 8 - HDMI (19 pin) Female Output

Indicators:

• LED Indicators: 1 - Power LED, 1 - Input LED, 8 - Output LEDs

Power:

• Input Current: 0.6A
• Input Voltage: 100 - 240 AC
• Output Current: 3 A
• Output Voltage: 5 DC
• Power Consumption (In Watts): 15W

Environmental:

• Humidity: 20~90 % RH (non-condensing)
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)

Physical Characteristics:

• Color: Black
• Product Height: 2.6 cm
• Product Length: 25.8 cm
• Product Width: 11 cm
• Weight of Product: 762 g

• Note: This video splitter is not compatible with the AMD Radeon RX460 graphics card. Connect the HDMI display with the lowest resolution and refresh rate capability to output #1, If HDCP 1.4 display is connected to port #1 the whole system defaults to HDCP 1.4.

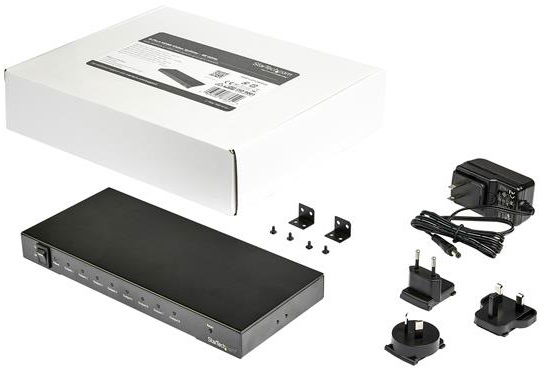

• 1x HDMI splitter
• 1x Universal power adapter (NA/JP, UK, EU, ANZ)
• 1x Set of mounting brackets
