StarTech HDMI over CAT 5e Ultra HD 4K HDBaseT Extender Kit with IR - 1x Transmitter, 1x Receiver

The HDBaseT extender kit, extends HDMI up to 330 feet (100 Meters) over a single CAT5e or CAT6 cable. The extender supports Ultra HD and Full HD resolutions (4K / 1080p) with support for 3D and the accompanying 7.1 digital audio. For added versatility the transmitter and receiver can be used to transmit IR and RS232 serial communication over the same cable. The versatility of this video extender makes it an ideal solution for digital signage applications.

What is HDBaseT?

• HDBaseT is a standardized, zero latency, video distribution technology that’s revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio and video along with additional signals such as 100BaseT Ethernet, IR, RS-232 serial and power over cable.

Extend More with HDBaseT

• The extender offers HDBaseT technology with HDMI, IR, and RS232 control in a single CAT 5 extender kit, for complete end-to-end control. Offering greater versatility than traditional HDMI extenders or HDMI cabling alone HDBaseT is the clear choice for every integrator and system designer. The IR extension enables you operate your display and an IR-enabled source device, such as a Blu-ray player or TV Set top box, from either end of your extension. While RS232 control let you to connect a serial I/O device at your display - an ideal solution for adding a serial touch screen interface to your remote display.

Astonishing Picture Quality from an Impressive Distance

• With the A/V industry quickly adopting 4K as the new high-resolution video standard, long range video distribution can be a challenge with standard HDMI cables beginning signal degradation at 30 feet.
• With support for 4K you’ll be amazed at how HDBaseT maintains your Ultra HD picture quality, four times the resolution of high-definition 1080p, even at 330 feet away from your video source. Plus, because the extender is still backward compatible with High-Definition 1080p displays and video sources, you can rest assured this extender will make your video source look great in any remote digital signage application.

Simplify Your Setup

• This extender has been specially crafted for a smooth, tidy installation. HDBaseT technology allows for single cable installation, for seamless integration using existing CAT5e or CAT6 infrastructure, avoiding the hassle of running multiple cables, while reducing potential failure points. Mounting hardware is also built-in to both the extender and receiver for discrete, professional mounting.

Hardware

• Audio: Yes
• Cabling: Cat 5 UTP or better
• Daisy-Chain: No
• Industry Standards: High Speed HDMI and HDCP compliant
• Ports: 1

Performance

• Audio Specifications: Supports Dolby TrueHD, DTS-HD MA
• IR Interface: Bi-directional, 38Khz / +/- 10 degrees / 5M
• Max Distance: 100 m / 330 ft
• Maximum Data Transfer Rate: HDMI - 3.4Gbps, RS232 - 115200bps baud
• Maximum Digital Resolutions: 4K
• Supported Resolutions: 3840x2160 (4K), 2560x1600, 1920x1200, 1920x1080 (1080p), 1280x720 (720p)
• Wide Screen Supported: Yes

Connector(s)

• Local Unit Connectors: 1 - DB-9 (9 pin, D-Sub) Female, 1 - IrDA (Infrared, SIR/FIR), 1 - RJ-45 Female, 2 - HDMI (19 pin) Female

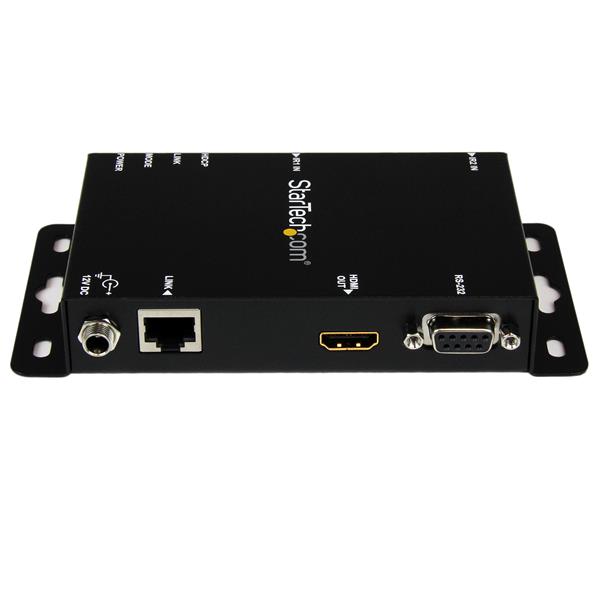

• Remote Unit Connectors: 1 - DB-9 (9 pin, D-Sub) Male, 1 - HDMI (19 pin) Female, 1 - RJ-45 Female, 2 - IrDA (Infrared, SIR/FIR)

Power

• Center Tip Polarity: Positive
• Input Current: 0.6
• Input Voltage: 110V-240V AC
• Output Current: 1.24A
• Output Voltage: 12 DC
• Plug Type: M
• Power Consumption (In Watts): 12
• Power Source: 2 AC Adapters Included

Environmental

• Humidity: 0-95%
• Operating Temperature: 0 C to 70 C
• Storage Temperature: -20 C to 85 C

Physical Specifications

• Color: Black
• Enclosure Type: Steel
• Dimensions (HxLxW): 25 x 150 x 80 mm
• Weight: 305 g

OS Compatibility

• OS Independent

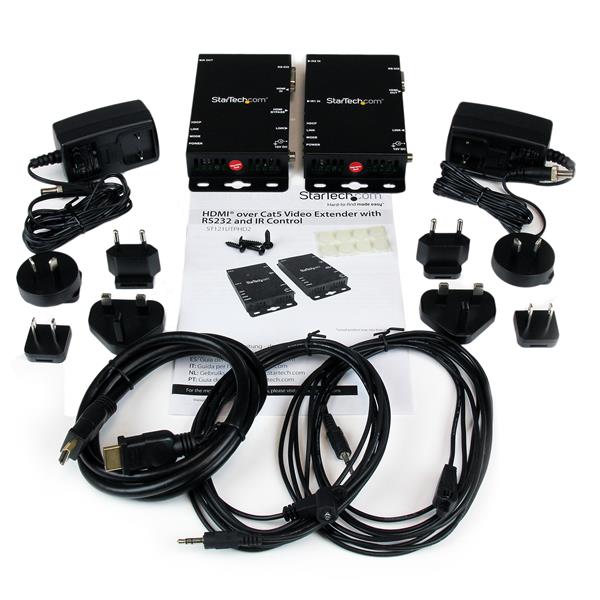

System and Cable Requirements

• 1X Standard CAT5 cable
• 1X HDMI Cable for Remote Unit (Local Cable Included)

• 1x Local HDMI Extender Unit
• 1x Remote HDMI Receiver Unit
• 1x IR Receiver Cable
• 1x IR Transmitter Cable
• 1x HDMI Cable - 4 ft (1.2 Meters)
• 2x Universal Power Adapter NA / UK / EU
• 1x User Manual
