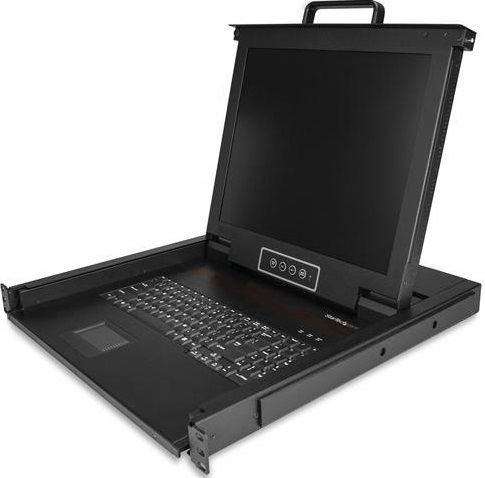

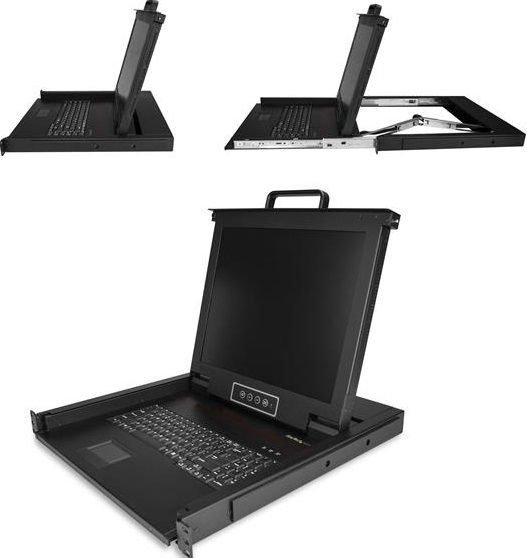

StarTech Single-Port Rackmount KVM Console with 17 Inch Display

Providing centralized control of your PC, server, or KVM switch, this single-port rackmount KVM console?gives you?easy access to?your connected system. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.

• Reduce your server room clutter with a 1U rackmount design
• Intuitive system integration with direct support for your PC or server
• Ready to use with built-in touchpad and keyboard

Hardware:

• Audio: No
• Cables Included: Yes
• Daisy-Chain: No
• Display Size: 17in
• Front Door Key Lock: No
• KVM Ports: 1
• Number of Monitors Supported: 1
• Panel Type: Active Matrix TFT LCD
• PC Interface: USB
• PC Video Type: VGA
• Rack-Mountable: Yes
• U Height: 1U

Performance:

• Aspect Ratio: 5:4
• Brightness: 250 cd/m²
• Color Depth: 8-bit, 16.7M colors
• Contrast Ratio: 1000:1
• IP Control: No
• Maximum Analog Resolutions: 1280 x 1024
• Maximum Number of Users: 1
• MTBF: 50, 000 Hrs
• Pixel Pitch Support: 0.264 x 0.264 mm
• Response Time: 5ms
• Supported Resolutions: Resolutions up to 1280 x 1024 @ 60Hz
• Viewing Angle: 170° (H), 160° (V)

Connector(s):

• Host Connectors: 1 - VGA (15 pin, High Density D-Sub) Female Input

Indicators:

• LED Indicators: 1 - Power / Status LED

Power:

• Input Current: 1.5A
• Input Voltage: 100 - 240 AC
• Power Consumption (In Watts): 13W
• Power Source: International Power Cords

Physical Characteristics:

• Color: Black
• Material: Steel
• Cable Length: 6ft
• Product Length: 47.1 cm
• Product Width: 44.8 cm
• Product Height: 4.2 cm
• Weight of Product: 11.6 kg
• Maximum Mounting Depth: 79 cm
• Minimum Mounting Depth: 45 cm

Environmental:

• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)
• Humidity: 10 ~ 80% RH (non-condensing)

• 1x KVM console
• 1x KVM cable
• 8x M5 cage nuts
• 8x M5 screws
• 5x regional power cords (NA, JP, UK, EU, ANZ)
• 2x mounting rails
• 1xquick-start guide
