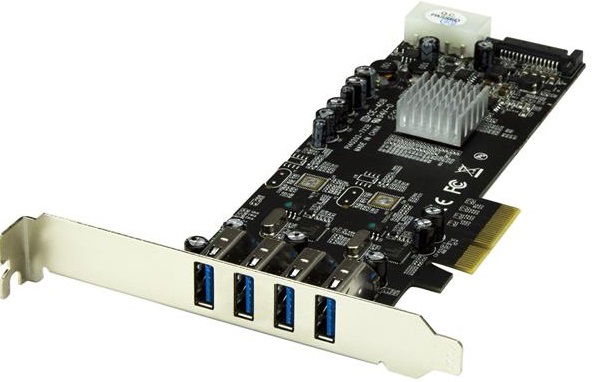

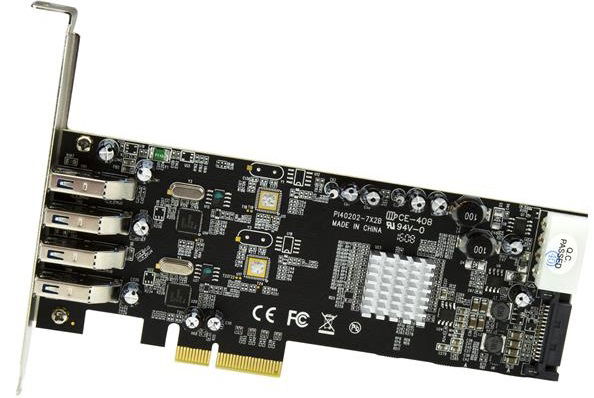

StarTech 4 Port USB 3.0 PCI Express Card with SATA/LP4 Power & UASP - 2x Dedicated 5Gbps Channels

The PEXUSB3S42V 4-Port PCI Express USB 3.0 Card lets you add four USB 3.0 ports with two dedicated 5 Gbps channels to your PCIe x4-enabled PC. This independent port architecture improves USB 3.0 performance by transferring data on two individual channels to your computer, giving you faster file transfers.

• Provides four external, USB 3.0 Ports on two independent bus channels
• Supports up to 10 Gbps total transfer bandwidth - Up to 5 Gbps per two ports
• UASP support across all four ports

Hardware:

• Bus Type: PCI Express
• Card Type: Standard Profile (LP bracket incl.)
• Chipset ID: Renesas/NEC - µPD720202
• Industry Standards: USB 3.0 Specification Rev. 1.0, PCI Express Base Specification Rev. 2.0, Intel xHCI Specification Rev. 1.0
• Interface: USB 3.0
• Port Style: Integrated on Card
• Ports: 4

Performance:

• Maximum Cable Length: 3 m
• Maximum Data Transfer Rate: 5 Gbps per 2 ports - 10Gbps Total
• Type and Rate: USB 3.0 - 5 Gbit/s
• UASP Support: Yes

Conector(s):

• Connector Type(s): 1 - PCI Express x4 Male
• External Ports: 4 - USB Type-A (9 pin) USB 3.0 Female
• Internal Ports: 1 - SATA Power (15 pin) Plug, 1 - LP4 (4 pin; Large Drive Power) Male

• OS Compatibility: Windows XP, Vista, 7, 8, 8.1, 10, Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019, Linux 2.6.31 to 4.11.x LTS Versions only
• System and Cable Requirements: Available PCI Express x4 or greater slot

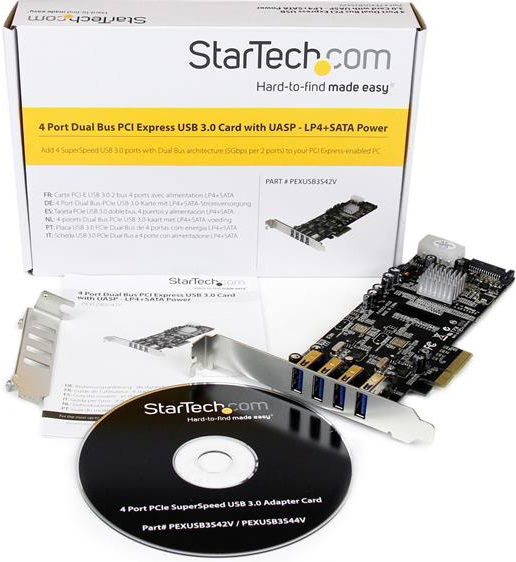

• 1x 4 Port PCIe USB Card
• 1x Low Profile Bracket
• 1x Driver CD
• 1x Instruction Manual
