StarTech PEX1S1P952 2 Port Native PCI Express Parallel Serial Combo Card with 16950 UART

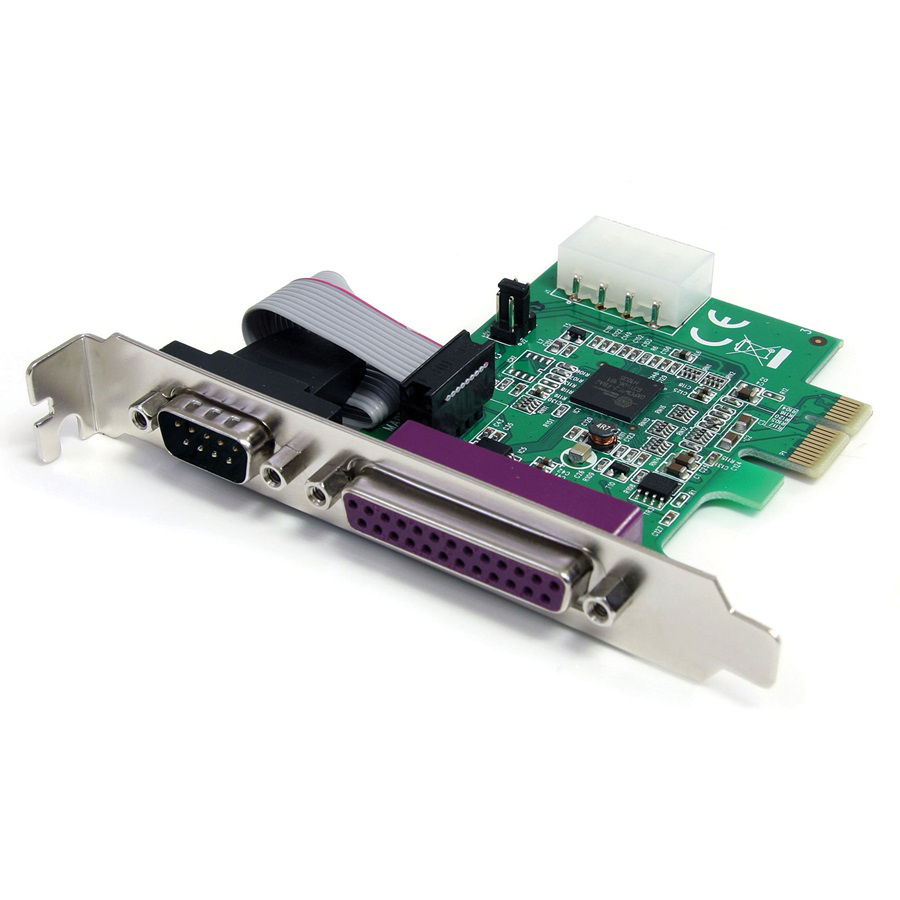

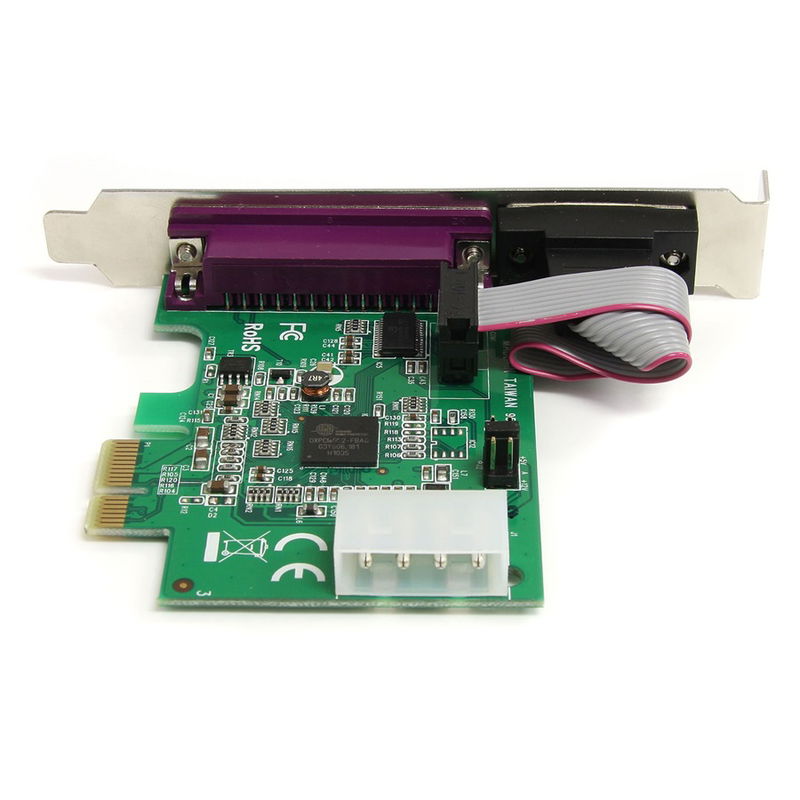

The PEX1S1P952 1S1P Native PCI Express Parallel/Serial Combo Card with 16950 UART turns a PCI Express slot into 1 RS232 (DB9) serial, and 1 parallel port.

• The combo card features a native PCI Express single chip design that allows you to take advantage of full PCI Express capability, providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional serial cards that use a bridge chip design.
• This 1-Port Serial/1-Port Parallel card offers compatibility with a broad range of operating systems including Windows® (32/64-bit) and Linux, for easy integration into mixed environments. The card also features an optional low profile/half-height bracket that enables you to install the card in virtually any computer case, regardless of form factor.
• Backed by a StarTech.com Lifetime warranty and free lifetime technical support.

Connector(s):

• Connector Type(s): 1 - PCI Express x1
• External Ports: 1 - DB-9 (9 pin, D-Sub), 1 - DB-25 (25 pin, D-Sub)

Environmental:

• Operating Temperature: -10°C to 80°C (14°F to 176°F)
• Storage Temperature: -20°C to 100°C (-4°F to 212°F)
• Humidity: 5~85% RH

Hardware:

• Ports: 2
• Interface: Parallel, Serial
• Bus Type: PCI Express
• Card Type: Standard Profile (LP bracket incl.)
• Port Style: Integrated on Card
• Industry Standards: PCI Express base spec 1.1, PCI Power Management 1.2, IEEE 1284-compliant SPP/EPP/ECP
• Chipset ID: PLX/Oxford - OXPCIe952

Performance:

• Maximum Data Transfer Rate: 1.5Mbps - Parallel, 115.2Kbps - Serial
• Serial Protocol: RS-232
• Data Bits: 5, 6, 7, 8, 9
• FIFO: 128 Bytes
• Flow Control: Automated in-Band, Xon/Xoff
• Parity: Even, Odd, Mark, Space, None
• Stop Bits: 1, 1.5, 2
• MTBF: 87,600 Hours

Power:

• Power Consumption (In Watts): 0.2W

Physical Characteristics:

• Dimensions (L x W x H):
• Weight: 64 g

• Compatibility: Windows CE 6.0 / 5.0, 95, 98SE, 2000, XP, XP Embedded, Vista, 7, 8, 8.1, 10, 11; Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019; Linux 2.4.x to 4.11.x LTS Versions only

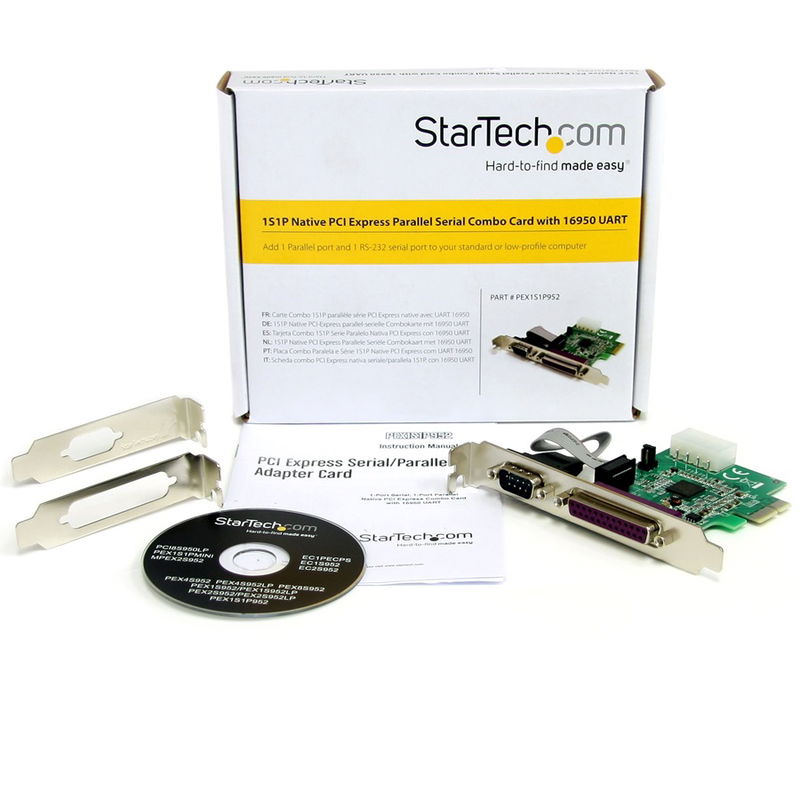

• 1 - 1S1P PCI-Express Serial Parallel Combo Card
• 2 - Low Profile Brackets
• 1 - Driver CD
• 1 - Instruction Manual
