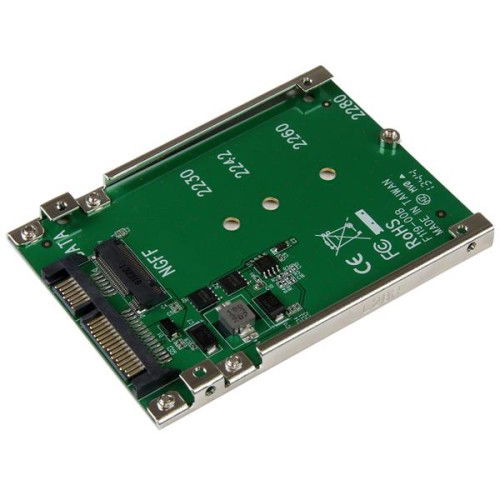

StarTech M.2 to SATA Internal Drive Bay Adapter

Vastly increase system performance by adding the speed of an M.2 SSD in any 2.5" SATA application, with the SAT32M225 M.2 SSD to SATA adapter. Utilise the full potential of your SATA III controller, with an M.2 SSD reducing your data transfer bottleneck with file transfer speeds up to 6 Gbps. M.2 SSDs can also save you money by reducing your power consumption over regular platter drives. Help protect the health of your drive with an open-frame design that maximises heat dissipation.

• Open-frame steel mounting bracket
• Supports 7mm or larger 2.5" SATA bays
• Supports B key M.2 SSDs
• Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
• 2.5in SATA form factor housing
• Supports full length M.2 SSD Solid State Drives (2230, 2242, 2260, 2280)
• Not compatible with M.2 NVMe or AHCI PCI-Express SSDs

Hardware:
• Compatible Drive Types: M.2 (SATA, B-Key, NGFF)
• Drive Installation: Fixed
• Interface: SATA
• Number of Drives: 1
• Supported Drive Height(s): 2230, 2242, 2260, 2280

Performance:
• General Specifications: Not compatible with M.2 NVMe or AHCI PCI-Express SSDs
• Hot Swap Capability: No
• Maximum Data Transfer Rate: 6 Gbps
• Type and Rate: SATA III (6 Gbps)

Connections:
• Drive Connectors: 1 - M.2 (SATA, B-Key, NGFF) Receptacle
• Host Connectors: 1 - SATA Data & Power Combo (7+15 pin) Receptacle

Environmental:
• Operating Temperature: -40°C to 85°C

Physical Specifications:
• Dimensions (HxLxW): 7 x 100 x 70 mm
• Weight: 36 g

OS independent; No software or drivers required

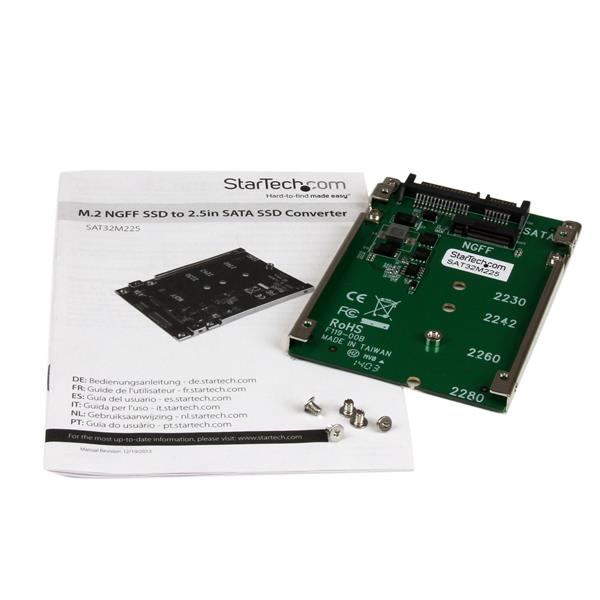

• 1 - M.2 NGFF SSD to 2.5in SATA SSD Converter
• 1 - Mounting screw kit
• 1 - Installation manual
