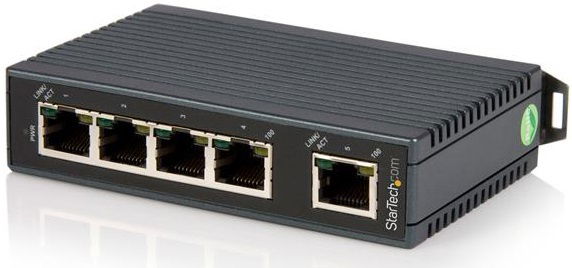

StarTech 5 Port 10/100 Ethernet DIN Rail Mountable Industrial Switch

This compact 5-port industrial Ethernet switch is engineered to deliver fast, reliable network connectivity and durability in the most demanding industrial environments. It provides top performance in a wider range of operating temperatures than conventional network switches, making it ideal for factories and warehouses.

Conquer the tough demands of industrial environments

• Designed with a rugged IP30-rated housing, the network switch delivers maximum performance even in harsh industrial conditions. Its wide-range terminal block input gives you the flexibility to power the switch as required, based on your own power input source, while its wide operating temperature range keeps your network running smoothly.

Get up and running in no time

• This industrial Ethernet switch is easy to install, with an attached metal bracket for DIN rail mounting on equipment racks and cabinets. Now you can eliminate the hassle of troubleshooting mismatched speed and duplex settings. This switch gives you full/half-duplex auto-negotiation and auto MDI/MDIX operation, enabling you to connect your network devices quickly and easily with little to no configuration required.

Reduce your energy costs with Energy-Efficient Ethernet

• With lower overall power consumption, the Ethernet switch enhances your energy efficiency, in turn helping you reduce monthly costs.

Hardware:

• Industry Standards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3az (Energy-Efficient Ethernet), IEEE 802.1P Quality of Service (QoS)
• Interface: RJ45 (10/100 Ethernet)
• Ports: 5
• Regulatory Approvals: EN61000-6-2, EN61000-6-4, EN61000-4-3 (Radiated RFI Standards), EN61000-4-4 (Burst Standards), EN61000-4-6 (Induced RFI Standards), EN61000-4-8 (Magnetic Field Standards), IEC60068-2-6 Fc (Vibration), IEC60068-2-27 Ea (Shock)

Performance:

• Auto MDIX: Yes
• Buffer Size: 56 KB
• Compatible Networks: 10/100 Mbps
• Flow Control: IEEE 802.3x Full-Duplex
• Full Duplex Support: Yes
• Jumbo Frame Support: No
• Maximum Cable Length: 100 m
• Maximum Data Transfer Rate: 200 Mbps (Full-Duplex)
• MTBF: 1,179,133 Hours
• Surge Protection: ESD: EN61000-4-2, Surge: EN61000-4-5
• Switching Architecture: Store-and-Forward

Connector(s):

• External Ports: 5 - RJ-45 Female, 1 - Terminal Block (3 Wire)

Indicators:

• LED Indicators: 1 - Power, 5 - Link/Activity, 5 - Activity (100 Mbps)

Power:

• Input Voltage: 12 ~ 48 DC
• Power Consumption (In Watts): 2.12W Max

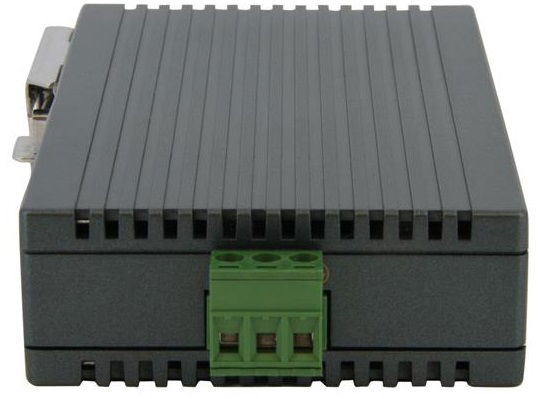

• Power Source: Terminal Block

Environmental:

• Humidity: 5~95% RH (Non-Condensing)
• Operating Temperature: -10°C to 60°C (14°F to 140°F)
• Storage Temperature: -25°C to 85°C (-13°F to 185°F)

Physical Characteristics:

• Color: Black
• Material: Plastic
• Product Height: 11 cm
• Product Length: 70 mm
• Product Width: 25 mm
• Weight of Product: 150 g

OS Compatibility OS Independent; No additional drivers or software required

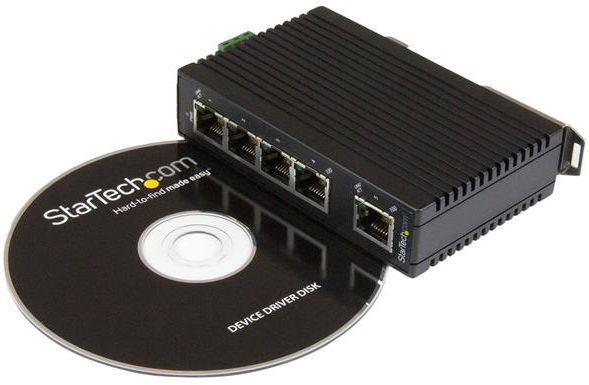

• 1x 5 Port Ethernet Switch (w/ Attached DIN Rail Bracket)
• 1x Terminal Block
• 1x Instruction Manual CD
