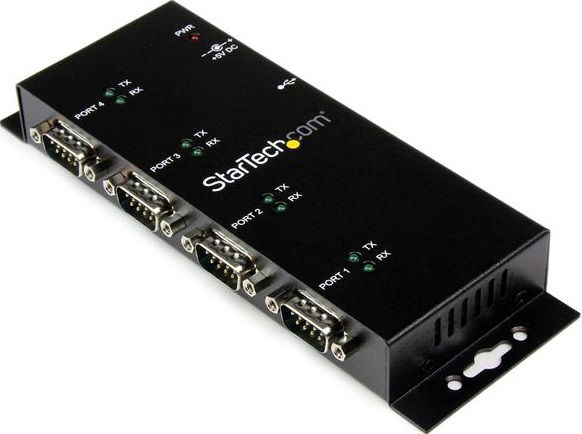

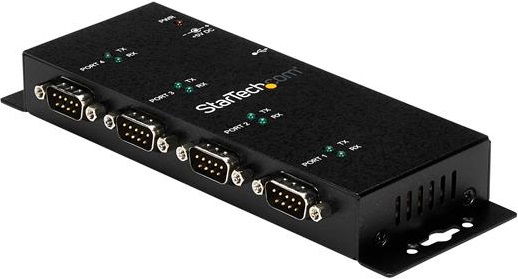

StarTech USB to 4 Port DB9 RS232 Serial Industrial Wall Mountable Adapter Hub
The ICUSB2324I 4-Port Industrial USB to Serial Hub with DIN Rail Clips converts a single USB port into four RS232 serial ports, enabling you to connect to, monitor and control your serial devices.
Features:
• 4-port USB to RS232 serial adapter
• Rugged metal construction
• Wall-mountable, with included DIN Rail clips
• COM retention: COM Port assignments maintained across reboot
• Baud Rate up to 921.6 Kbps
• Rugged metal construction
• Wall-mountable, with included DIN Rail clips
• COM retention: COM Port assignments maintained across reboot
• Baud Rate up to 921.6 Kbps
Specifications:
Hardware:
• Bus Type: USB 2.0
• Chipset ID: FTDI - FT4232HL
• Interface: Serial
• Port Style: External Hub
• Ports: 4
Performance:
• Data Bits: 7, 8
• FIFO: 256 Bytes
• Max Baud Rate: 921.6 Kbps
• Maximum Data Transfer Rate: 921.6Kbps
• MTBF: 282713.5 hours
• Parity: Odd, Even, Mark, Space, None
• Serial Protocol: RS-232
• Stop Bits: 1, 2
Connector(s):
• Connector Type(s): 1 - USB B (4 pin) Female, 4 - DB-9 (9 pin, D-Sub) Male
Indicators:
• LED Indicators: 4 - Each, Tx/Rx Activity indicators
Power:
• Plug Type: M
• Power Source: USB-Powered
• Input Voltage: 5V DC
Environmental:
• Humidity: 5~95% RH
• Operating Temperature: 0°C to 55°C (32°F to 131°F)
• Storage Temperature: -20°C to 85°C (-4°F to 185°F)
Physical Characteristics:
• Color: Black
• Material: Steel
• Product Height: 2.3 cm
• Product Length: 17.8 cm
• Product Width: 5.9 cm
• Weight of Product: 300 g
• Bus Type: USB 2.0
• Chipset ID: FTDI - FT4232HL
• Interface: Serial
• Port Style: External Hub
• Ports: 4
Performance:
• Data Bits: 7, 8
• FIFO: 256 Bytes
• Max Baud Rate: 921.6 Kbps
• Maximum Data Transfer Rate: 921.6Kbps
• MTBF: 282713.5 hours
• Parity: Odd, Even, Mark, Space, None
• Serial Protocol: RS-232
• Stop Bits: 1, 2
Connector(s):
• Connector Type(s): 1 - USB B (4 pin) Female, 4 - DB-9 (9 pin, D-Sub) Male
Indicators:
• LED Indicators: 4 - Each, Tx/Rx Activity indicators
Power:
• Plug Type: M
• Power Source: USB-Powered
• Input Voltage: 5V DC
Environmental:
• Humidity: 5~95% RH
• Operating Temperature: 0°C to 55°C (32°F to 131°F)
• Storage Temperature: -20°C to 85°C (-4°F to 185°F)
Physical Characteristics:
• Color: Black
• Material: Steel
• Product Height: 2.3 cm
• Product Length: 17.8 cm
• Product Width: 5.9 cm
• Weight of Product: 300 g
Requirements:
OS Compatibility:
• Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11
• Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
• macOS 10.6 to 10.15, 11.0, 12.0, 13.0, 14.0
• Linux 2.4.x and up - LTS Versions only
• Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11
• Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
• macOS 10.6 to 10.15, 11.0, 12.0, 13.0, 14.0
• Linux 2.4.x and up - LTS Versions only

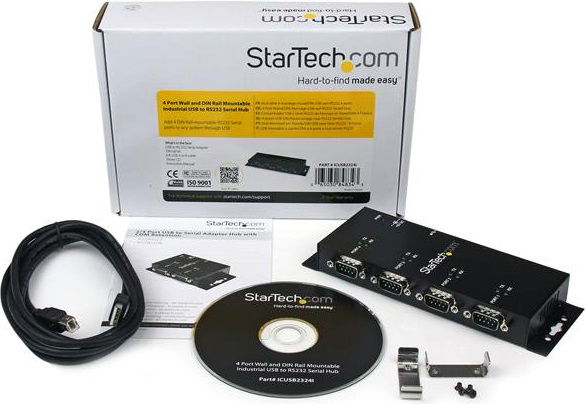

Package Contents:
• 1x USB to RS-232 Serial Adapter
• 1x DIN rail kit
• 1x 6 ft USB A to B cable
• 1x Driver CD
• 1x Instruction Manual
• 1x DIN rail kit
• 1x 6 ft USB A to B cable
• 1x Driver CD
• 1x Instruction Manual
Featured Video:
Additional Details:
-
Stock Availability: 17 In Stock Now
-
Warranty: 2 Years
-
Manufacturer: StarTech Shop
-
Product Found In: Serial & Parallel Cables
-
Model Number: ICUSB2324I
-
Part Number: DD012058
