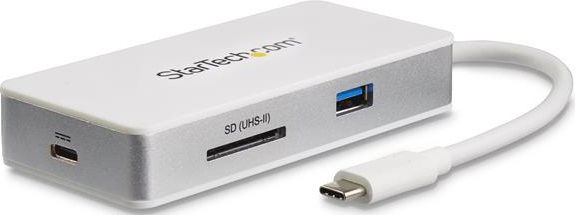

StarTech USB-C MultiPort Adapter Dock with Power Delivery - USB-C, HDMI, RJ-45, USB Type-A, SD Card Reader

Expand the connectivity of your Thunderbolt 3/USB-C port enabled laptop. Compatible with Mac and Windows, this universal USB-C multiport adapter lets you turn your laptop into a powerful workstation, anywhere you go. The USB-C adapter provides a 4K Ultra HD HDMI video output, an ultra high-speed SD 4.0 card reader (with UHS-II support), a USB 3.0 Type-A port and one Gigabit Ethernet port, through your laptop’s USB-C port.

Connect a 4K Ultra HD monitor

• The USB-C multiport adapter offers a 4K Ultra HD HDMI port (with audio), so you can easily connect a high-resolution monitor (4096 x 2160p @ 24Hz or 3840 x 2160p @ 30Hz).

Fast SD card access

• The USB-C multiport adapter features a memory card slot, providing fast read and write access for SD and microSD (with adapter) memory cards through USB 3.0. The card reader offers SD 4.0 and UHS-II support, allowing high-speed file transfers at up to 312MB/s. It’s ideal for transferring photos or videos from your SD cards to your USB-C enabled laptop or tablet.

The ports you need most

• The Gigabit Ethernet port on the multiport adapter ensures reliable wired network access. Plus, an additional USB 3.0 port (USB Type-A) lets you connect a peripheral device like your mouse or flash drive.

Hardware:

• 4K Support: Yes
• Bus Type: USB-C
• Chipset ID: VIA/VLI - VL813, VIA/VLI - VL101, PS176 (HDMI 2.0), RTS5329, RTL8153
• Displays Supported: 1
• Fast-Charge Port(s): No
• Industry Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, USB 3.0 - Backward compatible with USB 2.0 and 1.1

Performance:

• Auto MDIX: Yes
• Compatible Networks: 10/100/1000 Mbps
• Full Duplex Support: Yes
• General Specifications: Supports SD 4.0 and UHS-II (Ultra High Speed) for high speed file transfers, with bus speed up to 312MB/s
• Maximum Data Transfer Rate: 5 Gbps (USB 3.0), 2 Gbps (Ethernet; Full-Duplex)
• Maximum Digital Resolutions: 4096 x 2160p @ 24Hz or 3840 x 2160p (HDMI) @ 30Hz, Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.
• Memory Media Type: SD/MMC (Secure Digital/Multimedia Card), SDHC (Secure Digital High Capacity), SDXC (Secure Digital eXtended Capacity), microSD (Micro Secure Digital) (adapter required), microSDHC (Micro Secure Digital High Capacity) (adapter required), microSDXC (Micro Secure Digital eXtended Capacity) (adapter required)
• Type and Rate: USB 3.0 - 5 Gbit/s
• UASP Support: Yes

Connector(s):

• Connector Type(s): 1 - USB Type-C (24 pin) USB 3.0 (5Gbps) Male, 1 - HDMI (19 pin) Female, 1 - RJ-45 Female, 1 - USB Type-A (9 pin) USB 3.0 Female, 1 - SD / MMC Slot Female, 1 - USB-C (24 pin) USB Power Delivery only Female

Power:

• Power Delivery: 100W
• Power Source: USB-Powered

Environmental:

• Humidity: 20~80% RH
• Operating Temperature: 5?C to 35?C (41°F to 95°F)
• Storage Temperature: -20°C to 50°C (-4°F to 122°F)

Physical Characteristics:

• Cable Length: 150 mm
• Color: Silver & White
• Material: Aluminum and Plastic

• OS Compatibility: Windows 7, 8, 8.1, 10, Mac OS 10.11 to 10.15, Chrome OS.
• System and Cable Requirements: A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 and DP alt mode). Optional: USB-C power adapter (for example, your laptop’s USB-C based power adapter).
• Note: Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 and DP alt mode. The adapter can connect to a host laptop’s USB-C port that doesn’t support USB Power Delivery 2.0. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop. A 4K-capable display is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K). USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps. Your laptop might have specific charging requirements. For example, if your laptop requires exactly 60W of power and an adapter consumes some of the 60W, your laptop might not recognize that it is getting enough power. For more information about Power Delivery, refer to the manufacturer of your hardware.

• 1x USB-C multiport adapter
• 1x Quick-start guide
