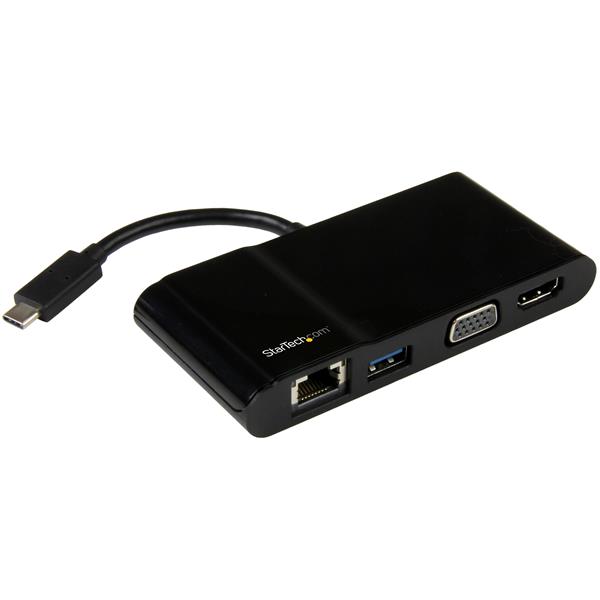

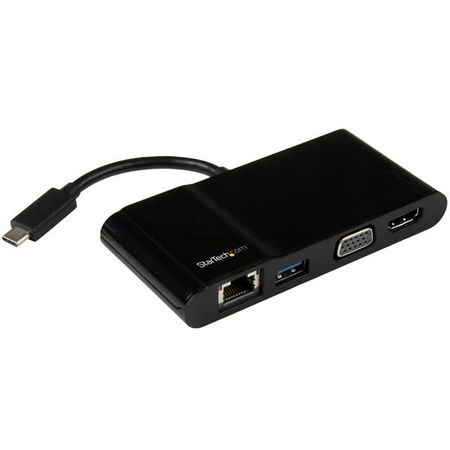

StarTech USB-C 4K Travel Dock - HDMI, VGA, RJ-45, USB Type-A

This USB-C multiport adapter for laptops changes the way you work when you’re on the move. It lets you create a workstation when you travel, and it’s one of the first multiport adapters to integrate a USB Type-C host connection. Now, you can create a permanent or temporary workstation virtually anywhere you go.

• Expand the connectivity of your MacBook Pro, Chromebook, Dell XPS, or other USB-C enabled laptop
• 4-in-1 multiport adapter provides 4K Ultra HD (3840 x 2160p) HDMI or VGA video output, a USB 3.0 port, and a Gigabit Ethernet port
• Sleek, compact and durable housing for portability
• One additional USB 3.0 Type-A port lets you connect your existing USB devices (backward compatible with USB 2.0 and 1.x devices)
• Thunderbolt 3 port compatible
• Gigabit Ethernet RJ45 port supports Wake-on-LAN (WOL), jumbo frames, VLAN tagging, and Energy-Efficient Ethernet
• setup with native support in most Windows and Mac operating systems (also works with Google Chrome OS)

Hardware

• 4K Support: Yes (only via HDMI connection)
• Bus Type: USB-C
• Chipset ID: Cypress - CYPD2122 (CC Logic), Cypress - CYUSB3314 (USB 3.0), STMicroelectronics - STDP2650 (HDMI), Chrontel - CH7517 (VGA), ASIX - AX88179 (LAN)
• Displays Supported: 1
• Fast-Charge Port(s): No
• Industry Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, USB 3.0 - Backward compatible with USB 2.0 and 1.1

Performance

• Auto MDIX: Yes
• Compatible Networks: 10/100/1000 Mbps
• Full Duplex Support: Yes
• Maximum Analog Resolutions: 2048 x 1280p - 30Hz (VGA)
• Maximum Data Transfer Rate: 5 Gbps (USB 3.0), 2 Gbps (Ethernet; Full-Duplex)
• Maximum Digital Resolutions: 3840 x 2160p - 30Hz (HDMI)
• Type and Rate: USB 3.0 - 5 Gbit/s
• UASP Support: Yes

Connector(s)

• 1x USB Type-C (24 pin) USB 3.0 Male
• 1x HDMI (19 pin) Female
• 1x VGA (15 pin, High Density D-Sub) Female
• 1x RJ-45 Female
• 1x USB Type-A (9 pin) USB 3.0 Female

Power

• Power Source: USB-Powered

Environmental

• Humidity: 5~95% RH (Non-condensing)
• Operating Temperature: 5 C to 35 C
• Storage Temperature: -40 C to 70 C

Physical Specifications

• Cable Length: 105 mm
• Color: Black
• Enclosure Type: Plastic
• Dimensions (HxLxW): 17 x 114 x 54 mm
• Weight: 72 g

OS Compatibility

• Windows 7, 8, 8.1, 10
• Mac OS 10.10 to 10.12
• Chrome OS

Special Notes / Requirements

• Note: macOS 10.12.6 or later is required for your MacBook to support this product.
• Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your laptop USB-C port supports DP alt mode.
• Only one video output port can be used at the same time (HDMI or VGA). If two displays are connected, the HDMI port takes priority.
• A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K).
• USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.

System and Cable Requirements

• Host laptop with an available USB-C port (to ensure full functionality, the laptop's USB-C port must support DP alt mode).

• USB-C multiport adapter
• Instruction manual
