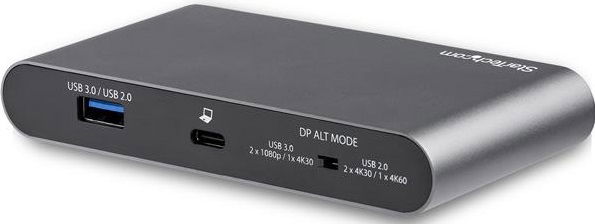

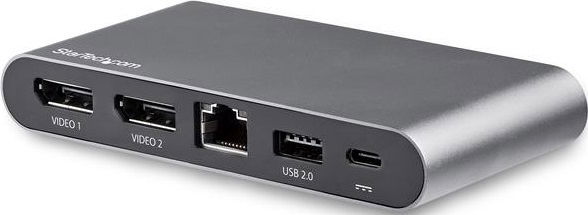

StarTech USB-C Dual Monitor Docking Station with Power - 2x DisplayPort, 1x USB-C, 2x USB Type-A, 1x RJ-45

Transform your Windows laptop into a dual monitor workstation using this USB-C docking station. It offers support for dual DisplayPort monitors, 2 USB-A peripherals, a LAN port for GbE network access and an extended 1-meter host cable.

DisplayPort Alternate Mode to Choose Your Video Display Output

• Achieve dual 1080p up to a single 4K 60Hz display using the DisplayPort Alternate Mode (DP Alt-Mode) configuration switch.

Reliable 100W Power Delivery Passthrough

• The USB-C multiport adapter uses your USB-C laptop’s power adapter and can provide up to 100W Power Delivery (3.0) pass through with up to 85W for your host device for charging. The remaining wattage will power the docking station along with any attached USB-A peripherals such as smartphones and tablets.

Multi-Stream Transport for Driverless Displays

• The multi-stream transport technology (MST) in this dock powers two DisplayPort monitors with no driver installation required so you are up and running faster.

Comprehensive Product Testing & Expert Technical Support

• StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have a broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.

Hardware:

• 4K Support: Yes
• Bus Type: USB-C
• Chipset ID: VIA/VLI - VL102, VIA/VLI - VL170, VIA/VLI - VL817, MegaChips - STDP4320, RealTek - RTL8153
• Displays Supported: 2
• Fast-Charge Port(s): No
• Industry Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, USB 3.0 - Backward compatible with USB 2.0 and 1.1

Performance:

• Auto MDIX: Yes
• Full Duplex Support: Yes
• Maximum Data Transfer Rate: 5 Gbps (USB 3.0), 2 Gbps (Ethernet; Full-Duplex)
• Maximum Digital Resolutions: Dual DisplayPort displays: Up to 4096 x 2160p @ 24Hz or 3840 x 2160p @ 30Hz. Single DisplayPort display: Up to 4096 x 2160p @ 60Hz or 3840 x 2160p @ 60Hz. Single UltraWide DisplayPort display - Up to 3440 x 1440p @ 60 Hz. Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.
• Type and Rate: USB 3.0 - 5 Gbit/s
• UASP Support: Yes

Connector(s):

• Connector Type(s): 1 - USB Type-C (24 pin) USB 3.0 (5Gbps) Male, 1 - USB-C (24 pin) USB Power Delivery only Female, 2 - DisplayPort (20 pin) Female, 1 - RJ-45 Female, 1 - USB Type-A (9 pin) USB 3.0 Female, 1 - USB Type-A (4 pin) USB 2.0 Female

Power:

• Laptop Charging via Power Delivery: 85W
• Power Consumption (In Watts): 15W
• Power Delivery: 100W
• Power Source: Bus Powered and Host USB-C Power Adapter

Physical Characteristics:

• Color: Black
• Material: Plastic

• OS Compatibility: Windows 7, 8, 8.1, 10
• System and Cable Requirements: A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 or PD 3.0 and DP alt mode). Optional: USB-C power adapter (for example, your laptop’s USB-C based power adapter).
• Note: For a dual-monitor configuration the host laptop must support MST. Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 or 3.0 and DP alt mode. The adapter can connect to a host laptop’s USB-C port that doesn’t support USB Power Delivery 2.0 or 3.0. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop. The multiport adapter provides limited Chrome support (no MST support; Ethernet only when using bus power). The multiport adapter provides limited Android support (no MST support). A 4K-capable display is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K). Video output capabilities are dependent on the video card and hardware specification of your connected laptop. USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps. Your laptop may have specific requirements for charging. This USB-C multiport adapter supports USB Power Delivery 3.0, up to 100W. When using your laptop’s USB-C power adapter, the multiport adapter powers both the adapter (with attached peripherals) and your laptop - with up to 85W charging available for laptop charging. For more information on your laptop’s charging requirements, refer to the manufacturer of your laptop. Through support of USB Power Delivery?3.0, the multiport adapter supports Fast Role Swap which prevents USB data disruption when?you?unplug?to?switch?power sources (USB-C?power adapter to?bus power). In USB 3.0 mode, the maximum Ethernet speed is 1000 Mbps. In USB 2.0 mode, the maximum Ethernet speed is 100 Mbps.

• 1x Multiport Adapter

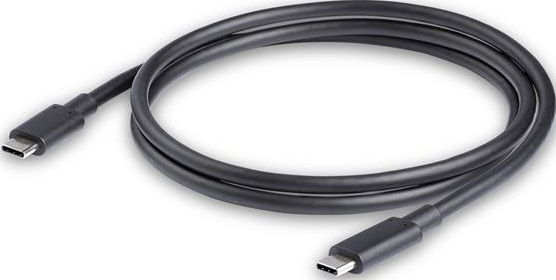

• 1x USB-C Cable
• 1x Quick-Start Guide
