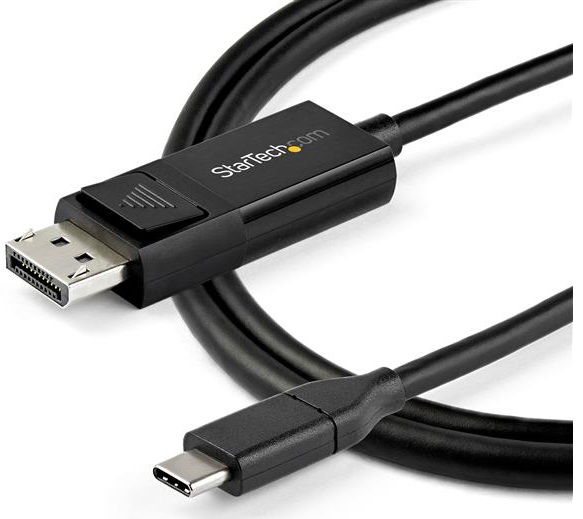

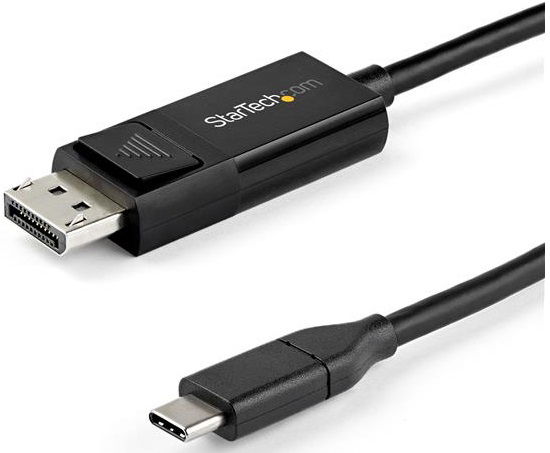

StarTech 1m Bi-Directional USB-C to DisplayPort 1.4 Active Adapter Cable

This USB-C to DisplayPort 1.4 cable lets you connect your USB Type-C (or Thunderbolt 3) device to a DisplayPort display, or a DP device to a USB-C display with just one cable.

Unparalleled Performance with Support for 8K 30Hz

• Supporting four times the resolution of 4K, this 8K DP 1.4 adapter cable delivers the stunning quality of UHD at resolutions up to 7680×4320, and also features HBR3 functionality, providing a bandwidth of up to 32.4Gbps. The video cable is backward compatible with 4K and 1080p displays, which makes it a great accessory for home, office or other work environments, while future-proofing for 8K implementation.

Easy & Clutter-Free Installation

• At 3.3 ft. (1 m) in length, this?bi-directional adapter cable delivers a compact?connection that eliminates excess adapters and cabling,?ensuring?a tidy, professional installation. For longer installations, we also offer a 6.6 ft. (2 m) USB-C?to DP?cable, enabling you to choose the right cable length for your custom installation needs.

Convenient, Bi-Directional Support

• Use this USB-C to DisplayPort adapter cable to output 8K video and audio to a DP display from the USB Type-C (or Thunderbolt 3) port on your laptop or mobile device. With bi-directional capabilities, this cable can also connect your DisplayPort-enabled devices to a display featuring USB-C input. For added convenience, the cable supports both Mac & Windows operating systems.

Hardware:

• Active or Passive Adapter: Active
• Audio: Yes
• AV Input: USB-C, DisplayPort - 1.4
• AV Output: DisplayPort, USB-C
• Chipset ID: Chrontel - CH7213C-BF, Texas Instruments - TUSB544, VIA Labs - VL170

Performance:

• Audio Specifications: DisplayPort - 7.1 Channel Audio, USB-C - 7.1 Channel Audio
• Bandwidth: HBR3
• Maximum Digital Resolutions: DisplayPort: 7680x4320 (8K) / 30Hz, USB-C: 7680x4320 (8K) / 30Hz
• Video Revision: DisplayPort 1.4
• Wide Screen Supported: Yes

Connector(s):

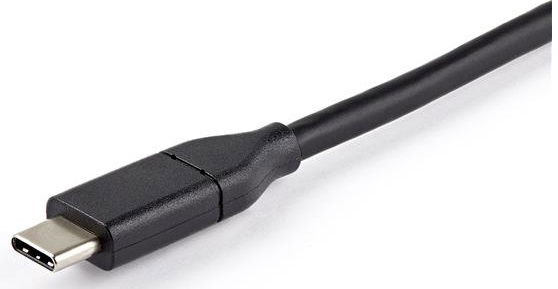

• Connector A: 1 - USB-C (24 pin) DisplayPort Alt Mode Male Input, 1 - Thunderbolt 3 USB-C (24-pin) (40Gbps) Male Input
• Connector B: 1 - DisplayPort (20 pin) Male Output

Physical Characteristics:

• Color: Black
• Material: Plastic
• Height: 1 cm [0.4 in]
• Length: 97.0 cm [38.2 in]
• Width: 2.2 cm [0.9 in]
• Weight: 46 g [1.6 oz]

• System and Cable Requirements: Your USB-C device must support DisplayPort Alt Mode to work with this cable. To achieve 8K resolutions, your source and your destination must support DisplayPort 1.4

• 1 m USB-C to DisplayPort 1.4 Bi-Directional Adapter Cable
