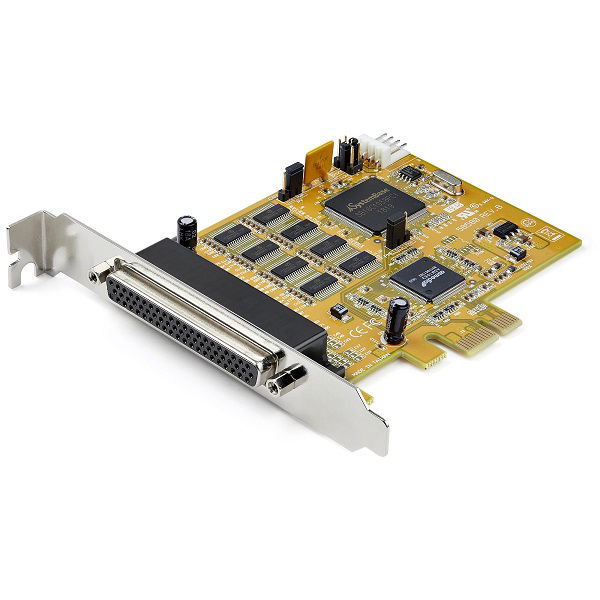

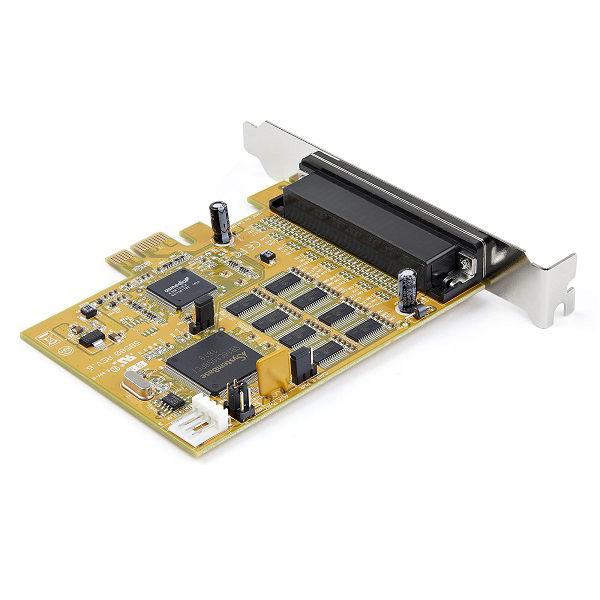

StarTech 8 Port PCI Express RS232 Serial Adapter Card with 16C1050 UART

Add eight RS-232 DB9 serial ports to your desktop computer, through a PCIe expansion card slots. This PCI express serial card, with 8-port breakout cable, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps.

Connect your Peripherals with 8 Serial Ports:
The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls, and more. The 8-port PCIe serial card includes a breakout cable - with 8 DB9 connectors.

Maximum Compatibility:
With broad OS support, including Windows and Linux, this PCI Express card is easy to integrate into mixed environments.

Connector(s):

• Connector Type(s): 1 - PCI Express x1
• External Ports: 8 - DB-9 (9 pin, D-Sub)

Environmental:

• Operating Temperature: 0°C to 55°C (32°F to 131°F)
• Storage Temperature: -40°C to 75°C (-40°F to 167°F)
• Humidity: 5~95% RH

Hardware:

• Ports: 8
• Interface: Serial
• Bus Type: PCI Express
• Card Type: Standard Profile
• Port Style: Dongle (Included)
• Industry Standards: 16C1050 UART
• Chipset ID: ASMedia - ASM1083, System Base - SB16C1058PCI

Performance:

• Serial Protocol: RS-232
• ESD Protection: +/-15kV (Air), +/-8kV (Contact)
• Max Baud Rate: 921.6 Kbps
• Data Bits: 5, 6, 7, 8
• FIFO TX: 1-255 Byte
• FIFO RX: 1-255 Byte
• Flow Control: Software (XON/XOFF), Hardware (RTS/CTS), and Xoff Re-Transmit function
• Parity: None, Even, or Odd
• Stop Bits: 1, 1.5, 2
• General Specifications: Power on Pin 9: 12V DC, 5V DC or None
• MTBF: 160,013 hours

Physical Characteristics:

• Color: Yellow
• Product Height: 12.0 cm
• Product Length: 10.5 cm
• Weight of Product: 74.0 g
• Product Width: 1.6 cm
• Material: Steel
• Cable Length: 48 cm

Power:

• Input Voltage: 12V DC

OS Compatibility:

• Windows CE 5.0, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11
• Windows Server 2003, 2008 R2, 2012, 2016, 2019, 2022

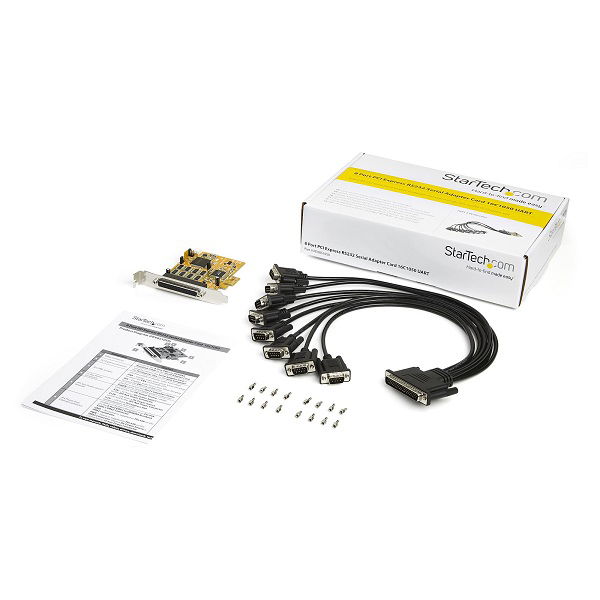

• 1 - PCIe Serial Card
• 1 - 18 in [48 cm] DB62 to 8 Port DB9 Breakout Cable
• 1 - Full Profile Bracket (Installed)
• 1 - Quick Start Guide
• 8 - Optional DB9 Connector Hex Nut Pairs
