StarTech 4 Port Dual-Monitor Dual-Link DVI KVM Switch with USB 3.0 Hub

This TAA compliant 4-port dual-monitor Dual-Link DVI USB KVM switch controls up to four PCs, each with two dual-link DVI video outputs. The switch also shares one microphone, one set of speakers, one keyboard and one mouse, across the four connected computers and features an additional built-in 2 port USB hub.

Integrated USB 3.0 Hub

• The 2-port USB 3.0 hub built into the KVM switch lets you share two additional peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected. With support for USB 3.0, you can achieve data transfer rates up to 5Gbps ensuring flawless performance from your USB peripherals - great for quickly transferring data to and from external USB 3.0 drives.

Full Multimedia Support

• With support for separate stereo audio and microphones, the KVM switch box connects everything you need to your systems, saving you money and desk space.

Easy to Operate

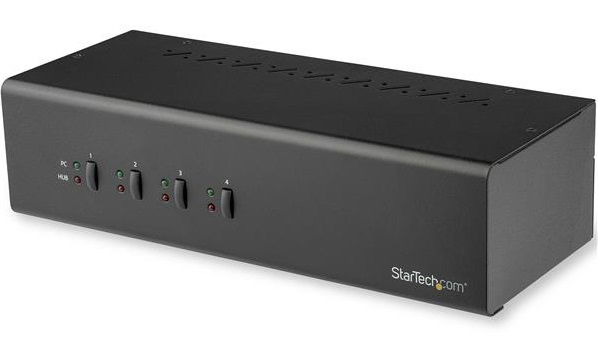

• The front-panel push-buttons make it easy to switch between systems and activate the auto scan. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.
• StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently, without the expense and clutter of extra keyboards, mice, and monitors.

Hardware:

• Audio: Yes
• Cables Included: No
• Daisy-Chain: No
• Industry Standards: USB 3.0
• KVM Ports: 4
• Number of Monitors Supported: 2
• PC Interface: USB 3.0
• PC Video Type: DVI
• Rack-Mountable: No

Performance:

• Audio Specifications: 2-channel stereo
• Auto Scan: 3, 8, 15 & 30 seconds
• DVI Support: Yes - Dual Link
• Hot-Key Selection: Yes
• IP Control: No
• Maximum Analog Resolutions: 2048 x 1536
• Maximum Digital Resolutions: 2560 x 1600
• Maximum Number of Users: 1
• On-Screen Display: No
• Port Selection Support: Push Button and Hotkeys
• Supported Resolutions Minimum: 640 x 480
• Wide Screen Supported: Yes

Connector(s):

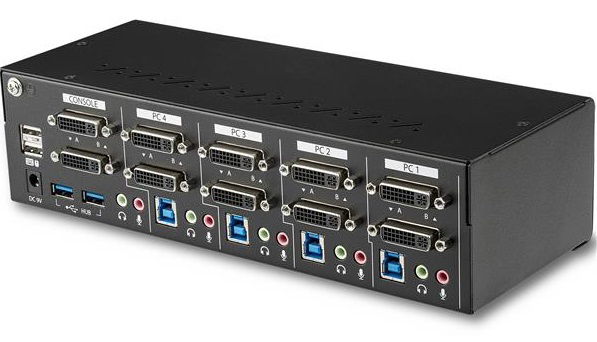

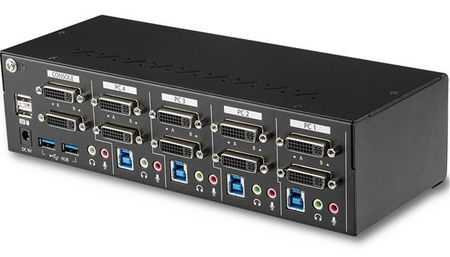

• Console Interface(s): 2x DVI-I (29 pin) Female Output, 2x USB Type-A (4 pin; HID Port) USB 1.1 Female Input, 2x USB Type-A (9 pin) USB 3.0 Female, 2x 3.5 mm Audio Female Output
• Host Connectors: 4x USB Type-B (9 pin) USB 3.0 Female, 8x DVI-I (29 pin) Female Input, 8x 3.5 mm Audio Female Input

Indicator:

• LED Indicators: 4x Red (Active), 4x Green (Sync)

Power:

• Center Tip Polarity: Positive
• Input Current: 0.8A
• Input Voltage: 100 - 240 AC
• Output Current: 2A
• Output Voltage: 9 DC
• Plug Type: M
• Power Consumption (In Watts): 18W
• Power Source: AC Adapter Included

Environmental:

• Humidity: 90% RH (Non-condensing)
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)

Physical Characteristics:

• Color: Black
• Enclosure Type: Steel
• Product Height: 6.6 cm
• Product Length: 25.3 cm
• Product Width: 10 cm
• Weight of Product: 1.3 kg

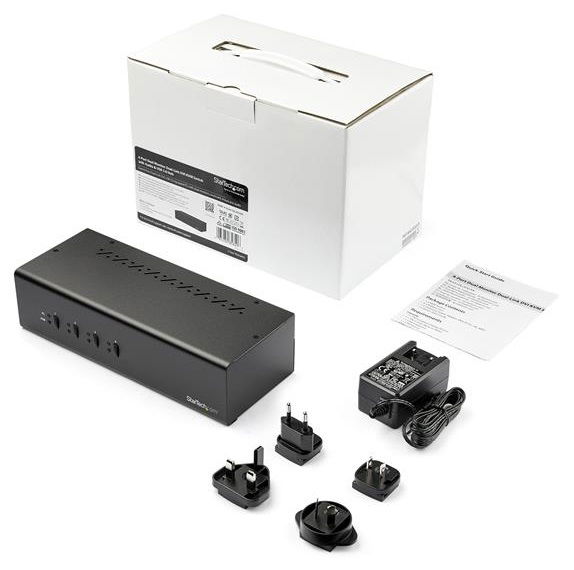

• 1x KVM switch
• 1x universal power adapter (NA/JP, EU, UK, ANZ)
• 1x quick-start guide
