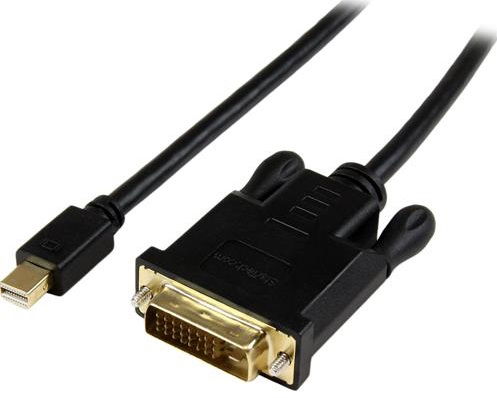

StarTech 0.9m Full HD 1080p Mini DisplayPort to DVI Active Adapter Cable - Black

The MDP2DVIMM3BS 3ft. active Mini DisplayPort to DVI adapter cable lets you directly connect your Mini DP video source (such as any of your MacBook or Microsoft Surface Pro devices with mDP) directly to a nearby DVI monitor or projector, saving the expense of additional adapters while eliminating the clutter of excess cable. For guaranteed compatibility with virtually any Mini DisplayPort output the active Mini DP to DVI adapter supports dual-mode (DP++) as well as single-mode DisplayPort signals. Unlike passive adapters, this ensures the MDP2DVIMM3BS can be used with graphics cards that are not capable of outputting multimode DP++ signals, such as ATI Eyefinity cards.

• Active Mini DisplayPort to DVI conversion
• 1x Male DisplayPort connector, 1x Male DVI connector
• Compatible with Intel Thunderbolt devices that are capable of outputting a DisplayPort signal

Hardware:

• Active or Passive Adapter: Active
• Adapter Style: Cable Adapters
• Audio: No
• AV Input: Mini DisplayPort - 1.2
• AV Output: DVI-D - Single-Link
• Chipset ID: Parade - PS171

Performance:

• Audio Specifications: DVI - No Audio Support
• Maximum Cable Length: 0.9m
• Maximum Digital Resolutions: 1024 x 768, 1280 x 720, 1920 x 1080, 1920 x 1200
• Wide Screen Supported: Yes

Connectors(s):

• Connector A: 1 - Mini-DisplayPort (20 pin) Male
• Connector B: 1 - DVI-D (25 pin) Male

Environmental:

• Humidity: 40~85% RH
• Operating Temperature: 0 C to 60 C
• Storage Temperature: -10 C to 70 C

Physical Characteristics:

• Cable Length: 3ft (0.9 m)
• Color: Black
• Weight: 154.7 g

• Some dual-link DVI monitors manufactured prior to 2014 may have limited resolutions support when used with this adapter.
• This adapter is not compatible for use with the Apple Cinema Display.

• 1x Active DisplayPort to DVI Adapter
