StarTech 3 Port 2b 1a 1394 PCI Express FireWire Card - 1x FireWire 400, 2x FireWire 800

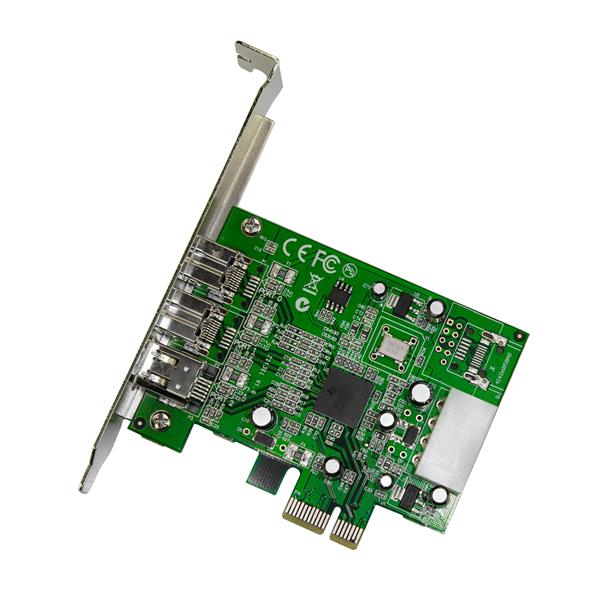

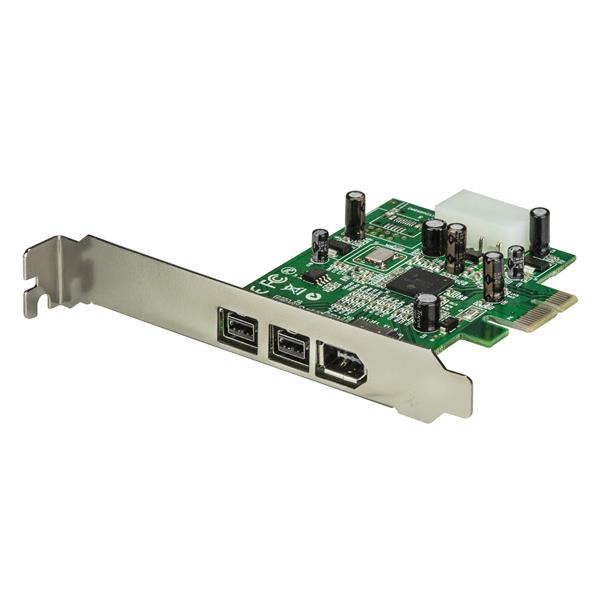

This 3 Port PCI Express FireWire adapter card can be installed in a PCI Express slot to add two IEEE1394b (FireWire 800 - 9 pin) ports and one IEEE1394a (FireWire 400 - 6 pin) port, providing broad compatibility with a wide range of FireWire devices (e.g. DV camcorders, external hard drives, digital cameras, etc.). The 2b, 1a card features a native (single chip) PCI Express chipset - resulting in faster, more reliable and cost effective performance than expansion cards that utilize a "bridge" chip.

• Two 9-pin FireWire 800 ports, each with transfer rates up to 800Mbps
• One 6-pin FireWire 400 port, each with transfer rates up to 400Mbps
• Built with a native PCI Express chipset, no bridge chip
• Includes low profile/half-height installation bracket
• Internal power connector for high powered FireWire devices
• Compliant with IEEE 1394b and backwards compatible with IEEE 1394a - 2000 as well as 1394-1995 standards
• Plug-and-Play and hot-swap compatible

Hardware:

• Bus Type: PCI Express
• Card Type: Standard Profile (LP bracket incl.)
• Chipset ID: Texas Instruments - XIO2213B
• Industry Standards: IEEE-1394/1394A/1394B, OHCI, PCI Express 1.1
• Interface: FireWire 800 (1394b), FireWire 400 (1394a)
• Ports: 3

Performance:

• Maximum Data Transfer Rate: 800 Mbps, 400 Mbps

Connector(s):

• Connector Type(s): 1x PCI Express x1 Male
• External Ports: 1x FireWire 400 (6 pin, IEEE 1394a) Female, 2x FireWire 800 (9 pin, IEEE 1394b) Female
• Internal Ports: 1x LP4 (4 pin; Molex-type Large Drive Power) Male

Environmental:

• Humidity: 0~90% RH
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Storage Temperature: -20°C to 90°C (-4°F to 194°F)

Physical Characteristics:

• Product Height: 120 mm
• Product Length: 85 mm
• Product Weight: 48 g
• Product Width: 18 mm
• Color: Green
• Material: Steel

Power:

• Input Voltage: 12V DC
• Output Voltage: 12V DC

OS Compatibility:

• Windows 2000, XP, Vista, 7, 8, 8.1, 10, 11
• Windows Server 2003, 2008 R2, 2012, 2016, 2019
• Mac OS 10.6 to 10.15, 11.0, 12.0, 13.0, 14.0
• Linux 3.5.x and up_LTS Versions only_

Note:

• The software included with this product supports a "typical" driver install only. Custom driver setup requires software purchase from a 3rd party

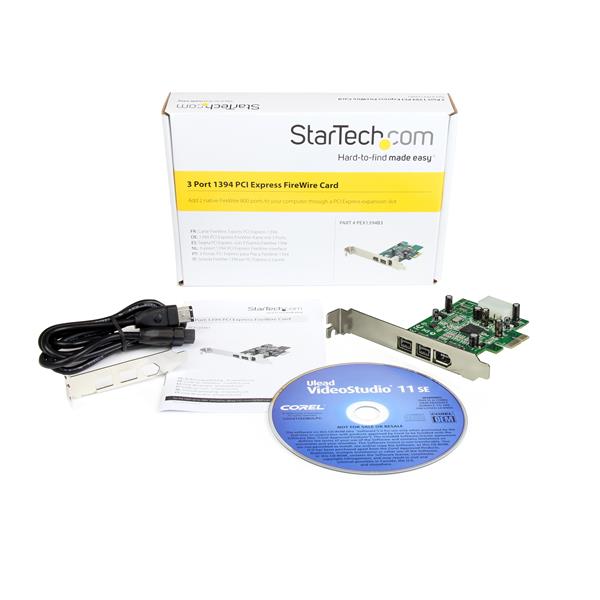

System and Cable Requirements:

• PCI Express enabled computer with an available PCI Express x1 slot or higher

• 1x PCI Express FireWire Card
• 1x FireWire cable
• 1x Low Profile Bracket
• 1x Software CD
• 1x Instruction Manual
