StarTech 2 Port USB-A + HDMI & USB-C KVM Switch - Black

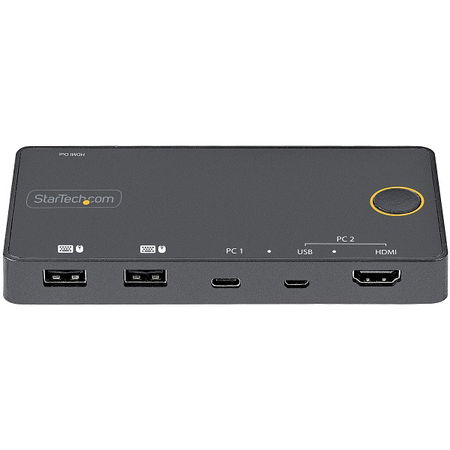

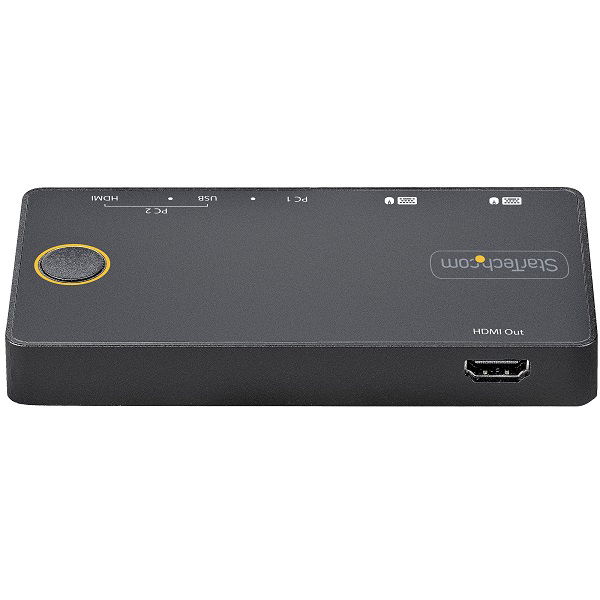

This 2-port USB-C / USB-A KVM enables you to easily switch between a USB Type-C or Thunderbolt 3 desktop/laptop computer and a USB-A and HDMI desktop/laptop computer, using a single keyboard, HDMI monitor and mouse.

Easy to Setup and Use:
Utilizing USB-C with DP alt-mode and USB-A and HDMI this compact KVM switch only requires three host cable connections, ensuring a small footprint with limited cabling requirements. All required cables for connecting your computers are included, to ensure a hassle-free setup right out of the box.

Supports 4K 60Hz Resolutions:
The USB-C KVM switch supports UHD resolutions up to 4K (3840 x 2160) at 60Hz and can drive one large HDMI 2.0 display with ease, maximizing viewing space.

Compact and Portable:
Along with the USB-C design that ensures cabling requirements are minimum the KVM is bus powered further reducing clutter by avoiding the need for a bulky power adapter. The lightweight small form factor makes this mini KVM switch easy to deploy and is ideal for mobile/hot desk workforces.

Guaranteed Compatibility:
The KVM is OS independent supporting all operating systems including Windows, Linux, macOS, iOS (Apple iPad Pro) and Android. StarTech.com has rigorously tested this product to ensure compatibility with all popular device brands including: Dell, HP, Apple and Lenovo.

Connector(s):

• Console Interface(s): 2 - USB 2.0 Type-A (4 pin, 480Mbps), 1 - HDMI
• Host Connectors: 1 - HDMI, 1 - Micro USB B Male, 1 - USB Type-C (24-pin) USB 2.0 (480Mbps)

Environmental:

• Operating Temperature: 5°C ~ 55°C
• Storage Temperature: -20°C ~ 50°C
• Humidity: 20%RH ~ 80%RH

Hardware:

• Audio: Yes
• KVM Ports: 2
• PC Interface: USB & USB-C
• PC Video Type: USB-C (DP Alt-Mode) + HDMI
• Number of Monitors Supported: 1
• Rack-Mountable: No
• Cables Included: Yes
• Chipset ID: Parade - PS176, VLI - VL170, Terminus - FE1.1S
• Daisy-Chain: No

Indicators:

• LED Indicators: 2 - Port selection or active host

Performance:

• Video Revision: HDMI 2.0, DisplayPort 1.2
• On-Screen Display: No
• IP Control: No
• Hot-Key Selection: No
• Maximum Data Transfer Rate: 480 Mbps
• Wide Screen Supported: Yes
• Audio Specifications: HDMI - 7.1 Channel Audio
• Port Selection Support: Push Button
• MTBF: 50,000 hrs

Physical Characteristics:

• Color: Black
• Product Height: 0.6 in [1.5 cm]
• Product Length: 2.8 in [7.0 cm]
• Weight of Product: 8.0 oz [228.0 g]
• Product Width: 5.4 in [13.8 cm]
• Material: Plastic

Power:

• Power Source: Bus Powered

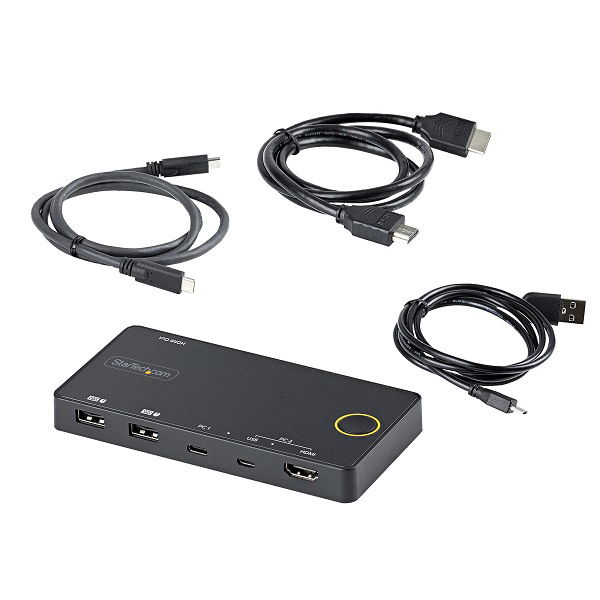

• 1 - KVM Switch
• 1 - USB-C Cable (1 m)
• 1 - USB-A to Micro USB-B Cable (1 m)
• 1 - HDMI Cable (1 m)
• 1 - Quick-Start Guide
