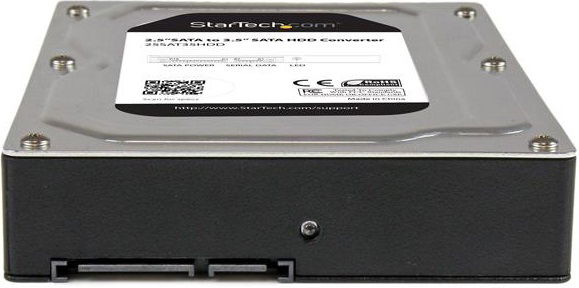

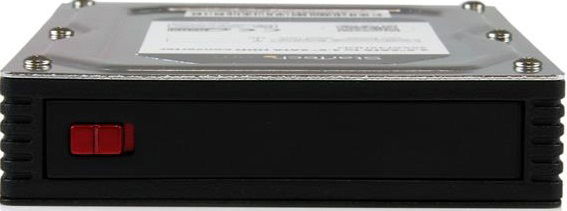

StarTech 2.5 Inch to 3.5 Inch SATA Aluminum Hard Drive Adapter Enclosure

The 25SAT35HDD 2.5" to 3.5" hard drive adapter enclosure turns a 2.5" SATA hard drive (HDD) or solid state drive (SSD) into a 3.5" drive. The adapter enclosure lets you substitute a 3.5" hard drive for a 2.5" SSD/HDD in any application that would typically require a 3.5" drive, such as desktop chassis, backplane, or docking station. The enclosure has the same dimensions as a standard 3.5" hard drive, including mounting points, and SATA connector locations.

• Supports 2.5" SSD/HDD up to 12.5mm in height
• Standard 3.5" HDD mounting points
• Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
• Tool-less installation

Hardware:
• Drive Installation: Removable
• Drive Size: 2.5in
• Interface: SATA
• Number of 2.5 inch bays: 1
• Number of Drives: 1

Performance:
• Insertion Rating: Door: 500 cycles NSS Connector: 50,000 cycles
• Max Drive Capacity: Currently tested with up to 1TB 7200 RPM hard drives
• Type and Rate: SATA III (6 Gbps)

Connector(s):
• Drive Connectors: 1 - SATA Data & Power Combo (7+15 pin)
• Host Connectors: 1 - SATA Data & Power Combo (7+15 pin)

Physical Characteristics:
• Material: Aluminum and Plastic
• Max Drive Height: 12.5 mm
• Product Height: 36 mm
• Product Length: 14.6 cm
• Product Width: 10.2 cm
• Weight of Product: 260 g

• 1x 2.5” to 3.5” SATA HDD/SSD Enclosure
• 1x Screw kit
• 1x Install Guide
