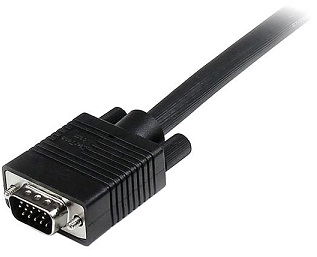

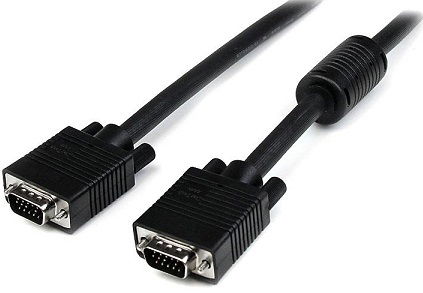

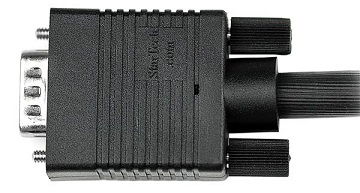

StarTech 1m VGA Male to Male Cable with Ferrite Core - Black

The MXTMMHQ1M High Resolution VGA Cable (1-meter) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above. This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends.

• Triple coaxial + twisted-pair wire for crystal clear display
• Durably constructed cable, with high quality HD15 connectors
• Impedance matched at 75 Ohms for full brightness and vibrant picture color from your VGA monitor
• High quality VGA connectors with molded PVC strain relief

Hardware:

• Cable Jacket Type: PVC - Polyvinyl Chloride
• Cable Shield Type: Aluminum-Mylar Foil with Braid
• Connector Plating: Nickel
• Fire Rating: CMG Rated (General Purpose)
• Number of Conductors: 14
• Number of Ferrites: 1

Performance:

• Impedance: 75 Ohm

Connectors(s):

• Connector A: 1 - VGA (15 pin, High Density D-Sub) Male
• Connector B: 1 - VGA (15 pin, High Density D-Sub) Male

Environmental:

• Humidity: 0 - 80 %RH
• Operating Temperature: 0 to 60 °C
• Storage Temperature: -20 to 80 °C

Physical Characteristics:

• Cable Length: 1 m
• Cable OD: 9 mm
• Color: Black
• Max Connector Dimension: 34 mm
• Weight of Product: 195 g
• Wire Gauge: 28 AWG

• 1x 1m Coax High Resolution Monitor VGA Cable - HD15 M/M
• 2x Nuts
