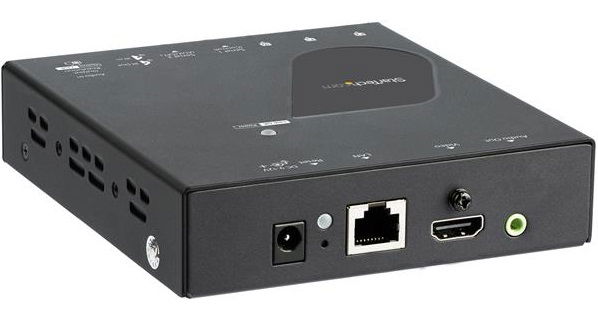

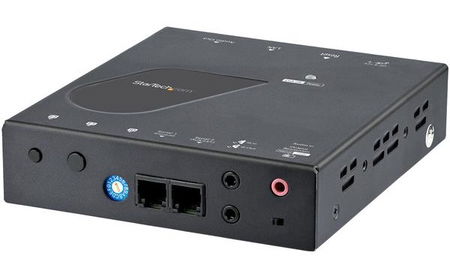

StarTech 1080p HDMI Video over IP Gigabit LAN Receiver - Video Wall Support

This HDMI over IP receiver works with the HDMI Over IP Extender Kit (ST12MHDLAN2K, sold separately) and an Ethernet switch (sold separately), to receive HDMI video over your local area network (LAN) in remote locations, using Cat5 or Cat6 cabling. You can use additional receivers to distribute the HDMI signal to multiple locations or combine your remote displays to create a video wall.

Highly Scalable

• In a point-to-multipoint (one source to many screens) or multipoint-to-multipoint (many sources to many screens) configuration, you can output video to over 100 additional displays. Each display requires a receiver. Remote control of serial devices is supported through RS232 extension.

Resolutions Up to 1080p, with Audio

• With support for video resolution up to 1080p (1920 x 1080 at 60Hz), the transmitter also supports digital and analog audio to the receiver and analog audio from the receiver to the transmitter.

Mobile Control with Included App

• The kit includes an easy-to-use online app to manage your IP video distribution.
• The app is available on iOS for your iPhone or iPad, Android for your smartphone or tablet, and Google Chrome browser for your desktop.

Hassle-Free Installation

• The HDMI over IP receiver includes optional shelf-mounting hardware. It uses Cat5e or Cat6 cables and works with existing network infrastructures, eliminating the expense of running proprietary cables.

Hardware:

• Audio: Yes
• Cabling: Cat 5e UTP or better
• Daisy-Chain: Yes
• Rack-Mountable: Yes

Performance:

• Audio Specifications: 7.1 Channel Surround
• Max Distance: 100 m / 330 ft
• Maximum Digital Resolutions: 1920x1080 @60Hz
• Supported Resolutions: 1920 x 1080 @60Hz, 1280 x 720, 1680 x 1050, 1600 x 900, 1440 x 900, 1360 x 768, 1280 x 800, 1280 x 768_Lower resolutions and refresh rates may also be supported_
• Wide Screen Supported: Yes

Connector(s):

• Remote Unit Connectors: 1x HDMI (19 pin) Female, 1x RJ-45 Female, 2x RJ-11 Female, 2x 3.5 mm Audio Female, 2x 3.5 mm Mini-Jack (3 Position) Female

Indicator:

• LED Indicators: 1x Power/Link, 1x Network Status

Power:

• Center Tip Polarity: Positive
• Input Current: 0.6 A
• Input Voltage: 100 - 240 AC
• Output Current: 1.5 A
• Output Voltage: 12 DC
• Plug Type: M
• Power Consumption (In Watts): 10
• Power Source: AC Adapter Included

Environmental:

• Humidity: 0% - 80 %
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -10°C to 60°C (14°F to 140°F)

Physical Characteristics:

• Color: Black
• Enclosure Type: Aluminum
• Product Height: 3.1 cm
• Product Length: 13.1 cm
• Product Width: 11.8 cm
• Weight of Product: 80 g

• 1x HDMI Receiver
• 1x CAT5 Cable
• 1x RJ-11 to RS-232 Adapter
• 1x RJ-11 Cable
• 1x IR Blaster
• 1x IR Receiver
• 1x Universal Power Adapter (NA/JP, EU, UK, ANZ)
• 1x Hardware Kit
• 4x Foot Pads
• 1x User Manual
