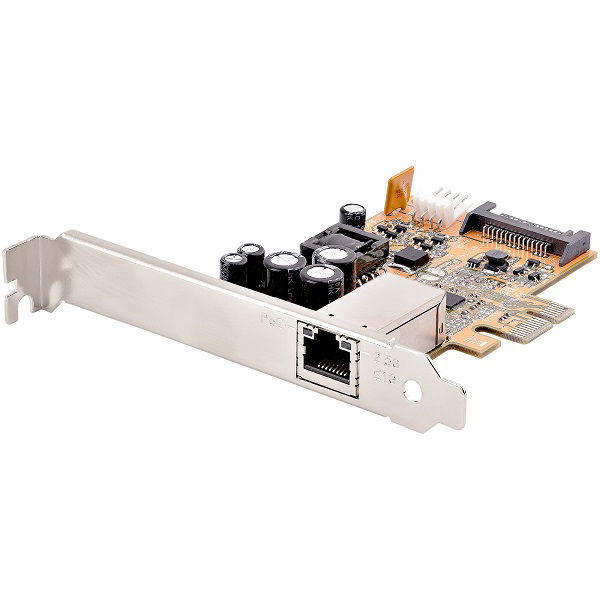

StarTech 1 Port 2.5Gbps PCIe PoE Network Card

The Power over Ethernet PCIe network card enables multigigabit speeds of 2.5/1Gbps and 100/10Mbps. This PoE LAN adapter can provide up to 25.5 W of power to a connected device. It combines a network data connection and power over a single Cat5e (or better) Ethernet cable. This PoE NIC is the ideal solution to provide both power and network communication to a remote installation.

Versatile Network PoE Card:
The PCIe Ethernet card supports the IEEE 802.3af and IEEE 802.3at (Type 1 and Type 2) standards for Power Sourcing Equipment (PSE) and can deliver up to 48 V DC and 25.5 W of power to compliant Powered Devices (PD). This flexibility eliminates the need for a separate power source for remote networked devices such as IP cameras, access control devices, remote kiosks, and wireless access points.

Enhance Existing Hardware:
The network interface card connects to an available x1 PCIe 2.1 (or higher) expansion slot. The card is shipped with a standard-profile bracket. It includes a low-profile bracket for installation in various computer chassis. Access up to 2.5 Gbps (NBASE-T) speeds using Cat5e cabling to utilize existing networks and equipment.

Connector(s):

• Connector Type(s): 1 - PCI Express x1
• Connector A: 1 - RJ-45 (PoE+)
• Internal Ports: 1 - SATA Power (15 pin), 1 - 4 pin Small Power (SP4, Floppy) Male

Environmental:

• Operating Temperature: 0°C to 55°C (32°F to 131°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Humidity: 5% ~ 95% RH

Hardware:

• Ports: 1
• Interface: RJ45 (Gigabit Ethernet)
• Bus Type: PCI Express
• Card Type: Standard Profile (LP bracket incl.)
• Port Style: Integrated on Card
• Industry Standards: IEEE802.3at Power over Ethernet (25 W), IEEE802.3af Power over Ethernet (15 W), IEEE 802.3bz (2.5GBASE-T), IEEE 802.3ab (1000BASE-T ), IEEE 802.3u (100BASE-TX ), IEEE 802.3i (10BASE-T), IEEE P802.3az Energy Efficient Ethernet (EEE), IEEE802.1Q (VLAN tagging), Wake-on-LAN (WOL), PCI Express Version 2.1
• Chipset ID: Realtek - RTL8125B

Indicators:

• LED Indicators: 1 - PoE LED: Green when supplying power, 1 - 2.5G < 1G LED: 2.5 Gbps Amber, 1 Gbps /100 Mbps/10 Mbps Green

Performance:

• Maximum Data Transfer Rate: 2500 Mbps
• Maximum Cable Length: 328.0 ft [100 m]
• Flow Control: Yes
• Compatible Networks: 2.5G/1G/100Mbps/10Mbps
• Auto MDIX: Yes
• PXE: Yes
• Full Duplex Support: Yes
• Jumbo Frame Support: 16K max.

Physical Characteristics:

• Product Length: 3.7 in [9.5 cm]
• Product Width: 2.5 in [6.3 cm]
• Product Height: 0.6 in [1.5 cm]
• Weight of Product: 7.8 oz [220.0 g]

Power:

• Output Voltage: 48 DC

OS Compatibility:

• Windows 11
• Windows 10
• Windows 8.1
• Windows 7
• Windows Server 2022
• Windows Server 2019
• Windows Server 2012 R2
• Windows Server 2008 R2
• Linux Kernel 2.4.20 and up - LTS Versions only

• 1 - Network Card
• 1 - Low-profile Bracket
• 1 - Quick-start Guide
