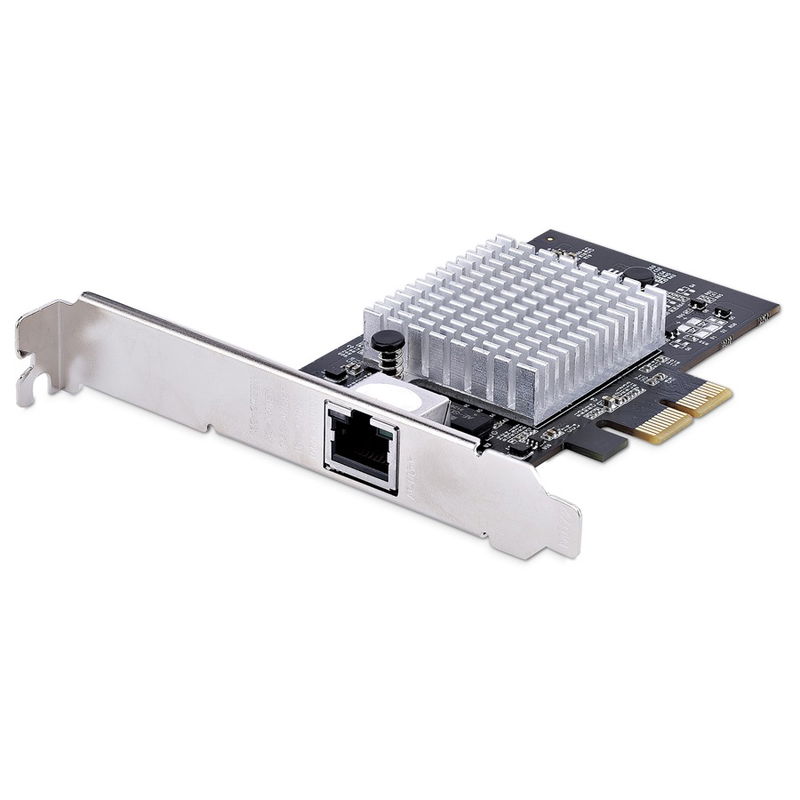

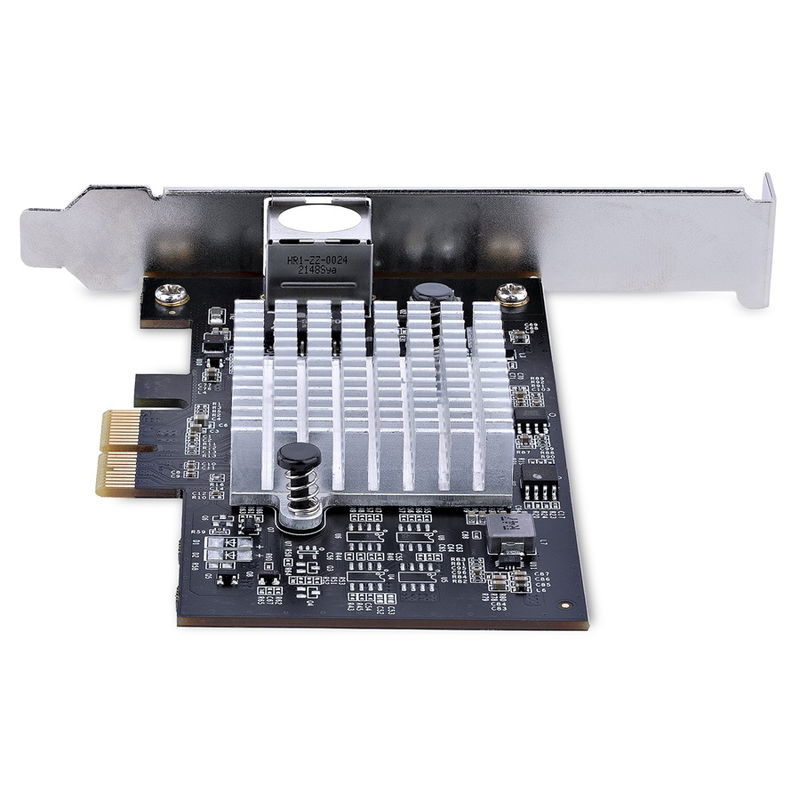

StarTech 1-Port 10Gbps PCIe Network Adapter Card

Install this single-port 10GbE PCI Express (PCIe) Network Interface Card (NIC) into a server or computer to enable faster network speeds and enhanced network functionality. This card supports six speeds: 10/5/2.5/1Gbps and 100/10Mbps. The variable speeds permit access to legacy hardware. Alternatively, the 10GBASE-T and NBASE-T capabilities ensure compatibility with the latest network switches and network access points manufactured by Cisco®, HPE®, and Juniper.

Increased Network Speeds:
This PCIe network card provides access to increased bandwidth. It reduces network slowdown/degradation when running data-intensive applications/processes such as FTPs, online storage/backup, and when streaming online content. NBASE-T technology maximizes the capability of Cat5e copper cabling over at distances of up to 100 meters. The Ethernet network card supports a 10 Gbps connection over copper using existing Cat6 (or better) copper cabling.

Enhance Existing Hardware:
The Network Interface Card connects via an available PCI Express x2 3.0/4.0 (or higher) expansion slot. The card is shipped with a standard-profile bracket and includes a low-profile bracket for installation in various systems. This card is compatible with Windows, Windows Server, and Linux. Take advantage of advanced features such as Audio-Video Bridging (AVB), VLAN tagging, 16 K jumbo frame, full-duplex, secure boot, and PXE. The PCI Express 10G NIC is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance.

• Connector Type(s): 1 - PCI Express x2
• External Ports: 1 - RJ-45
• Ports: 1
• Interface: RJ45 (10 Gigabit Ethernet)
• Bus Type: PCI Express
• Card Type: Standard Profile (LP bracket incl.)
• Industry Standards: IEEE 802.3an (10GBASE-T), IEEE 802.3bz (5GBASE-T), IEEE 802.3bz (2.5GBASE-T), IEEE 802.3ab (1000BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3i (10BASE-TX), IEEE 802.1Q (VLAN), IEEE P802.3az (EEE), IEEE 1588 (PTP), PCI Express Version 3.0
• Chipset ID: Marvell - AQC113CS
• LED Indicators: 1 - Green LED: 10 Gbps, 1 - Amber LED: 5G/2.5G/1G/100Mbps/10Mbps
• Power Source: Bus Powered
• Operating Temperature: 0°C to 60°C
• Storage Temperature: -10°C to 70°C
• Colour: Black
• Material: Steel
• Dimensions (L x W x H): 10.6 x 5.6 x 1.5 cm
• Weight: 73.0 g

• Compatibility: Windows 11, Windows 10, Windows 8, Linux 3.10.x and up - LTS Versions only

• 1 - PCIe Network Card
• 1 - Low-profile Bracket
• 1 - Quick-start Guide
