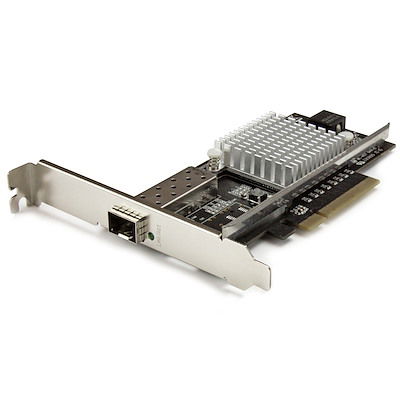

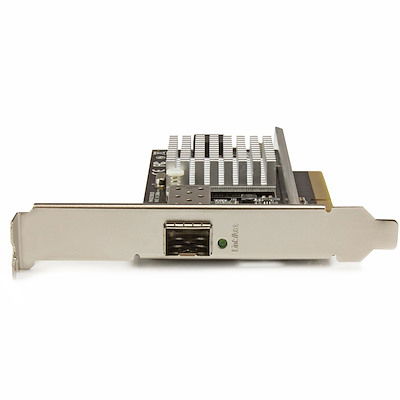

StarTech 1 Port 10G Ethernet PCIe Network Card with Open SPF+

This fiber network card delivers reliable, high-performance network connectivity, by adding an open SFP+ slot to your server or high-powered workstation. It provides an easy and cost-effective way to upgrade your server or workstation to a 10 Gigabit fiber network using the SFP+ module of your choice and gives you the flexibility to use either multimode or single-mode fiber.

Increase your network speed:
Several factors drive the need for more bandwidth in your network infrastructure. An increase in the number of network users and data-intensive applications, such as multimedia streaming and large file transfers all contribute to the need for more bandwidth in your network infrastructure. This fiber NIC lets you take advantage of the increased speed and stability of a 10 Gigabit network, with data transfers of up to 10Gbps.

Add scalable network connections to your server or workstation:
The fiber NIC is compatible with most 10GbE SFP+ transceivers. This gives you flexible and scalable configuration options for connecting your computer directly to a fiber network, at greater distances. The card features an open SFP+ slot with support for one interchangeable 10GBase SFP+ module. This gives you the option to use the fiber transceiver module that best suits your network needs based on distance and connector type. StarTech.com offers a variety of SFP+ transceiver modules including the SFP10GLRST single-mode SFP+ the SFP10GLRMST multi-mode SFP+, and SFP10GSRST multimode LC with DDM. In addition, StarTech.com SFP+ Cables provide a dependable solution for linking telecom and data communications equipment, such as routers and switches.

Enhance your network capabilities:
The 10 Gigabit network card features the Intel 82599 chipset, delivering the power, performance and enhanced capabilities you need for reliable network connections to your server or computer. The Intel chip offers many advanced features including Intel Virtualization Technology for Connectivity, PXE network boot support and up to 15K jumbo frame support.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application:
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes Mac Address Pass-Through Utility to improve network security and Wi-Fi Auto Switch Utility, enabling users to quickly access faster network speeds via wired LAN.

Connector(s):

• Connector Type(s): 1 - PCI Express x8
• Internal Ports: 1 - SFP+ Slot

Hardware:

• Ports: 1
• Interface: Fiber (10 Gigabit Ethernet), Gigabit Ethernet
• Bus Type: PCI Express
• Card Type: Standard Profile (LP bracket incl.)
• Industry Standards: IEEE 802.3ae (10GBASE-LR/SR only), IEEE 802.3aq (10GBASE-LRM) PCI Express Rev 2.0, using PCIe x8 (or higher) slot
• Chipset ID: Intel - 82599

Environmental:

• Operating Temperature: 5°C to 50°C (41°F to 122°F)
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)
• Humidity: 20% ~ 80% RH

Physical Characteristics:

• Color: Black
• Material: Steel
• Dimensions (H x L x W): 3 x 17.4 x 14.3 cm
• Weight: 102.0 g

Compatibility:

• Windows 7, 8, 8.1, 10, 11
• Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
• Windows Drivers are supported in 64-bit only
• Linux 2.6.24 and up - LTS Versions only

• 1 - 10G open SFP+ fiber network card
• 1 - Low-profile bracket
• 1 - Quick-start guide
