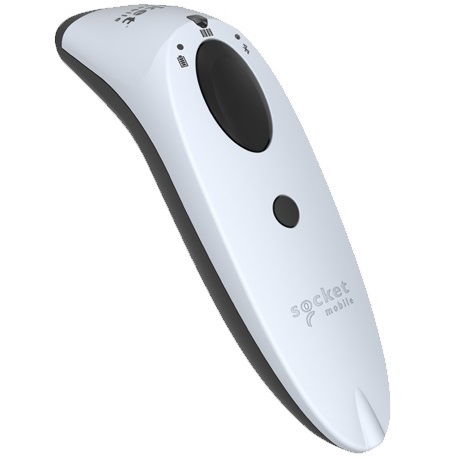

SocketScan S720 2D Bluetooth Barcode Scanner - White

The S720 can read both 1D and 2D barcodes on paper and on screen. As part of our SocketScan family of data readers, it can do all that your legacy barcode scanner can do, bringing you into the next wave of barcode and QR code scanning on mobile devices. The S720 barcode scanner is lightweight, ergonomically designed and comes with long-lasting batteries. It is exceptionally easy to use, with intuitive notifications for battery level, Bluetooth connection, and scanning status. The SocketScan S720 is wireless for increased mobility and productivity helping to reduce human error. 2D barcodes provide the next step in versatility, functionality and efficiency that cannot be achieved with linear 1D barcodes. Using 2D barcodes and a 2D barcode scanner gives your business an accurate and easy way to track inventory and assets, scan products and digital IDs, or credentials from mobile wallets. Budget conscious - the S720 is a great every day general purpose 2D barcode scanner that scans most popular used 2D barcodes such as PDF417, QR Codes and Data Matrix.

• Compatible with Apple iOS devices (iPad, iPhone, iPod Touch) and Android, Windows, Mac and Linux.
• Scanning: 2D and 1D barcode scanning.
• Auto Scan Mode: Presentation Mode (automatic scanning) provides continuous scanning capabilities without pressing the scan button.
• Exceptional Ergonomics: Small, light and fits perfectly in the hand for comfortable use over extended periods of time.
• Long-Lasting, Replaceable, Rechargeable Battery: Power to last over 16 hours on a single charge.
• User Indicators: Intuitive LEDs for Bluetooth connection, battery level and scanning status.
• User Feedback: Audible tones and pulsation.
• LED Aimer: Bright, rectangular illumination field with LED pointer for precise aiming.
• Decoding Ability: Reads damaged and poorly printed barcodes.
• Developer Support Available: The Socket Mobile development team is available to help integrate CaptureSDK into your app.
• Native App Support: Socket Mobile’s CaptureSDK enables easy native app integration in your applications to improve business productivity.

Scanning Performance:

• Scan Angle: 44.5° (Horizontal) - 33.5° (Vertical)
• Sensor Resolution: 1280 horizontal x 960 vertical pixels
• Print Contrast: Down to 25%
• Reading Distance: 4.0 to 38.0 cm (1.6 to 15 in.) Depends on barcode size, symbology, label media
  Default Barcode Symbologies
• 1D Symbologies: Codabar, Code 39, Code 93, Code 128, EAN-13, EAN-8, Interleaved 2 of 5, ISBT 128, UPC A, UPC E1
• 2D Symbologies: Data Matrix, Micro QR Code, PDF417, QR Code
  Supported Barcode Symbologies
• 1D Symbologies: Chinese 2 of 5, Codabar, Code 11, Code 16KCode 39, Code 93, Code 128, Discrete 2 of 5, EAN-13, EAN-8, GS1 Databar, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI Plessey, UPC A, UPC E1, Standard 2 of 5, UK Plessey
• 2D Symbologies: Aztec, Data Matrix, Han Xin, Micro PDF417, Micro QR Code, PDF417, QR Code

Scanner Type:

• Technology: 2D/1D Barcode Imager
• Light Source: LED
• Aimer: Red

Battery:

• Battery Type: 2 rechargeable, 2000 mAh (LR6) NiMH (replaceable battery)
• Charge Time: ~6 Hours
• Battery Life: 500 charge-discharge cycles
• Standby time: Over 20 hours
• Battery Life-Per Full Charge: Active Scan Time: 70,000 scans within 9 hours based on 2 scans every 1 second; 12,000 scans within 15 hours based on 1 scan every 4 seconds
• Number of Batteries Used: 2
• Weight of Battery: 54.5g
• Battery mAh: 2000 mAh
• Number of Cell Per Battery: 1
• Watt Hours Per Battery: 2.4
• Type of Cell (ex.AA): AA
• Chemical Composition: Nickel Metal Hydride
• Battery Voltage: 2.4v
• ROHS Compliance Indicator: Yes, included with scanner

Bluetooth (Wireless Connection):

• Bluetooth Radio: Class 2 Bluetooth, version 2.1 + EDR (Enhanced Data Rates) with 56-bit data encryption
• Bluetooth Range: Up to 10 m (33 ft.) depending on environment, range limit is usually due to the Host Device (phone, tablet or notebook)
• Bluetooth Profiles: Basic Mode - Human Interface Device (HID), Application Mode - Serial Port Profile (SPP) and iOS Application Mode. Some Operating Systems or smartphone/tablet models may support only one profile.*Please note: By default, the scanner is set to iOS Application Mode

User Environment:

• Ambient Light: From 0 to 100 000 lux. From pitch black to direct sun light
• Operating Temperature: 0° to 45° C (32° to 113° F)
• Storage Temperature: -40° to 70° C (-40° to 158° F)
• Relative Humidity: 95% at 60° C (140° F) (non-condensing)
• Drop Specifications: 4 ft. drop to linoleum

Operating System Compatibility:

• Android OS - Basic Mode (HID) & Application Mode (SPP)
• Apple iOS - Basic Mode (HID) & iOS Application Mode
• Windows OS 10, Basic Mode (HID) & Application Mode (SPP)
• Mac OS - Basic Mode (HID) only
