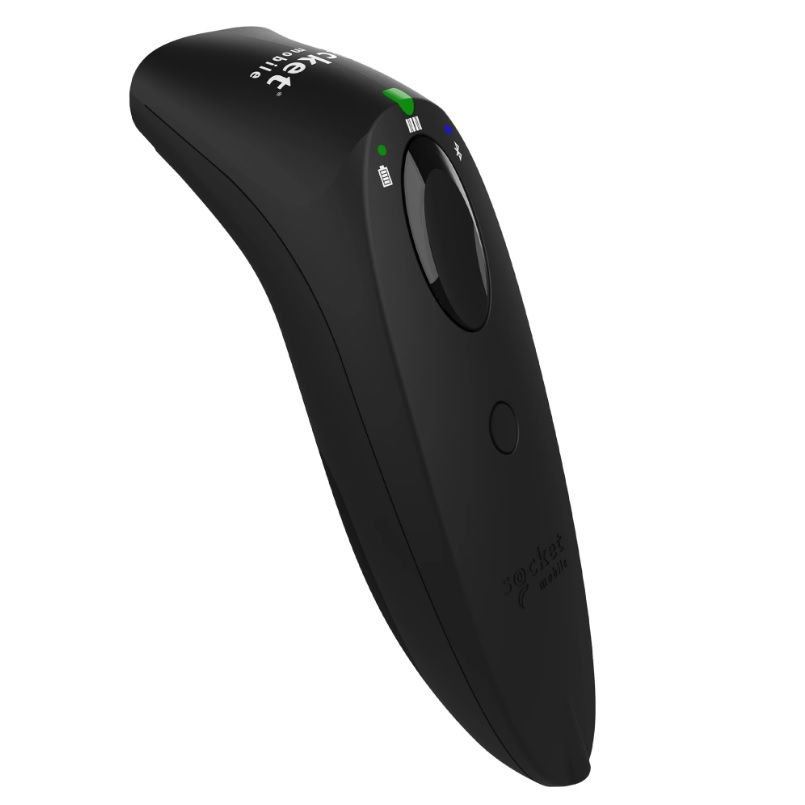

Socket S760 2D Bluetooth Barcode Scanner - Black

The S760 barcode scanner is a multi-use barcode scanner with Bluetooth wireless technology that scans 1D, 2D barcodes, OCR A & B fonts, OCR USC, OCR passport, OCR MICR (E13B) fonts and DotCode. The S760 reads most travel identification documents, such as passport, international travel IDs, drivers’ licenses. The S760 is designed to support the many POS outlets that require electronic age verification.

• Bluetooth Wireless Technology - Compatible with iOS, Android and Windows devices with long-range Bluetooth connection
• Auto Scan Mode - Presentation Mode (automatic scanning) provides continuous scanning capabilities without pressing the scan button
• LED Aimer - Bright, rectangular illumination field with LED dot for precise aiming
• Exceptional Ergonomics - Small, lightweight, and fits perfectly in the hand for comfortable use over extended periods
• Long-Lasting Battery - Power to last over 16 hours
• Protective Material - Made with antimicrobial material for protection against potentially harmful bacteria

Scanner:

• Technology: 2D/1D Barcode Imager, OCR & DotCode Reader
• Light Source: Hyper Red 660 nm (nanometer) LED
• Aimer: 610 nm LED
• Scan Angle: 42° (Horizontal) - 28° (Vertical)
• Sensor Resolution: 640 horizontal x 400 vertical pixels
• Print Contrast: Down to 25%
• Reading Distance: 4.6 to 49.5 cm (1.5 to 19.5 in.) Depends on barcode size, symbology, label media, scan angle
• Decode Ranges (Near - Far): 4 mil Code 39 8.4 - 22.4 cm, 5 mil Code 128 7.1 - 20.8cm, 5 mil Code 39 5.08 - 34.3 cm, 10 mil Data Matrix 7.4 - 25.7 cm, 100% UPC A 4.6- 66.0 cm, 20 mil Code 39 5.08- 76.2 cm

Battery:

• Battery: 2 rechargeable, 2000 mAh (LR6) NiMH (replaceable battery)
• Charge Time: ~6 Hours
• Standby time: over 20 hours
• Active Scan Time: 70,000 scans within 9 hours based on 2 scans every 1 second, 17,000 scans within 19 hours based on 1 scan every 4 seconds

Connectivity:

• Bluetooth Radio: Class 2 Bluetooth, version 2.1 + EDR (Enhanced Data Rates) with 56-bit data encryption
• Bluetooth Range: Up to 10 m (33 ft.) depending on environment, range limit is usually due to the Host Device (phone, tablet or notebook)
• Bluetooth Profiles: Basic Mode - Human Interface Device (HID), Application Mode - Serial Port Profile (SPP) and Application Mode - MFi-SPP

Default Symbologies:

• 1D Symbologies: Codabar, Code 39, Code 93, Code 128, EAN-13/JAN, EAN-8/JAN, GS1 Databar, GS1 Databar Expanded, GS1 Databar Limited, GS1-128, Interleaved 2 of 5, ISBT 128, UPC A, UPC EO
• 2D Symbologies: Aztec, Data Matrix, Maxicode, Micro PDF417, PDF417, DotCode
• Postal Codes: Australia Post, OCR Type Face: OCR Passport - 2 lines

Supported Symbologies:

• 1D Symbologies: Bookland EAN, Chinese 2 of 5, Codabar, Code 11, Code 39, Code 93, Code 128, Composite CC-A/B, Composite CC-C, Composite TLC, Discrete 2 of 5, EAN-13/JAN, EAN-8/JAN, GS1, Databar, GS1 Databar Expanded, GS1 Databar Limited, GS1-128, Interleaved 2 of 5, ISBT 128, ISSN, EAN, Matrix 2 of 5, MSI, UPC/EAN/JAN, UPC A, UPC EO
• 2D Symbologies: Aztec, Data Matrix, Dot Code, Han Xin, Maxicode, Micro PDF417, MicroQR, PDF417, QR Code, DotCode
• Postal Codes: Australia Post, Japan Postal, KIX Code, Maxicode, Netherlands, UPU FICS Posta, US, Planet, US Postnet, USPS 4CB/One Code/Intelligent Mail
• OCR Type Face: OCR-A, OCR-B, MICR-E13B, US currency serial number

Environmental:

• Ambient Light: From 0 to 100 000 lux. From pitch black to direct sun light
• Operating Temperature: 0° to 45° C (32° to 113° F)
• Storage Temperature: -40° to 70° C (-40° to 158° F)
• Relative Humidity: 95% at 60° C (140° F) (non-condensing)
• Drop Specifications: 4 ft. drop to linoleum

General:

• Dimensions (W x D x H): 37.1 x 40.1 x 132.2mm
• Weight: 117g

Supported Operating Systems

• Android OS - Basic Mode (HID) & Application Mode (SPP)
• Mac OS - Basic Mode (HID) only
• Apple iOS - Basic Mode (HID) & Application Mode (MFi-SPP)
• Windows OS - 10, 8, and 7 - Basic Mode (HID) & Application Mode (SPP)

• Socket S760 Barcode Scanner
• USB Charging Cable
• Wrist Strap
• Starter Guide
