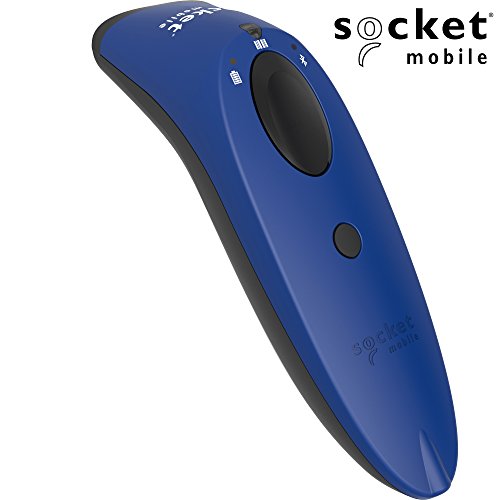

Socket S730 1D Bluetooth Standard Range Handheld Barcode Scanner - Blue

The SocketScan S730 1D barcode scanner with Bluetooth wireless technology scans on paper or screen. It has a light-weight, ergonomic structure, and a long-lasting battery to withstand entire work days. The five color options fit most styles and environment needs. The LEDs for battery, Bluetooth and scanning notifications make the scanner more intuitive to use. Compatible with all applications in previous Socket Mobile barcode scanners, without software changes.

Bluetooth Wireless Technology

• Connects easily to a wide range of Bluetooth enabled smartphones, tablets, notebook and desktop computers

Scanning

• Reads all common 1D / linear and stacked barcodes up to 33cm away

Exceptional ergonomics

• Small, lightweight, and fits perfectly in the hand for comfortable use over extended periods

User Indicators

• Intuitive LEDs, beeps, and vibrations let users know battery, Bluetooth connection and scanning status

Advanced functionality

• Leverage Application Mode functionality by integrating Socket Mobile’s SDK in you APP. It improves business productivity with faster, efficient and reliable data transfer over Bluetooth.

Technical Specifications:

• Scanning Technology: 1D Class 2 Laser Barcode Scanner
• Reading Distance: 1D codes 3 to 450cm
• Scanning Mode: 1.7 mW (nominal peak power)
• Aiming Mode: 0.67 mW
• Scan Angle: Wide: 47° (Default), Medium: 35°, Narrow: 10°
• Optical Resolution: 0.005 in. Minimum element width
• Legible Print Contrast: Minimum 25% absolute dark
• Interface: Class 2 Bluetooth v2.1 + EDR with 56-bit data encryption
• Range: Up to 10m (Line of Sight)
• Battery: 2 AA NiMH rechargeable batteries (replaceable battery)
• Charge Time: Approx. 6 Hours
• Standby Battery Life: 20+ hours
• Active Battery Life: 100,000 scans within 9 hours (2 scans every 1 second), 16,000 scans within 18 hours (1 scan every 4 seconds)

Default Symbologies:

• Australia Post
• Code 39
• Code 128
• EAN-13/JAN
• EAN-8/JAN
• GS1 Databar
• GS1 Databar Expanded
• GS1 DataBar Limited
• GS1-128
• Interleaved 2 of 5
• UPC A
• UPC E0

Supported Symbologies:

• Australia Post
• Bookland EAN
• Chinese 2 of 5
• Codabar
• Code 11
• Code 39
• Code 93
• Code 128
• EAN-13/JAN
• EAN-8/JAN,
• GS1 Databar
• GS1 Databar Expanded
• GS1 DataBar Limited
• GS1-128
• Interleaved 2 of 5
• ISBT 128
• Korean
• 3 of 5
• Matrix 2 of 5
• MSI
• Plessey
• UPC A
• UPC E0
• UPC E1

General:

• Ambient Light Operation: 4,800 to 86,000lux (artificial indoor to natural outdoor lighting)
• Operating Temperature: -20°C to 50°C
• Storage Temperature: -40°C to 70°C
• Relative Humidity: 95% at 60°C (non-condensing)
• Drop Specifications: 1.2m to linoleum
• Buttons: Power, Scan
• LED Indicators: Battery LED: Green, Amber & Red, Bluetooth LED: Blue, Scan LED: Green and Red
• Status Indicators: Beep, Vibrate
• Dimensions (W x D x H): 37.1 x 40.1 x 132.2mm
• Weight: 113g

• Socket S730 1D Laser Barcode Scanner
• Charging Cable
• Wrist Strap
• Starter Guide
