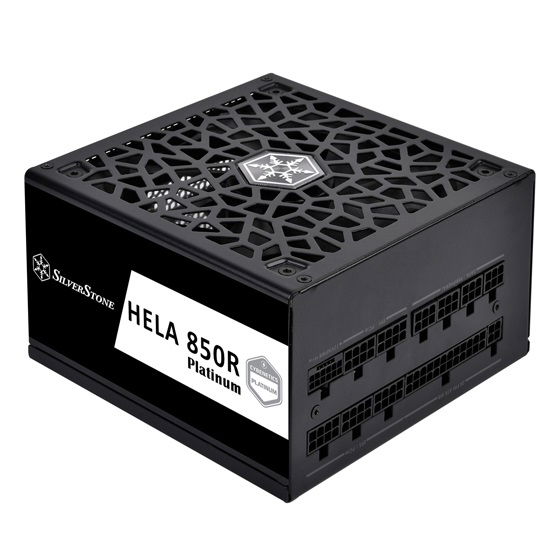

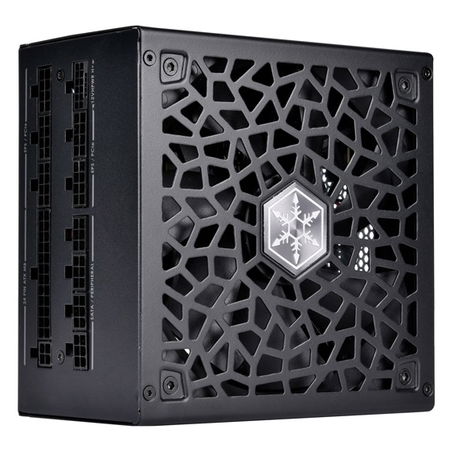

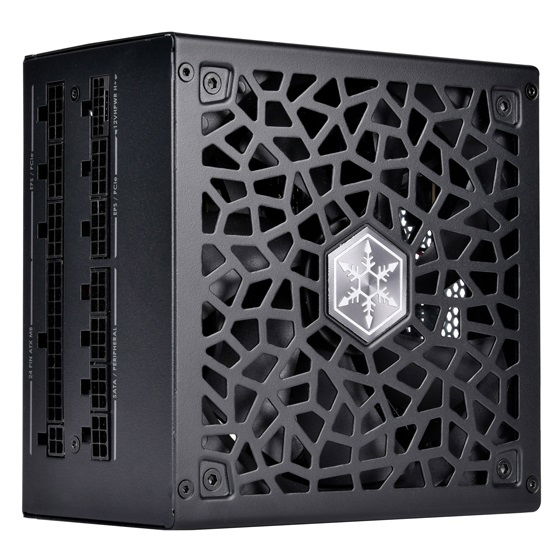

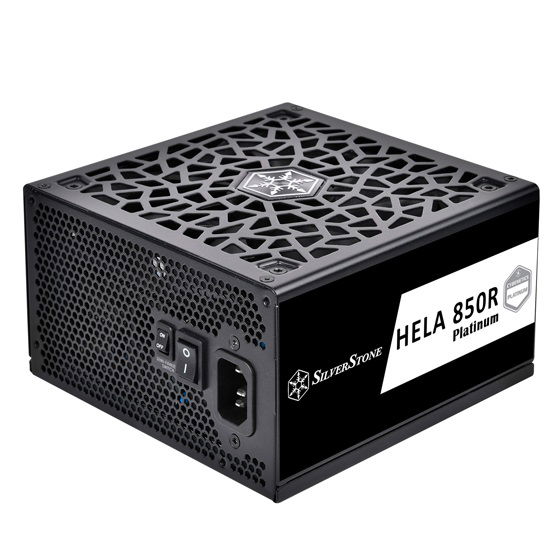

SilverStone Hela 850R Platinum 850W Full Modular ATX Power Supply

Cybenetics Platinum 850W ATX 3.0 & PCIe 5.0 Fully Modular ATX Power Supply

12VHPWR PCIe connector supports ATX 3.0 and PCIe Gen5 standards:
The 16 pin (12VHPWR) design is capable of withstanding power failure caused by a running graphics card’s instantaneous peak power consumption, whilst providing higher stability and efficiency power output for high-end systems.

Cybenetics Platinum Certified:
Designed for Cybenetics Platinum level of efficiency to reduce wasted heat and save on electricity.

Fully modular design with universal EPS / PCIe connector interface:
Flat cables have much greater flexibility to allow for tighter folding and management of cable.

All Japanese electrolytic capacitors:
Ensure reliable power and long-life span.

Silent 135mm FDB fan:
Built-in 135 mm fan has excellent airflow and low noise, perfect for quiet home or office use.

• Max. DC Output: 850W
• Power density: 439W per liter
• Load Range: Output: +3.3V, +5V, +12V, +5VSB, -12V; Max.(Amps): 22A, 22A, 70.8A, 3.0A, 0.3A; Min.(Amps): 0A, 0A, 0A, 0A, 0A; Range (%): ±5% ±5% +5/-7% ±10% ±5%; Line Reg.(%): ±1%, ±1%, ±1%, ±1%, ±1%; Ripple(mVp-p): 40mV 40mV 80mV 40mV 80mV
• Combined +3.3V & +5V: 120W
• Combined +12V: 849.6W
• Input Voltage: 90 ~ 264 Vrms
• Input Frequency Range: 47Hz ~ 63Hz
• PFC: Active PFC (PF > 0.9 at full load)
• Efficiency: ≥ 89% & < 91% overall efficiency
• MTBF: 100,000 hours
• Operating temperature: 0°C ~ 50°C
• Protection: Over Current Protection, Over Power Protection, Over Voltage Protection, Over Temperature Protection, Short Circuit Protection, Under Voltage Protection
• Connectors: 1 x 24 / 20-Pin motherboard connector, 2 x 8 / 4-Pin EPS / ATX 12V connectors, 1 x 12+4-Pin 12VHPWR connector, 5 x 8 / 6-Pin PCIe connectors, 8 x SATA connectors, 6 x 4-Pin Peripheral connectors, 2 x 4-Pin Floppy connectors
• Cooling System: Silent 135mm FDB fan
• Noise Level: 0 dBA minimum
• Certification: Cybenetics Platinum
• Form factor: ATX (PS2)
• Other: GPU Support list
• Dimension (W x H x D): 150 × 86 × 150 mm
• Weight: 2.56 kg
