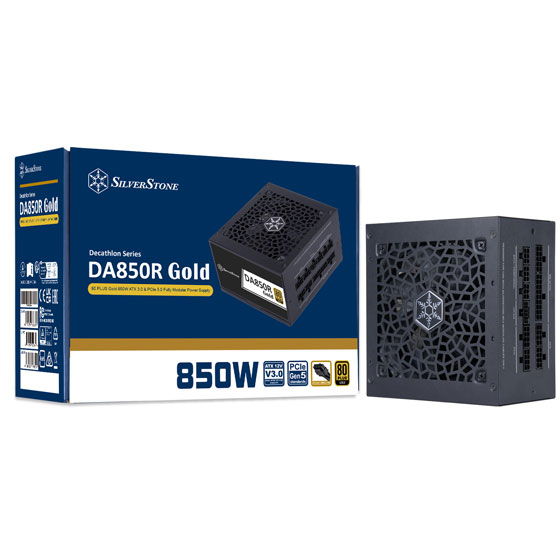

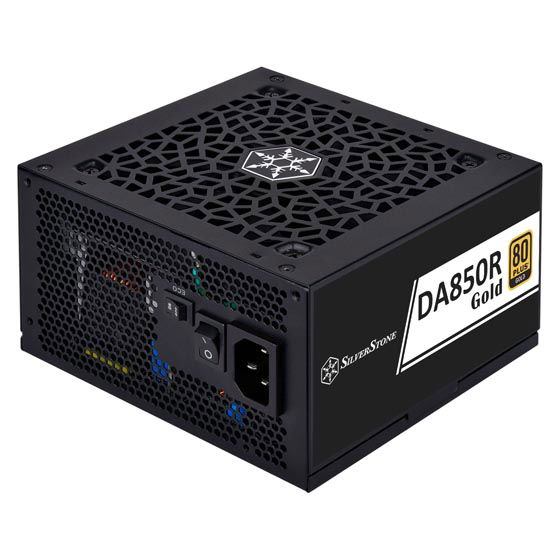

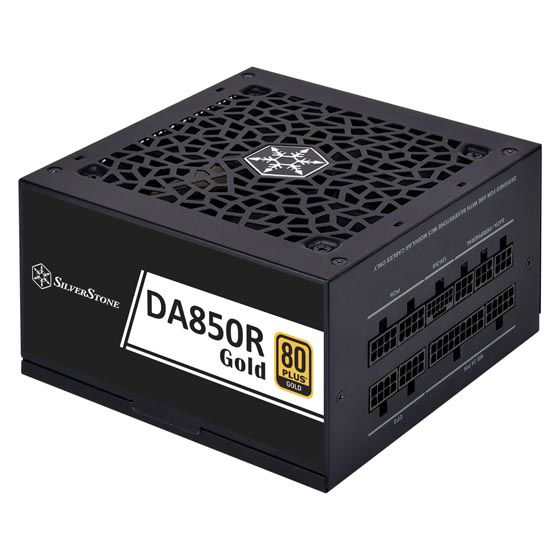

SilverStone DA850R Gold 850W Full Modular ATX Power Supply

SilverStone DA850R Gold 850W Full Modular ATX Power Supply

• 80 PLUS Gold efficiency certification
• Equipped with Gen5 12V-2x6 PCIe connector, meeting Intel ATX 3.0 specification standard
• Latest PCIe Gen 5 standard to support up to 2X power excursion
• 24/7 continuous power output with 50℃operating temperature
• Silent running 120mm fan with advanced semi-fanless operation
• Compact design with a 140mm depth for easy integration

• Max DC output: 850W
• Power density: 471W/L
• Combined +3.3, +5V: 100W
• Combined +12V: 850W
• Input voltage: 90 ~ 264 Vrms
• Input frequency range: 47Hz ~ 63Hz
• PFC: Active PFC (PF>0.9 at full load)
• Efficiency: ≥ 87% & < 89%
• MTBF: 100,000 hrs
• Operating temperature: 0°C ~ 50°C
• Protections: Over Current Protection, Over Power Protection, Over Voltage Protection, Short Circuit Protection, Over Temperature Protection, Under Voltage Protection
• Connectors: 1 x 24 / 20-Pin motherboard connector, 2 x 8 / 4-Pin EPS / ATX 12V connector, 4 x 8 / 6-Pin PCIe connectors, 1 x 12V-2x6 connector, 8 x SATA connectors, 4 x 4-Pin Peripheral connector
• Cooling system: Silent 120mm fan
• Form factor: ATX (PS2)
• Noise Level: 0 dBA minimum
• Certification: 80 PLUS Gold
• Color: Black (lead-free paint)
• Dimension (W x H x D): 150 x 86 x 140 mm
• Weight: 2.13 kg
