Product Description:

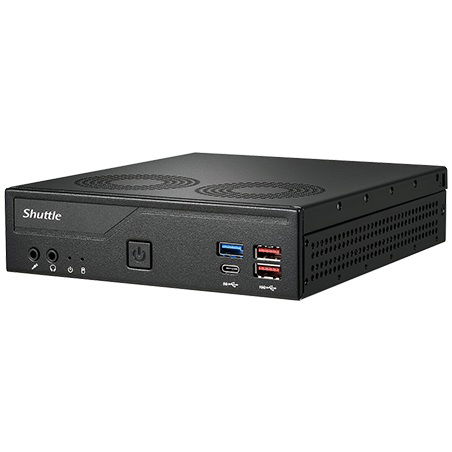

Shuttle XPC Slim DH770 LGA1700 DDR5 Barebone Mini PC
The Shuttle XPC Slim DH770 is a 1.3-liter Barebone Mini-PC featuring the H770 chipset, designed to support Intel 12th, 13th, and 14th generation LGA1700 processors with a maximum TDP of up to 65W. Thanks to Intel UHD graphics and dual DDR5-5600 support, the DH770 delivers enhanced graphics performance, faster memory access, and robust multitasking capabilities. It excels in AIoT Edge tasks, crystal-clear video streaming, and various demanding applications. Its compact design houses a wide array of I/O interfaces, including HDMI 2.0, DisplayPort 1.4, USB 3.2, COM (RS232/422/485), SATA 3.0, M.2 SSD, dual 2.5G LAN, and WLAN expansion. Whether utilized for a 4-display TV wall, interactive digital signage, NVR stations, or automation control, the DH770 offers exceptional versatility and reliability across various industries.
Features:
Supports the Latest Intel 14th Gen Processor:
Harness the power of the latest 10nm architecture and H770 chipset with the DH770, supporting Intel Raptor Lake Refresh (14th Gen) Processors. Its performance hybrid architecture extends core technology, integrates Intel graphic technology, enhances core efficiency, and delivers intelligent workload optimization while enabling the next-generation immersive visual and creative experience.
High-Performance DDR5-5600 Memory Support:
The DH770 supports dual-channel DDR5-5600 memory, leveraging its high bandwidth and multitasking capabilities to deliver exceptional performance and efficiency for AIoT computing applications.
Comprehensive I/O for Versatile Applications:
The DH770 offers a comprehensive I/O interface within its 1.3-liter mini model.
Quad-Display Support for 4K Video Walls:
Quad-display support enhances productivity, decision-making, and efficiency by providing additional screen space for various tasks. It is invaluable in finance, data analysis, graphic design, and industries like surveillance and digital signage.
COM Ports for Seamless Peripheral Integration:
The DH770 features two COM ports, one of which supports 0/5/12V, facilitating easy connection to peripherals such as thermal printers, automation devices, and barcode scanners.
Expand with M.2 for Enhanced Storage and Connectivity:
Enhance your capabilities with DH770's M.2 expansion slots, perfect for extending storage M.2 SSD and enabling Wi-Fi connectivity for seamless network access in various professional fields.
Harness the power of the latest 10nm architecture and H770 chipset with the DH770, supporting Intel Raptor Lake Refresh (14th Gen) Processors. Its performance hybrid architecture extends core technology, integrates Intel graphic technology, enhances core efficiency, and delivers intelligent workload optimization while enabling the next-generation immersive visual and creative experience.
High-Performance DDR5-5600 Memory Support:
The DH770 supports dual-channel DDR5-5600 memory, leveraging its high bandwidth and multitasking capabilities to deliver exceptional performance and efficiency for AIoT computing applications.
Comprehensive I/O for Versatile Applications:
The DH770 offers a comprehensive I/O interface within its 1.3-liter mini model.
Quad-Display Support for 4K Video Walls:
Quad-display support enhances productivity, decision-making, and efficiency by providing additional screen space for various tasks. It is invaluable in finance, data analysis, graphic design, and industries like surveillance and digital signage.
COM Ports for Seamless Peripheral Integration:
The DH770 features two COM ports, one of which supports 0/5/12V, facilitating easy connection to peripherals such as thermal printers, automation devices, and barcode scanners.
Expand with M.2 for Enhanced Storage and Connectivity:
Enhance your capabilities with DH770's M.2 expansion slots, perfect for extending storage M.2 SSD and enabling Wi-Fi connectivity for seamless network access in various professional fields.
Specifications:
• Form Factor: 1.3L chassis
• Operating System Support: Windows 11 64 bit O.S, Linux
• Processor: Support Intel 12th/13th/14th Generation Core i3/i5/i7/i9, Pentium, Celeron LGA1700 CPU max. TDP 65W
• Memory: 2 x DDR5 SODIMM slots,32GB per DIMM (Max 64GB) DDR5 5600 MHz
• Storage: SATA 6.0Gb/s interface, NVMe interface, Support SATA RAID 0,1
• Graphics: Intel UHD graphics
• Video Output: HDMI 2.0 x 2+ DisplayPort x 2, Quad video outputs; 4K playback (Dual channel memory recommended); Integrated in CPU
• Optical drive: None
• Onboard Connectors: 1x 4pin fan connector, 1x VGA (For PVG01 use), 1x 1x4 pin USB header(For WWN03 use), 1x SATA connector w/power, 1x Front audio header, 1x Auto power on header, 1x RS232 voltage switch

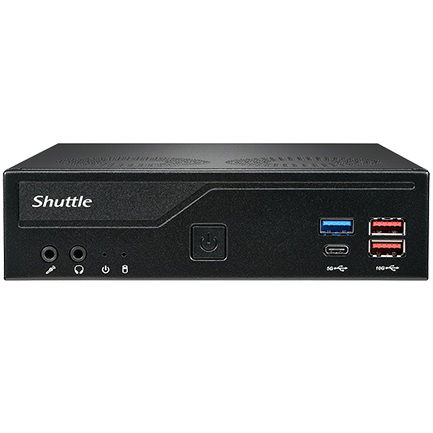

• Front Panel: 2x USB 3.2 Gen1 ports (Include Type C x1), 2x USB 3.2 Gen2 ports, 1x Microphone-In, 1x Line-Out, 1x Power-On button, 1x Power LED, 1x HDD LED

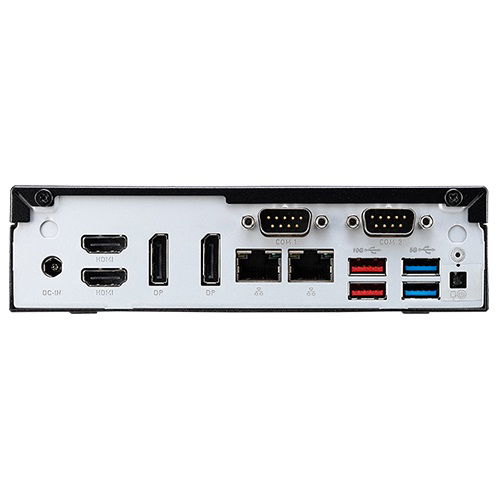

• Back Panel: 2x RJ45 LAN port w/LED, 2x HDMI port, 2x Display port, 2x USB 3.2 Gen1 ports, 2x USB 3.2 Gen2 ports, 1x RS232, 1x RS232/RS422/RS485, 1x External 4pin header, 1x DC-in, 2x Wireless Antenna fixture, 1x Kensington lock
• Drive Bays: 1x 2.5" HDD / SSD bay
• Power Supply: 120W Power Adapter; Input:100- 240V AC; 19V 6.32A
• Audio: Realtek ALC 888S High Definition Audio
• Dimensions (W x D x H): 190 x 165 x 43 mm
• Operating System Support: Windows 11 64 bit O.S, Linux
• Processor: Support Intel 12th/13th/14th Generation Core i3/i5/i7/i9, Pentium, Celeron LGA1700 CPU max. TDP 65W
• Memory: 2 x DDR5 SODIMM slots,32GB per DIMM (Max 64GB) DDR5 5600 MHz
• Storage: SATA 6.0Gb/s interface, NVMe interface, Support SATA RAID 0,1
• Graphics: Intel UHD graphics
• Video Output: HDMI 2.0 x 2+ DisplayPort x 2, Quad video outputs; 4K playback (Dual channel memory recommended); Integrated in CPU
• Optical drive: None
• Onboard Connectors: 1x 4pin fan connector, 1x VGA (For PVG01 use), 1x 1x4 pin USB header(For WWN03 use), 1x SATA connector w/power, 1x Front audio header, 1x Auto power on header, 1x RS232 voltage switch
• Front Panel: 2x USB 3.2 Gen1 ports (Include Type C x1), 2x USB 3.2 Gen2 ports, 1x Microphone-In, 1x Line-Out, 1x Power-On button, 1x Power LED, 1x HDD LED
• Back Panel: 2x RJ45 LAN port w/LED, 2x HDMI port, 2x Display port, 2x USB 3.2 Gen1 ports, 2x USB 3.2 Gen2 ports, 1x RS232, 1x RS232/RS422/RS485, 1x External 4pin header, 1x DC-in, 2x Wireless Antenna fixture, 1x Kensington lock
• Drive Bays: 1x 2.5" HDD / SSD bay
• Power Supply: 120W Power Adapter; Input:100- 240V AC; 19V 6.32A
• Audio: Realtek ALC 888S High Definition Audio
• Dimensions (W x D x H): 190 x 165 x 43 mm
Package Contents:
• Shuttle XPC Slim DH770
• XPC Multilanguage Quick User Guide
• XPC DVD Driver
• VESA mount
• VESA Screw pack
• Power cord
• Thermal Grease
• HDD Screw pack
• 120W adapter
• XPC Multilanguage Quick User Guide
• XPC DVD Driver
• VESA mount
• VESA Screw pack
• Power cord
• Thermal Grease
• HDD Screw pack
• 120W adapter
Additional Details:
-
Stock Availability: 11 In Stock Now
-
Warranty: 3 Years
-
Manufacturer:
Shuttle Shop
-
Product Found In: Shuttle Mini PCs
-
Model Number: DH770
-
Part Number: DV018259
