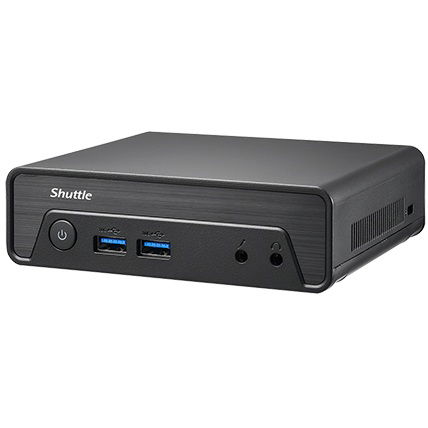

Shuttle NE10N Intel N100 3.4GHz Fanless Barebone Mini PC

The Shuttle NE10N is a compact yet powerful mini-PC designed for space-conscious environments, featuring a 0.6-liter chassis for versatile placement. Powered by Intel Alder Lake-N processors and Intel UHD Graphics, this mini-PC delivers responsive performance with advanced power efficiency and modern architecture while supporting dual 4K displays for enhanced visual experiences. With six USB ports for extensive connectivity and an M.2 2280 slot that can accommodate up to 1TB PCIe Gen3 NVMe or SATA drives, the NE10N offers flexibility for various business applications. Available in fanless configuration, the NE10N is engineered for reliable 24/7 operation in business scenarios, from digital signage and retail kiosks to office PCs and automation control systems.

Intel Alder Lake-N - Computing Efficiency:
The NE10N is equipped with Intel Alder Lake-N processors with integrated UHD Graphics to meet different computing needs. Part of the Alder Lake-N family the Intel Processor N series is built on Intel’s 10nm SuperFin process, featuring Intel’s ultra-low power technology and a new hybrid architecture that combines high-performance cores (P-cores) and energy-efficient cores (E-cores) for a better balance of performance and power efficiency.

Dual 4K Display Support - Visual Communication:
The NE10N supports dual independent 4K displays, offering an exceptional visual experience and flexible display configurations for improved workflow efficiency. Powered by Intel UHD Graphics with HDMI 2.0 and DisplayPort 1.4, it delivers clear, detailed visuals. Ideal for digital signage and commercial displays, it meets high-quality performance demands.

Storage and Wireless Options - Business Ready:
The NE10N maximizes expandability through dual M.2 slots, supporting high-speed storage and wireless connectivity for diverse deployments.

Practical Connectivity - Streamlined Design:
The NE10N delivers high-speed data transmission through placed USB ports on both the front and rear panels, which are optimized for commercial device connections.

Network Integration - Remote Control:
The NE10N supports Gigabit LAN for reliable network connectivity, with Wake-on-LAN functionality for remote system management. These features ensure seamless operation and convenient remote access, making the NE10N an ideal solution for business environments where efficient network communication and management are crucial.

Compact Design - 24/7 Reliability:
The NE10N combines reliability and flexibility in its compact NUC-style chassis, engineered for continuous operation. It is VESA-ready supporting 100x100mm and 75x75mm mounting patterns, offering versatile installation options to suit various business environments.

• Form Factor: Shuttle 0.6L Form Factor
• Operating System Support: Windows 11, Linux
• Processor: Intel Processor N100
• Memory: 1 x 260 pin SO-DIMM, DDR4 3200MT/s (Max 16GB)
• Storage: 1 x M.2 2230 E key, 1 x M.2 2280 M key (SATA/PCIE GEN3); up to 1TB PCIe Gen3 NVMe or SATA drives
• Graphics: Intel UHD Graphics
• Optical drive: None

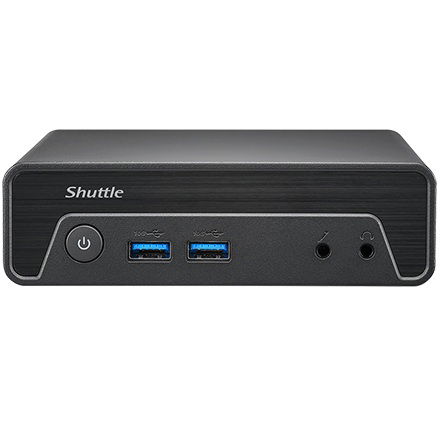

• Front Panel: 1 x Power button W/LED, 2 x USB 3.2 Gen 2, 1 x MIC-IN, 1 x Audio out

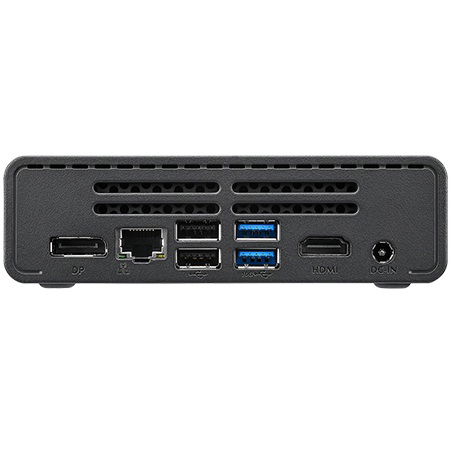

• Back Panel: 1 x Display port, 1 x RJ45, 2 x USB 2.0, 2 x USB 3.2 Gen2, 1 x HDMI, 1 x DC-in Jack
• Power Supply: 65W Power Adapter; Input: 100- 240V AC; 19V 3.42A
• Audio: Senary SN6140-CNZR Audio controller
• Dimensions (W x D x H): 135 x 115 x 39 mm

• Shuttle NE10N N100
• Quick User Guide
• VESA mount
• VESA screw pack
• Adapter and power cord
• M.2 SSD thermal pad pack
