Shuttle NA10H7 AMD Ryzen 7 8845HS 5.1GHz Dual Ethernet Barebone Mini PC

Powered by the AMD Ryzen 7-8845HS APU processor with Zen 4 microarchitecture, the Shuttle XPC nano Barebone NA10H7 comes with 8 cores, 16 threads, and AMD Radeon 780M graphics, delivering advanced performance and AI-readiness capabilities. The AI performance of the NPU is 16 TOPS and a total of 39 TOPS for NPU+CPU+GPU in combination, The AI-PC supports up to 64GB of DDR5 memory, and offers extensive I/O options including four UHD graphics ports and two USB4 ports. The NA10H7 provides high-performance, cost-effective solutions for generative AI workloads, making it ideal for content creation, gaming, entertainment, office tasks, commerce, and AIoT applications.

Quad 4K/UHD Display support:
NA10H7 features four digital video outputs: 2x HDMI and 2x DisplayPort 1.4 via USB-C. This allows for the connection of four independent displays at 4K resolution (3840 x 2160), leveraging hardware decoding and encoding for popular video codecs including AV1 and H.265. Using four displays can be a game-changer in various applications, enhancing productivity and providing a more immersive experience. This is advantageous for scenarios such as: Financial Trading, Software Development, Graphic Design, Video Editing, Gaming, Command Centers, Surveillance.

AMD Ryzen 7 8845HS Processor:
The NA10H7's advanced Zen 4 architecture supercharges productivity across diverse scenarios. In data analysis, it speeds up complex calculations, while in scientific simulations, it enables real-time modeling. For content creators, AI-enhanced tools accelerate video editing and 3D rendering, significantly reducing production time.

Fast Data Access with DDR5 and PCIe 4.0:
Experience high-bandwidth, energy-efficient, and unparalleled speed memory for smooth multitasking and data-intensive tasks. Benefit from the advantages of DDR5 memory with higher bandwidth and lower voltage compared to DDR4. NA10H7 also features a M.2-2280-Slot with PCI-Express Gen. 4 interface for faster speeds of compact modern M.2 SSD cards. NA10H7 also integrates a SD card reader for quickly access documents, photos and other files on your SD card.

Multiple modern I/O Ports:

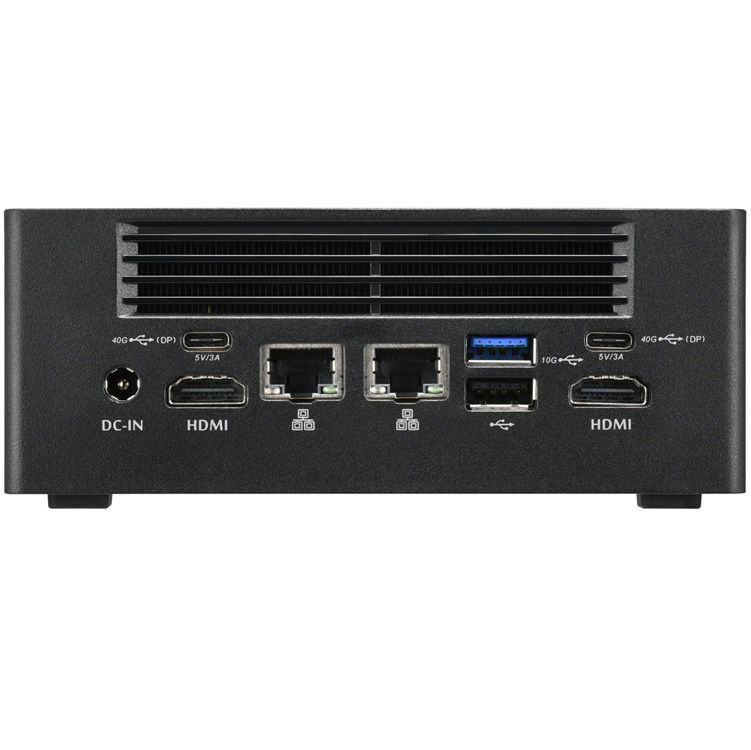

The NA10H7 can connect up to four digital 4K/UHD displays. Two USB4 Type-C ports support data transfer speeds of up to 40 Gbps, significantly faster than previous USB versions. Five USB 3.2 plus one USB 2.0 allow you to connect a variety of legacy and modern devices simultaneously. Dual 2.5G LAN ports provide higher network speeds compared to traditional 1G ports, making them ideal for bandwidth-intensive applications like gaming, video streaming, and large file transfers. The Audio Combo port supports both headphone and microphone connections. It allows you to connect a headset with an integrated microphone, making it convenient for activities like video calls, gaming, and listening to music.

• Form Factor: Mini PC
• Operating System Support: Windows 11 and Linux (64-bit)
• Processor: AMD Ryzen R7-8845HS CPU code name “Hawk Point” (Zen-4)
• Memory: max. 2x 48 GB DDR5-5600 (SO-DIMM)
• Storage: 1x Slot M.2-2280 supports PCIe Gen4 x4 / NVMe (SATA not supported)
• Graphics: Integrated
• Optical drive: None
• Interfaces: AMD Radeon 780M supports 4x UHD-Displays (2x HDMI 2.0, 2x USB4 Type-C (with DP 1.4))
• LAN Ports: Dual LAN – Realtek RTL8125B; 2x 2.5 Gbps RJ45 Ports
• Power Supply: 120 W, 19V
• Audio: Audio Combo Port (3.5 mm) supports Microphone and Line-out
• Dimensions (W x D x H): 132 x 143 x 55 mm
• Weight (approx.): 0.8 kg
