Shuttle DH610 LGA1700 DDR4 M.2 Barebone Computer

Save $200.00 off RRP
Shuttle

Genuine NZ new item

Find out more...

Today's Price:

$699.28incl gst

Free Delivery

In Stock. Can Ship Today- Details

Estimated Delivery Time

  • Auckland
    1 Day
  • North Island
    1-2 Days
  • South Island
    1-3 Days

Product Description:

Shuttle DH610 LGA1700 DDR4 M.2 Barebone Computer

Shuttle XPC Slim series DH610 supports Intel 12th Gen LGA1700 processors. With Intel new performance hybrid architecture and UHD graphics 700 series integrated, the model computes performance along with the potential for powering AI deployment. Support up to three displays via one HDMI 2.0b and two DisplayPort for display productivity and flexibility. Moreover, the model provides comprehensive connectivity with multiple ports, including four USB 3.2 Gen1 (Including one Type-C), four USB 2.0, two RS232, Intel 2.5GbE + Intel 1GbE LAN, and two M.2 expansion slots. DH610 can perform a reliable operation suitable for Office, Digital Signage, Kiosks, and other Multi-platform AI deployment.

Features:

• DH610
• Intel LGA1700 CPU
• Intel H610 Express chipset
• 2x DDR4 SO-DIMM Slots
• 1x HDMI, 2x Displayport, 1x M.2 2280 Type M key, 1x M.2 2230 Type E key
• 4x USB3.2 Gen1, 4x USB2.0, 1x 3.5mm in/out, 1x RS232, 1x RS232/RS422/RS485, 2x RJ45

Specifications:

• Form Factor: 1.3L chassis
• Processor: Support Alder lake-s LGA1700 socket Core i3/i5/i7/i9, Pentium, Celeron 65W processor
• Memory: 2 x DDR4 SODIMM slots,32GB per DIMM (Max 64GB) DDR4 up to 3200 MHz
• Video Output: HDMI 2.0 x 1+ DisplayPort x 2, Triple video outputs 4K playback (Dual channel memory recommended) Integrated in CPU
• Storage Interface: SATA 6.0Gb/s interface

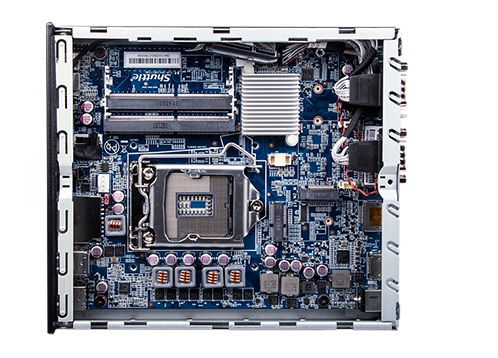

• Onboard Connectors: 1x 4pin fan connector, 1x VGA(For PVG01 use), 1x 1x4 pin USB header(For WWN03 use), 1x SATA connector w/power, 1x Front audio header, 1x Auto power on header, 1x RS232 voltage switch
• Chipset: Intel H610 Express chipset
• Audio: Realtek High Definition Audio
• Ethernet: Intel GbE Lan / (1)2.5 GbE Lan, 10Mb/s,100Mb/s,1Gb/s operation, Support Wake-On-LAN function, Support Teaming function

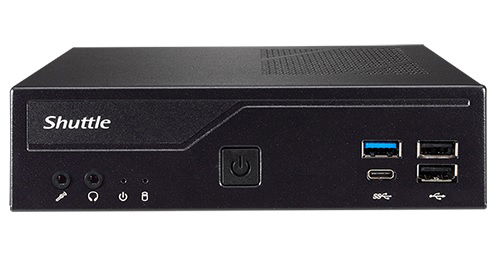

• Front Panel: 2x USB 3.2 Gen1 ports (Include Type C x1), 2x USB 2.0 ports, 1x Microphone-In, 1x Line-Out, 1x Power-On button, 1x Power LED, 1x HDD LED

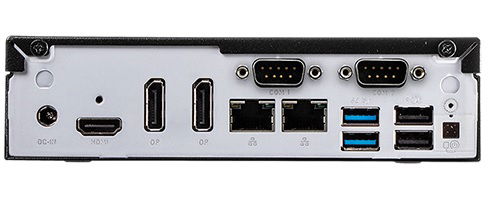

• Back Panel: 2x RJ45 Gigabit LAN port w/LED, 1x HDMI port, 2x Display port, 2x USB 3.2 Gen1 ports
2x USB 2.0 ports, 1x RS232, 1x RS232/RS422/RS485, 1x External 4pin header, 1x DC-in, 2x Wireless Antenna fixture, 1x Kensington lock
• Drive Bays: 1x 2.5" HDD / SSD bay
• Expansion Slot: 1x M.2 2280 Type M key socket, 1x M.2 2230 Type E key socket
• Dimensions (mm): 190(L) x 165(W) x 43(H) mm

Package Contents:

• Shuttle DH610
• XPC Multilanguage Quick User Guide
• XPC DVD Driver
• VESA mount
• VESA Screw pack
• Power cord
• Thermal Grease
• HDD Screw pack
• 120W adapter
