Product Description:

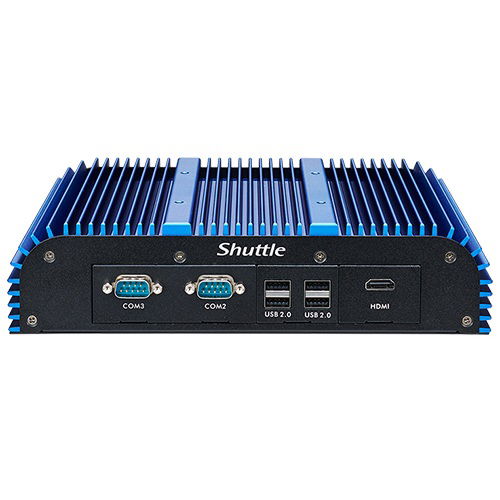

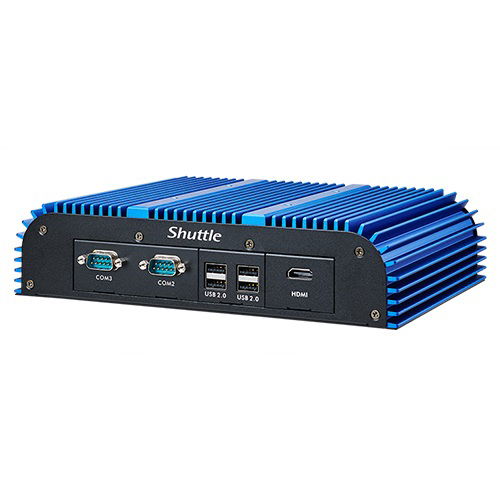

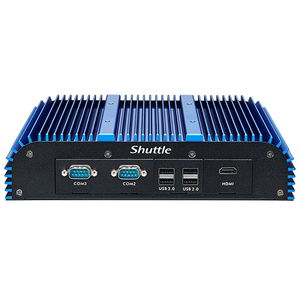

Shuttle BPCAL03 Intel i5-1235U 4.4GHz Fanless Industrial Mini PC with NO OS
BPCAL03 industrial computer uses a ruggedized box design for a wide range of industrial applications. It's highly durable and has a compact fanless IPC system and modular expansion. The BPCAL03 supports an extended operating temperature range of -20 to +60 °C. The Shuttle Box-PC series is offered as a complete system, either as a fixed configuration or as a customized BTO system.
Features:
Wide Temperature:
Operate in extreme environments with confidence using wide temperature support. Designed to withstand a wide range of temperature fluctuations, this feature ensures reliable performance and durability, making it ideal for industrial, outdoor, or harsh operating conditions where temperature variations are a concern.
Modular Connectivity:
The "Modular Connectivity" feature allows for flexible and customizable connectivity options, enabling users to easily adapt and expand the device's connectivity capabilities based on their specific needs.
Fanless:
The "Fanless" feature eliminates the need for a cooling fan, resulting in silent operation, enhanced reliability, and improved resistance to dust and debris, making it ideal for noise-sensitive environments, extended usage, and environments with challenging conditions.
Operate in extreme environments with confidence using wide temperature support. Designed to withstand a wide range of temperature fluctuations, this feature ensures reliable performance and durability, making it ideal for industrial, outdoor, or harsh operating conditions where temperature variations are a concern.
Modular Connectivity:
The "Modular Connectivity" feature allows for flexible and customizable connectivity options, enabling users to easily adapt and expand the device's connectivity capabilities based on their specific needs.
Fanless:
The "Fanless" feature eliminates the need for a cooling fan, resulting in silent operation, enhanced reliability, and improved resistance to dust and debris, making it ideal for noise-sensitive environments, extended usage, and environments with challenging conditions.
Specifications:
• Form Factor: Mini PC
• Operating System Support: Windows 10 / 11 IoT 64bit, Linux 64 bit
• Processor: Intel Processor Core i5-1235U
• Memory: 2 x 262 pin DDR5 SODIMM 4800 MHz slots; Supports dual channel up to 64GB (32GB x 2)
• Storage: M.2 2280 M key x 1 (PCI-E NVMe / SATA)
• Graphics: Intel UHD graphics
• Optical drive: None
• Front Panel: 2x RS232/RS422/RS485, 4x USB 2.0, 1x HDMI 1.4
• Back Panel: 2x 2.5 Gbps LAN, 4x USB 3.2 Gen 1, 1x HDMI 2.0, 1x RS232, 1x Headphone jack, 1x Microphone-in,
• Audio: Realtek ALC888s-VD 2-channel
• Power: 150W 19V/7.89A external adapter
• Mounting: VESA Mount 75 x 75 mm, Ear Mount 256 x 100 mm, Din Rail Mount 35 mm
• Dimensions (W x D x H): 245 x 57 x 169mm
• Weight: 2.85 kg
• Operating System Support: Windows 10 / 11 IoT 64bit, Linux 64 bit
• Processor: Intel Processor Core i5-1235U
• Memory: 2 x 262 pin DDR5 SODIMM 4800 MHz slots; Supports dual channel up to 64GB (32GB x 2)
• Storage: M.2 2280 M key x 1 (PCI-E NVMe / SATA)
• Graphics: Intel UHD graphics
• Optical drive: None
• Front Panel: 2x RS232/RS422/RS485, 4x USB 2.0, 1x HDMI 1.4
• Back Panel: 2x 2.5 Gbps LAN, 4x USB 3.2 Gen 1, 1x HDMI 2.0, 1x RS232, 1x Headphone jack, 1x Microphone-in,
• Audio: Realtek ALC888s-VD 2-channel
• Power: 150W 19V/7.89A external adapter
• Mounting: VESA Mount 75 x 75 mm, Ear Mount 256 x 100 mm, Din Rail Mount 35 mm
• Dimensions (W x D x H): 245 x 57 x 169mm
• Weight: 2.85 kg
Featured Video:
Additional Details:
-
Stock Availability: 3 In Stock Now
-
Warranty: 3 Years
-
Manufacturer:
Shuttle Shop
-
Product Found In: Shuttle Mini PCs
-
Model Number: BPCAL03-i5
-
Part Number: DV018262
