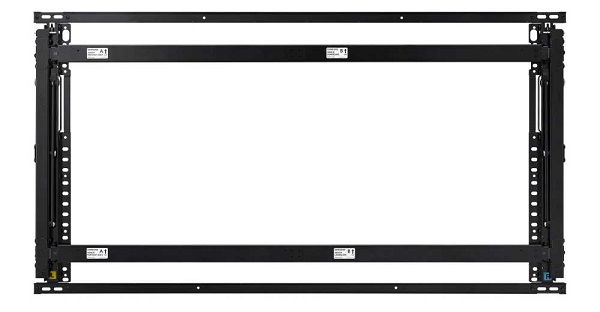

Samsung Slim Wall Mount for 55 Inch Flat Panel Commercial Displays - Up to 29kg

As multiple screens converge as part of large-scale video wall, a minimized bezel gap benefits audiences by providing a seamless viewing experience. Viewer attention is focused on the display’s visual message rather than the display itself for maximized impact. .Samsung’s new 46-inch (WMN-46VD) and 55-inch (WMN-55VD) wall mounts are specially designed for use with Samsung’s SMART Signage UD/UE Series video walls. As the mounts are sized specifically to the video walls, users only need to install the user-friendly mount first and then fit the video wall into the wall mount.

An Industry-Leading Slim Depth Enhances your Business Environment

• Samsung’s advanced video wall mounts offer an industry-leading slim depth of 39mm to enhance your business environment. Typically, video walls require the utilization of various accessories, including wall mounts, source cables and power cables, which can create a cluttered installation area and visual distraction.

Expand Presentational Flexibility through Landscape and Portrait Support

• With conventional mounting systems, video wall users are provided a specific mount for landscape and portrait orientations. Instead of requiring the utilization of multiple individual and costly wall mounts, Samsung’s versatile wall mounts for UD/UE Series video walls support both landscape and portrait orientations.

• VESA compatibility: 600x400, 400x600, 400x400
• SBB/PIM compatibility: Supported
• Touch Overlay compatibility: Not Supported
• Installation orientation: Landscape and Portrait
• Dimension (required footprint in space and floor) (WHD, mm): 1213.0 x 539.8mm (Landscape), 684.0 x 539.8mm (Portrait)
• Weight (kg): 11.3 kg
• Minimum wall thickness (mm): 39.9mm
• Max load (kg): 29.0 kg
• Recommended Usage: Standalone
• Maintainability: Push-Pull type
• Tilt/Swivel: N/A
