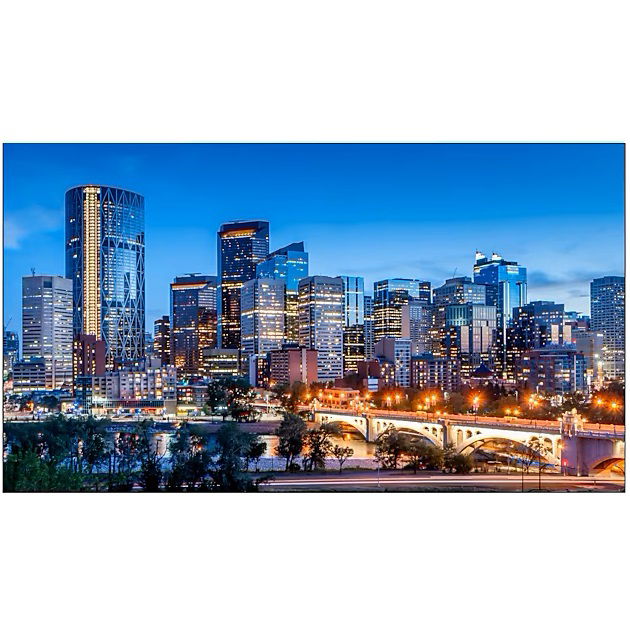

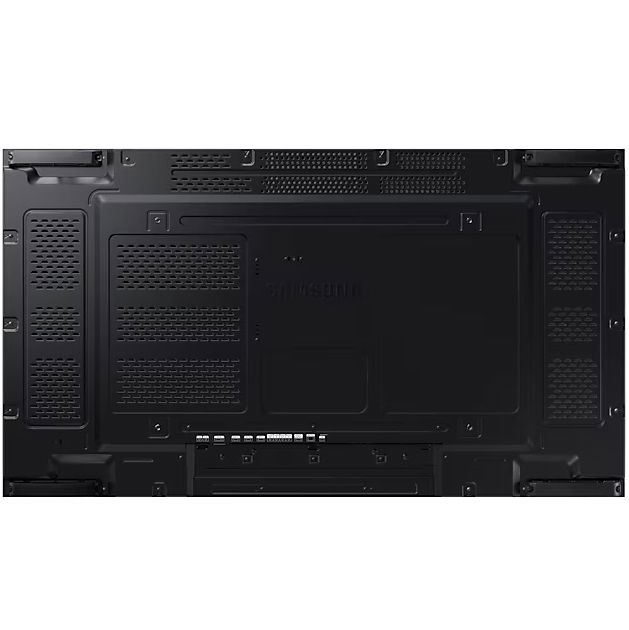

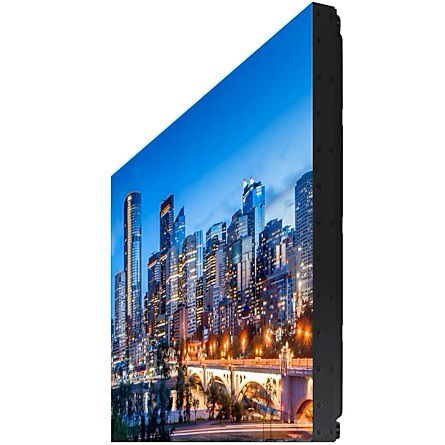

Samsung VMC-E 55 Inch FHD 1920 x 1080 500nit 24/7 Narrow Bezel Video Wall IPS Digital Signage Display

With a narrow bezel measuring just 1.74mm, the VMC-E delivers an impactful visual experience. Create an immersive, captivating and dependable viewing experience.

Modern, slim design:
The slender design and 70.4mm cabinet depth provides flexibility for installation and is intended to save space. With an aesthetically appealing design, this display creates a clean, modern look for retail or other public spaces.

View content from a variety of angles:
The VMC-E’s wide viewing angles mean content is easily visible to viewers, even when not standing directly in front of the display. This helps to deliver audiences clear information in a range of layouts and locations.

Brilliant images:
Immerse yourself in brilliant image presentation with 500nit brightness. Anti-glare panels help deliver incredible visibility in multiple light conditions. Combined with a high contrast ratio, this helps to deliver sharp images to audiences 24/7.

Image enhancement:
Samsung’s powerful picture enhancement technology is designed to deliver vibrant and clear content. Picture Enhancer mode improves colour saturation and contrast. Using Black Equaliser mode dark images are lightened, illuminating details to make information easier to see.

Convenient mobile calibration:
Samsung’s Colour Expert Pro mobile solution provides quick and easy Video Wall calibration through a compatible mobile camera. With the solution’s intuitive UI, even non-expert users can adjust the video wall’s white balance simultaneously without the need for additional equipment.

Display 4K UHD content:
Samsung video walls provide an impressive 4K UHD viewing experience with minimal effort. With daisy chain design utilising Display Port 1.2 and HDMI ports, when four compatible units are combined, the display can project 4K UHD content across multiple screens. With no external graphic card or UHD splitters required, Samsung's UHD Signage Player Box streamlines functionality by combining the media player and content management software.

Industry standard certification:
The VMC-E series is EMC class B compliant, meeting strict standards of electromagnetic wave emission, while IP5X certification protects the display against dust. The display packaging is also ISTA-certified, minimising damage during delivery.

Display:

• Diagonal Size: 55 Inch
• Panel Type: IPS
• Resolution: 1,920 x 1,080
• Pixel Pitch (HxV): 0.63x0.63
• Brightness (Typ): MAX 500 nit
• Contrast Ratio: 1,000:1
• Viewing Angle (H/V): 178/178
• Response Time: 8ms
• Colour Gamut: 72 %
• Glass Haze: 28 %
• H-Scanning Frequency: 57.3kHz ~ 70kHz
• Maximum Pixel Frequency: 78MHz
• V-Scanning Frequency: 47Hz ~ 63Hz
• Contrast Ratio (Dynamic): 100,000:1
• Operation Time Support: 24/7

Connectivity:

• HDMI In: 2
• DP In: 1
• DVI In: 1
• Version of HDMI: 2
• Version of DP: 1.2
• Version of HDCP: 2.2
• USB: 1
• IR In: Yes
• Audio In: Yes
• Audio Out: Stereo Mini Jack
• Video Out: Yes
• Power Out: No
• RS232 In: Yes
• RS232 Out: Stereo Mini Jack
• RJ45 In: Yes
• WiFi: No

Power:

• Power Supply: AC100-240V 50/60Hz
• Power Consumption (On Mode): 220 W
• Power Consumption (Sleep Mode): 0.5 W

Dimension & Weight:

• Dimension (WxHxD): 1212.2 x 683.0 x 70.4 mm
• Weight: 19.5 kg

Operation Conditions:

• Temperature: 0℃~ 40℃
• Humidity: 10 ~ 90%

Mechanical Specification:

• VESA Mount: 600 x 400 mm
• Bezel Width: B2B : 1.74mm (Panel Bezel to Panel Bezel), 1.3mm(U/L), 0.44mm(R/B) A2A : 2.49mm (Active area to Active area), 1.75mm(U/L), 0.74mm(R/B)
• Bezel Colour: Black
• Frame Material: Glossy

Optional Feature:

• Mount: Yes
• Stand: No
