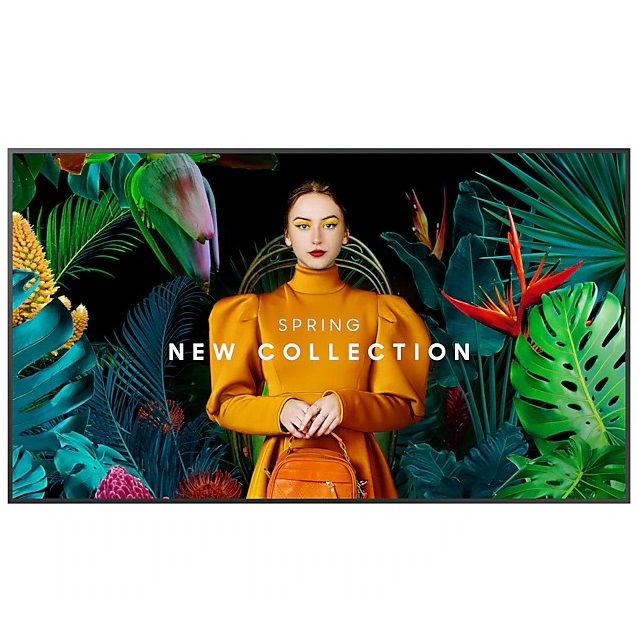

Samsung QHC 75 Inch 3840 x 2160 700nit 24/7 VA Commercial Display

Introducing QHC, the slimmest display in Samsung’s Professional Display range. It brings elegance to business while maximising space. With built-in solutions and intuitive home screen UX, the QHC is easy to use and helps enable businesses in various verticals to achieve growth with its efficiency and design innovation.

Maximum impact in minimum space:

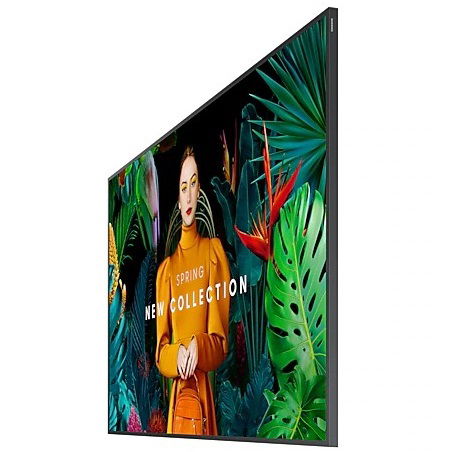

The QHC's ultra-slim thickness of 28.5mm makes it the thinnest option in Samsung’s UHD 4K series. Its sleek design and Slim Fit Wall Mount¹, helps you optimise space and install it neatly in a wide range of business environments.

Clean visuals in landscape or portrait mode:
The QHC’s bezels are consistent and even on all four sides of the display, with the same thickness and dimensions. The new even bezel design² helps prevent visual issues from arising when the display is adjusted to portrait mode.

Secure and even mounting:

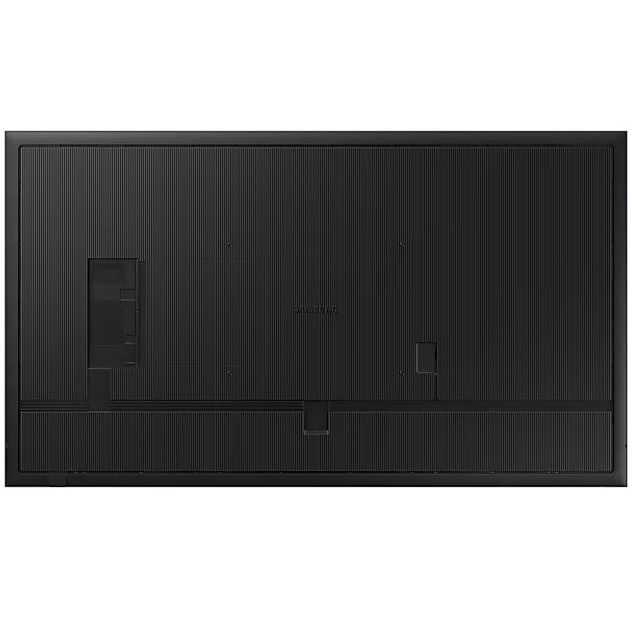

The central positioning of the VESA holes on the back of the display helps evenly distribute its weight for secure mounting. With the VESA holes positioned in the centre, this helps prevent the display from tilting unintentionally when adjusted into portrait mode.

Lifelike colour expression:
The QHC series features Dynamic Crystal Display, using 10 bit processing for vivid colour expression, allowing viewers to enjoy a wide spectrum of colours.

View lifelike shades of colour in powerful 4K:
Intelligent UHD upscaling technology, made possible by Samsung’s Crystal Processor 4K, enables content developed at a lower resolution to be elevated to UHD-level quality. It also performs edge restoration and noise reduction to help optimise on-screen text and imagery.

Clear visibility:
The QHC features non-glare panels that help provide visibility across a variety of environments. This helps allow businesses to deliver accurate information in various ambient lighting conditions.

Connect with convenience:
The QHC series’ home screen UI displays popular categories like Favourites, Sources and Settings on the same screen for convenience. The Favourites folder grants users quick, easy access to frequently used features.

Display:

• Diagonal Size: 75"
• Panel Type: VA
• Resolution: 3,840 x 2,160
• Pixel Pitch (HxV): 0.429x0.429mm
• Brightness (Typ): 700 nit
• Contrast Ratio: 4,000:1
• Viewing Angle (H/V): 178/178
• Response Time: 8ms
• Colour Gamut: 72% (NTSC)
• Glass Haze: 25%
• H-Scanning Frequency: 30~81kHz
• Maximum Pixel Frequency: 594MHz
• V-Scanning Frequency: 48~75Hz
• Contrast Ratio (Dynamic): Mega
• Operation Time Support: 24/7

Connectivity:

• HDMI In: 3
• DP In: 1
• Version of HDMI: 2
• Version of DP: 1.2
• Version of HDCP: 2.2
• USB: 2
• IR In: Yes
• Audio In: No
• Audio Out: Stereo Mini Jack
• RS232 In: Yes
• RS232 Out: Yes
• RJ45 In: Yes
• WiFi: Yes
• Bluetooth: Yes

Power:

• Power Supply: AC100-240V 50/60Hz
• Power Consumption (On Mode): 275 W
• Power Consumption (Sleep Mode): 0.5 W

Dimension:

• Dimension (WxHxD): 1682.3 x 960.4 x 28.5 mm
• Weight: 34.6 kg

Operation Conditions:

• Temperature: 0℃~ 40℃
• Humidity: 10 ~ 80%, non-condensing

Mechanical Specification:

• VESA Mount: 400 x 400 mm
• Bezel Width: 13.4mm (even)
• Frame Material: Non-Glossy

SoC:

• OS Version: Tizen 7.0
• Flash Memory Size: 16GB
