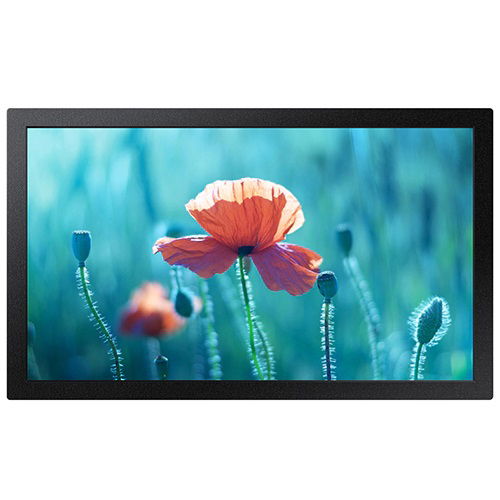

Samsung QBR 13 Inch 1920 x 1080 500nit 16/7 ADS Smart Touchscreen Interactive Display

Samsung's QB13R-M enables personalized and more impactful communication through its compact and versatile design. An all-in-one solution designed for professional use, the QB13R-M improves the operational efficiency of content, ensuring reliable performance for any business.

Crisp and visible content:
The display supports 1920x1080 FHD resolution, displaying crisp and easy-to-read content. This is enhanced by a non-glare panel which always delivers clear content in any ambient light. These innovative features are supported by reliable 16/7 operation, suitable for professional use.

Slim, smart design:
The compact and slim design of the QB13R-M allows for efficient space utilization, even in compact locations. A sleek back design makes the display optimal for either wall mounting or simply standing, with easy-to-operate connectivity, content play, and device controls.

Powerful content playback:
With an embedded MagicINFO S player, backed by TIZEN, the QB13R-M allows efficient and seamless playback without an external media player. SSSP also allows easy content development through reinforced compatibility with multiple web formats.

Comprehensive security setup:
The powerful Knox security system provides rigid three-layer security, offering airtight protection at the application, platform, and system levels, while restricting access to content and hardware. In addition, remote control of the network and USB ports prevents any unauthorized access.

Convenient, clean display control:
With center IR, each display receives IR signals directly to the panel, allowing easy and convenient remote control even with a tailored installation. When mounted, display doesn't require an IR receiver cabling extension. Built-in Wi-Fi allows wireless remote management for both content and display.

Safe operation, reliable performance:
The QB13R-M is Electromagnetic Compatibility (EMC) Class B compliant, meeting strict safety and reliability standards for operation. Additionally, IP5x rating ensures durable performance even in dusty environments.

Display:

• Screen Size: 13"
• Resolution: 1,920 x 1,080
• Contrast Ratio (Dynamic): 10000:1
• Viewing Angle (H/V): 178/178
• Panel Type: ADS
• Pixel Pitch (HxV): 0.153 (H) x 0.153 (V)
• Brightness (Typical): 500 nit
• Response Time (ms): 30ms
• Color Gamut: 45%
• Glass Haze: 25%
• H-Scanning Frequency: 30~81kHz
• Maximum Pixel Frequency: 594MHz
• V-Scanning Frequency: 48~75Hz
• Operation Time Support: 16/7
• Contrast Ratio: 800:01:00

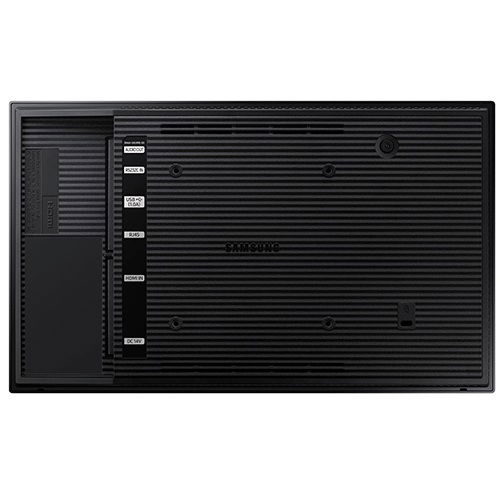

Connectivity:

• HDMI In: 1
• USB: 1
• Audio Out: Stereo Mini Jack
• RS232 In: Yes
• RJ45 In: Yes
• WiFi: Yes
• Version of HDMI: 1.4
• Version of HDCP: 2.2

Power:

• Power Supply: AC100-240V 50/60Hz
• Power Consumption (On Mode): 27.5W
• Power Consumption (Sleep Mode): 0.5W

Operation Conditions:

• Temperature: 0℃~ 40℃
• Humidity: 10 ~ 80%, non-condensing %

SoC:

• OS Version: Tizen 4.0
• Flash Memory Size: 8GB

Mechanical Specification:

• VESA Mount: 100 x 100 mm
• Bezel Width: 12.2
• Frame Material: Non-Glossy

Physical:

• Set Dimension (W x H x D): 322 x 193.5 x 28.2 mm
• Set Weight: 0.9 kg
