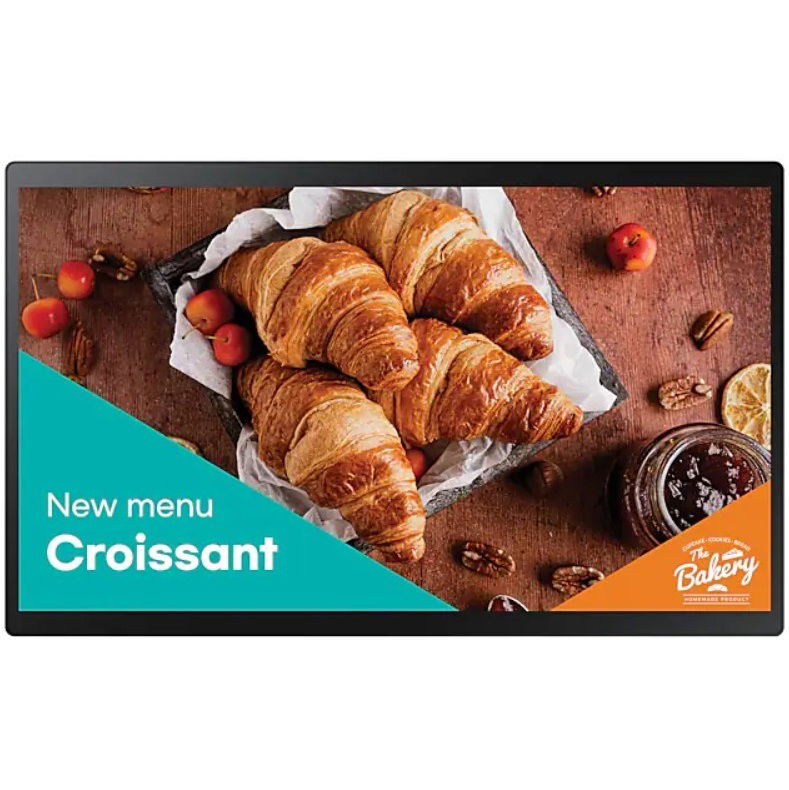

Samsung QBC-T 24 Inch FHD 1920x1080 250nit 16/7 Touchscreen ADS Interactive Display

Get the most out of every space with Samsung QB24C-T small digital signage. The compact display provides sharp messaging with its Full HD resolution. Its enhanced internal solutions and intuitive home screen UX make it easy to use, also ensuring reliable performance for any business use.

Fast, effective touch capabilities:
The QB24C-T provides 10-point multi-touch, while fast response time powers an intuitive interface that allows customer-driven search and action, creating new customer interactions that drive purchases.

Connect with convenience:
QB24C-T boasts greater usability with an upgraded home screen UI. Popular categories like Features, Sources and Settings are displayed on the same screen for convenient availability. The Favorites folder grants users quick, easy access to frequently used features in a single click.

Convenient, clean display control:
With center IR, each display receives IR signals directly to the panel, allowing easy and convenient remote control. When mounted, the display doesn't require an IR receiver cable extension. Built-in Wi-Fi allows wireless remote management for both content and display.

Safe operation, reliable performance:
QB24C-T is electromagnetic compatibility (EMC) class B compliant, meeting strict safety and reliability standards for operation. Additionally, the display's IP5x rating underscores its robust durability even in dusty environments.

Change the way to manage your display:
Samsung VXT is a cloud-based solution that brings together content management and remote device management capabilities, allowing users to remotely manage hardware settings and troubleshoot issues from afar, while effortlessly creating and deploying content without the need for training.

Display:

• Diagonal Size: 23.8"
• Panel Type: ADS
• Resolution: 1,920 x 1,080
• Pixel Pitch (HxV): 0.2745 x 0.2745 mm
• Brightness (Typ): 250 (Typ, w/o glass)
• Contrast Ratio: 1000:1(without glass)
• Viewing Angle (H/V): 178/178
• Response Time: 14ms
• Colour Gamut: 72% (NTSC)
• Glass Haze: 25(without glass)
• H-Scanning Frequency: 56~84.5KHz
• Maximum Pixel Frequency: 148.5MHz
• V-Scanning Frequency: 48~75Hz
• Contrast Ratio (Dynamic): Mega
• Operation Time Support: 16/7
• Dimension (WxHxD): 547.9 x 334.4 x 34.6 mm
• Weight with Stand: 4.0 kg

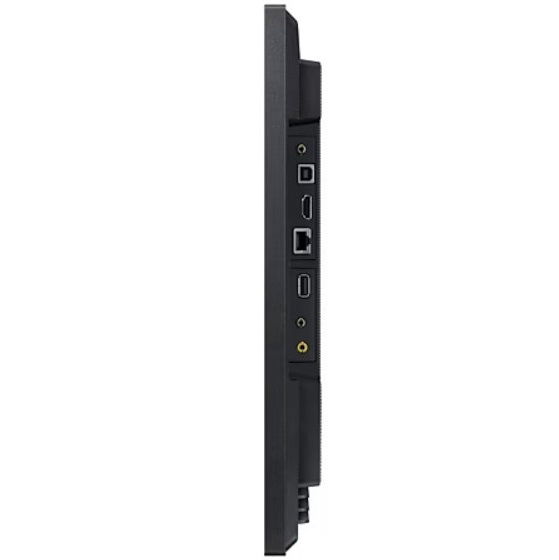

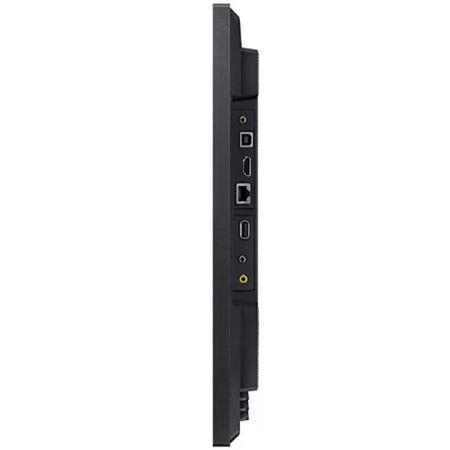

Connectivity:

• HDMI In: 1
• Version of HDMI: 1.4
• Version of DP: No
• Version of HDCP: 2.2
• USB: 1
• IR In: Yes
• Audio In: No
• Audio Out: Stereo Mini Jack
• RS232 In: Yes
• RJ45 In: Yes
• WiFi: Yes
• Bluetooth: Yes

Power:

• Power Supply: AC100-240V 50/60Hz
• Power Consumption (On Mode): 38.5W
• Power Consumption (Sleep Mode): 0.5 W

Operation Conditions:

• Temperature: 0 °C~ 40 °C
• Humidity: 10 ~ 80%, non-condensing

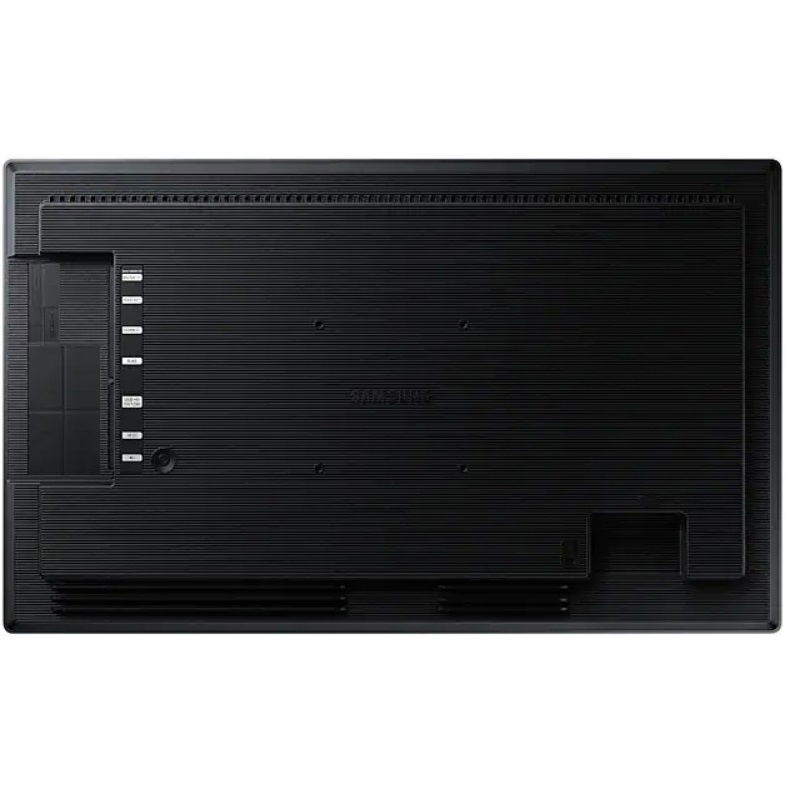

Mechanical Specification:

• VESA Mount: 100 x 100 mm
• Frame Material: Non-Glossy

Optional Feature:

• Touch: Yes
• Mount: No
• Stand: No

SoC:

• OS Version: Tizen 7.0
• Flash Memory Size: 8GB

Touch:

• Touch Technology: Capative
