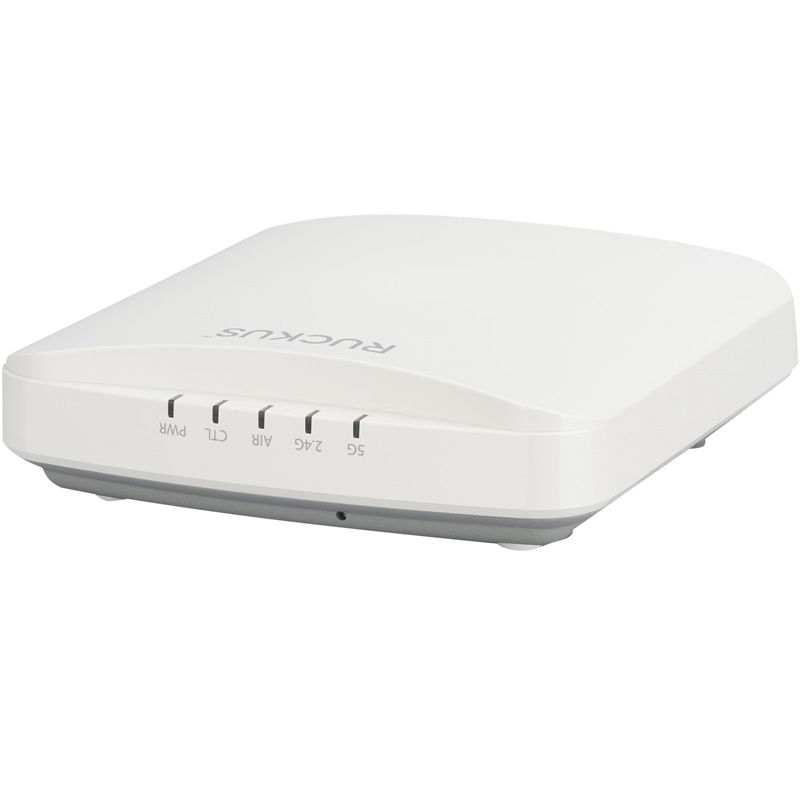

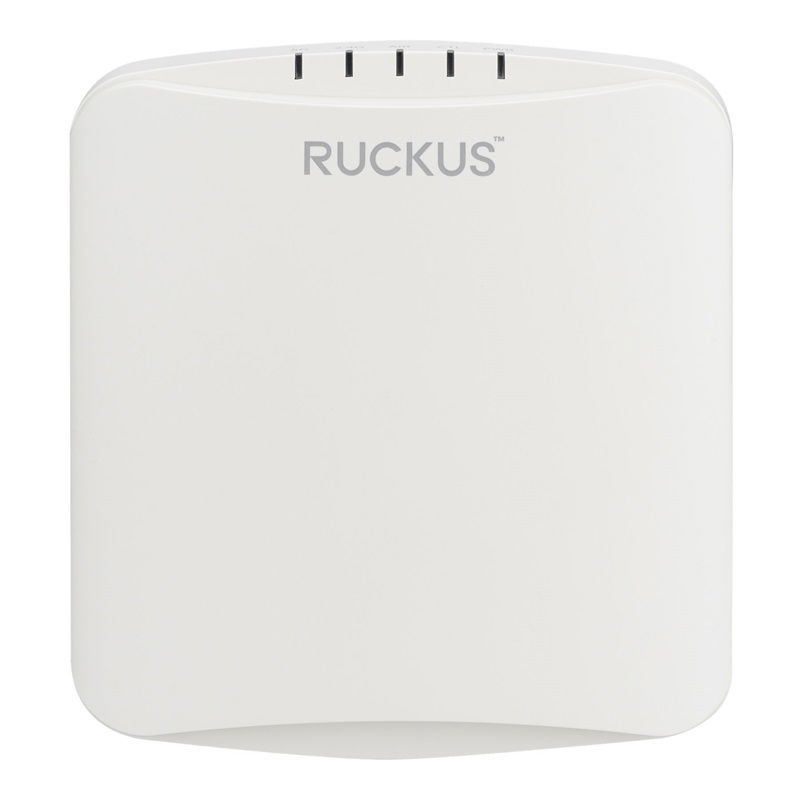

Ruckus Unleashed R350 WiFi 6 Mu-mimo PoE Wireless Indoor Access Point

The RUCKUS R350 delivers consistent, reliable Wi-Fi 6 (802.11ax) wireless networking at an affordable price. The AP features the patented RUCKUS technologies for performance optimization and interference mitigation found in our premier access points, delivering superior user experiences at extended ranges. But it provides them in an ultra-compact form factor built for small venues—with a price tag to match.

Latest Wi-Fi Standards:
The R350 access point (AP) support the latest Wi-Fi 6 (802.11ax) technology

Stunning Wi-Fi Performance:
Patented RUCKUS technologies for performance optimization and interference mitigation delivers extended coverage and superior user experience.

IoT Ready:
Eliminate siloed networks and unify Wi-Fi and IoT technologies into one single network by using or any future wireless technologies with the addition of an optional USB module.

Mesh Networking:
Dynamically create self-forming, self-healing network mesh with RUCKUS patented SmartMesh technology reducing expensive cabling, and complex configurations by checking a box.

Affordable Enterprise Performance:
The R350 delivers unprecedented price/performance offering extended range at an affordable price.

Multiple Unified Management Options:
Manage the R350 from the cloud, with on-premises physical/virtual appliances, or without a controller.

Keep Existing Switches And Cables:
Designed to operate on existing PoE switches and CAT 5e cabling to minimize costly power infrastructure upgrades.

General:

• Antenna Patterns, per band: 64
• Antenna Gain: Up to 3 dBi
• BeamFlex: Yes
• ChannelFly: Yes
• Concurrent Users: 256
• Controller Support: RUCKUS Cloud | RUCKUS SmartZone | RUCKUS Unleashed | RUCKUS - ZoneDirector | Standalone
• Ethernet Ports: 1 x 1 GbE
• IoT Support: IoT Ready
• Number of Radios: Dual-Radio
• PD-MRC: Yes
• PHY Rate at 2.4 GHz, maximum: 574 Mb/s
• PHY Rate at 5 GHz, maximum: 1200 Mb/s
• Combined Max PHY Rate: 1774 Mb/s
• Radio Chains and Streams: 2x2:2
• Rx Sensitivity at 2.4 GHz: -101 dBm
• Rx Sensitivity at 5 GHz: -101 dBm
• SmartMesh: Yes
• Venue Type: Office/Retail
• Venue Sub-Type: Remote/Home Office
• Wi-Fi Bands Supported: 2.4 GHz | 5 GHz
• Wi-Fi Generation: Wi-Fi 6
• Wi-Fi Interface Standard: IEEE 802.11a/b/g/n/ac/ax

Physical Interfaces:

• Ethernet: 1 x 1GbE port, RJ-45
• USB: 1 USB 2.0 Port, Type A

Physical Characteristics:

• Dimension (LxWxH): 14.60 x 15.59 x 3.93 cm
• Weight: 368g
• Mounting: Wall, Drop ceiling, Desk; Secure bracket (sold separately)
• Physical Security: Hidden latching mechanism; T-bar Torx
• Operating Temperature: 0 ºC (32 ºF) to 40 ºC (104 ºF)
• Operating Humidity: Up to 95%, non-condensing

Power:

• Power Supply: Maximum Power Consumption
• PoE (Full Functionality): 12.62W
• DC input: 11.4 W

Software and Services:

• Location Based Services: SPoT
• Network Analytics: SmartCell Insight (SCI)
• Security and Policy: Cloudpath
