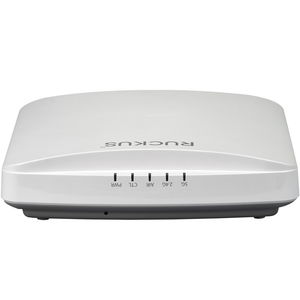

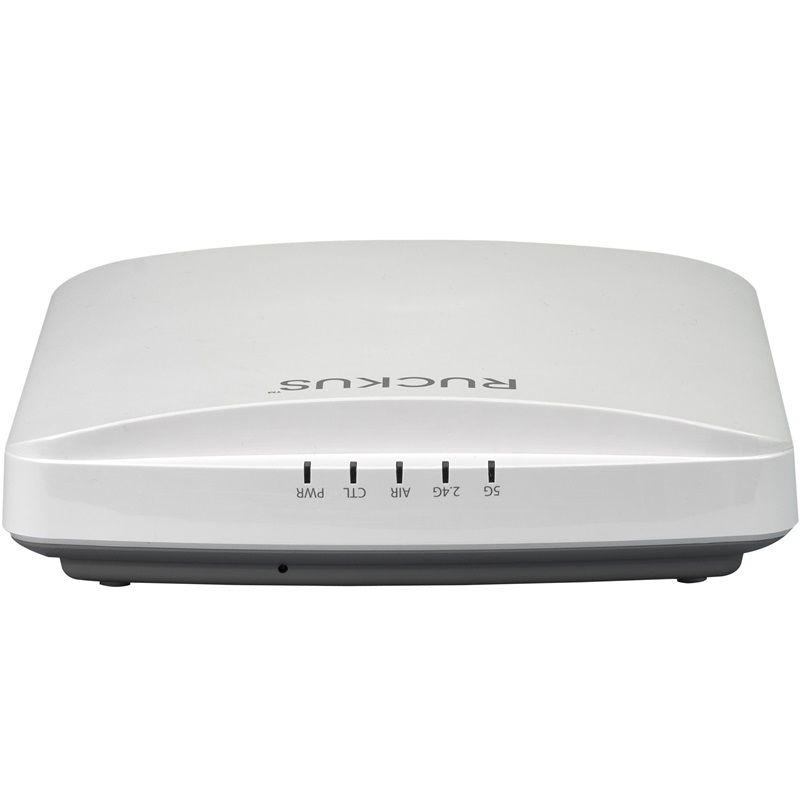

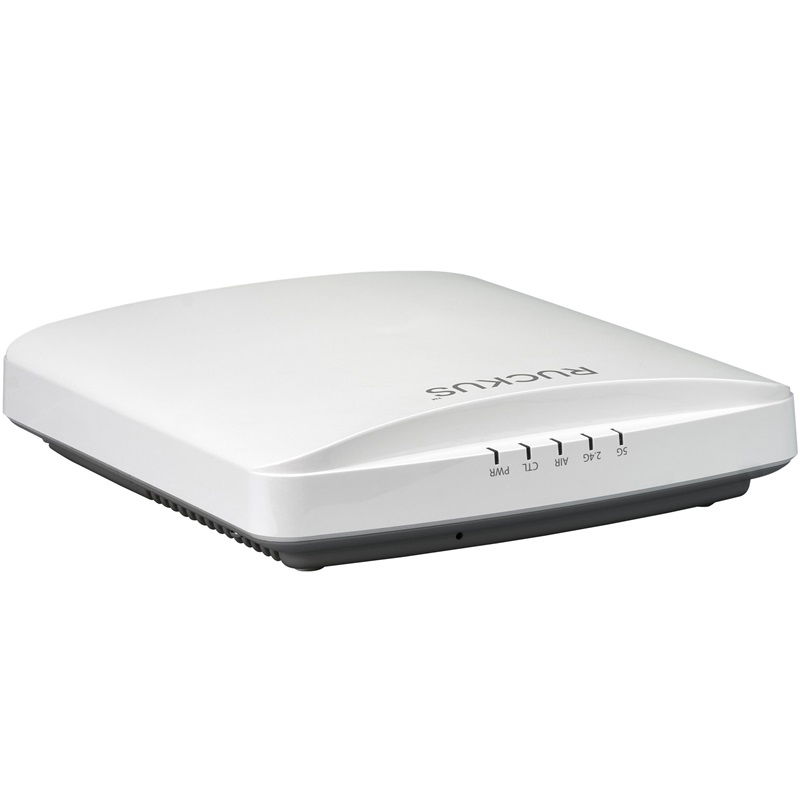

Ruckus R650 Unleashed WiFi 6 Mu-mimo PoE+ Wireless Indoor Access Point

The RUCKUS R650 access point (AP) with the latest Wi-Fi 6 (802.11 ax) technology delivers increased capacity, improved coverage and performance in dense environments. The R650 is our mid-range dual-band, dual-concurrent AP that supports six spatial streams (4x4:4 in 5GHz, 2x2:2 in 2.4GHz). The R650 supports peak data rates of up to 2974 Mbps and efficiently manages up to 512 clients connections. Furthermore, 2.5GbE Ethernet ensures the backhaul will not be a bottleneck for full use of available Wi-Fi capacity.

Stunning Wi-Fi Performance:
Mitigate interference and extend coverage with patented BeamFlex+ adaptive antenna technology utilizing several directional antenna patterns

Serve More Devices:
Connect more devices simultaneously with six MU-MIMO spatial streams and concurrent dual-band 2.4/5GHz radios while enhancing device performance

Converged Access Point:
Allow customers to eliminate siloed networks and unify WiFi and non-WiFi wireless technologies into one single network by using built-in Bluetooth Low Energy and Zigbee, and also expanding to any future wireless technologies

Automate Optimal Throughput:
ChannelFly dynamic channel technology uses machine learning to automatically find the least congested channels. You always get the highest throughput the band can support

Multiple Management Options:
Manage the R650 from the cloud, with on-premises physical/virtual appliances, or without a controller

Better Mesh Networking:
Reduce expensive cabling, and complex mesh configurations by checking a box with SmartMesh wireless meshing technology to dynamically create self-forming, self-healing mesh networks

General:

• Antenna Gain: Up to 3 dBi
• BeamFlex: Yes
• Concurrent Users: 512
• Controller Support: RUCKUS SmartZone | RUCKUS ZoneDirector | Standalone
• Ethernet Ports: 1 x 1 GbE | 1 x 2.5 GigE
• IoT Support: IoT Onboard
• PD-MRC: Yes
• PHY Rate at 2.4 GHz, maximum: 574 Mb/s
• PHY Rate at 5 GHz, maximum: 2000 Mb/s
• Combined Max PHY Rate: 2574 Mb/s
• Radio Chains and Streams: 4x4:4 (5 GHz) 2x2:2 (2.4 GHz)
• SmartMesh: Yes
• USB: USB 2.0
• Venue Type: Education | Office/Retail
• Venue Sub-Type: Classroom | Office Space | Stores
• Wi-Fi Bands Supported: 2.4 GHz | 5 GHz
• Wi-Fi Generation: Wi-Fi 6
• Wi-Fi Interface Standard: IEEE 802.11a/b/g/n/ac/ax

Physical Interfaces:

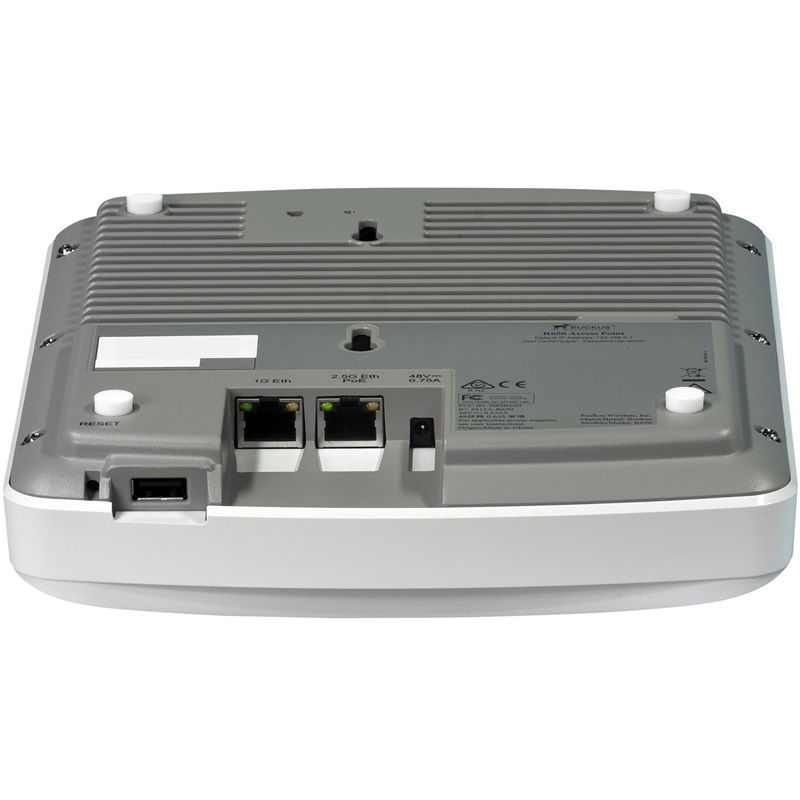

• Ethernet: One 2.5Gbps Ethernet port and one 1Gbps Ethernet port; Power over Ethernet (802.3af/at) with Category 5/5e/6 cable; LLDP
• USB: 1 USB 2.0 port, Type A

Physical Characteristics:

• Dimension (LxWxH): 22.4 x 19.4 x 4.7cm
• Weight: 0.854 kg
• Mounting: Wall, acoustic ceiling, desk; Secure bracket (sold separately)
• Physical Security: Hidden latching mechanism; T-bar Torx; Bracket (902-0120-0000) Torx screw & padlock (sold separately)
• Operating Temperature: 0ºC (32ºF) - 50ºC (122ºF)
• Operating Humidity: Up to 95%, non-condensing

**Power Supply

• 802.3af PoE
• 802.3at PoE+

Max Power Consumption:

• 12.25W
• PoE+ : 21.59W
• DC Power: 21.46W

Software and Services:

• Location Based Services: SPoT
• Network Analytics: SmartCell Insight (SCI)
• Security and Policy: Cloudpath
