Ruckus R550 Unleashed WiFi 6 Mu-mimo PoE+ Wireless Indoor Access Point

The RUCKUS R550 access point (AP) with the latest Wi-Fi 6 (802.11 ax) technology delivers the ideal combination of increased capacity, improved coverage and affordability in dense environments. The R550 is our mid- range dual-band, dual-concurrent AP that supports four spatial streams (2x2:2 in 2.4GHz/5GHz). The R550 supports peak data rates of up to 1774 Mbps and efficiently manages up to 512 clients connections.

Stunning Wi-Fi Performance:
Mitigate interference and extend coverage with patented BeamFlex+ adaptive antenna technology utilizing several directional antenna patterns

Serve more devices:
Connect more devices simultaneously with four MU-MIMO spatial streams and concurrent dual-band 2.4/5GHz radios while enhancing device performance

Converged access point:
Allow customers to eliminate siloed networks and unify Wi-Fi and IoT technologies into one single network by using built-in Bluetooth Low Energy and Zigbee, and also expand to any future wireless technologies

Automate Optimal Throughput:
ChannelFly dynamic channel technology uses machine learning to automatically find the least congested channels. You always get the highest throughput the band can support

Better Mesh Networking:
Reduce expensive cabling, and complex mesh configurations by checking a box with SmartMesh wireless meshing technology to dynamically create self-forming, self-healing mesh networks

General:

• Antenna Patterns, per band: 64
• Antenna Gain: Up to 3 dBi
• BeamFlex: Yes
• ChannelFly: Yes
• Concurrent Users: 512
• Controller Support: RUCKUS Cloud | RUCKUS SmartZone | RUCKUS ZoneDirector | Standalone
• Ethernet Ports: 2 x 1 GbE
• IoT Support: IoT Onboard
• Number of Radios: Dual-Radio
• PD-MRC: Yes
• PHY Rate at 2.4 GHz, maximum: 574 Mb/s
• PHY Rate at 5 GHz, maximum: 1200 Mb/s
• Combined Max PHY Rate: 1774 Mb/s
• Radio Chains and Streams: 2x2:2
• Rx Sensitivity at 2.4 GHz: -97 dBm
• Rx Sensitivity at 5 GHz: -97 dBm
• SmartMesh: Yes
• USB: USB 2.0
• Venue Type: Education | Hospitality | Office/Retail
• Venue Sub-Type: Classroom | Hallways | Office Space
• Wi-Fi Bands Supported: 2.4 GHz | 5 GHz
• Wi-Fi Generation: Wi-Fi 6
• Wi-Fi Interface Standard: IEEE 802.11a/b/g/n/ac/ax

Physical Interfaces:

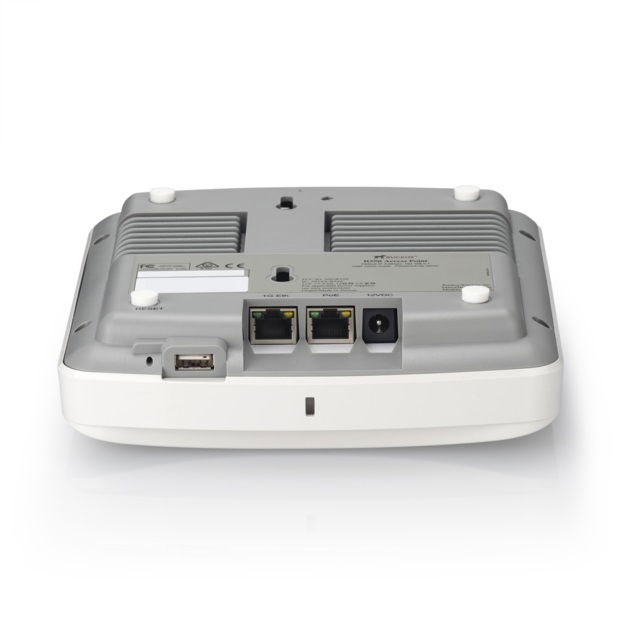

• Ethernet: 2 x 1GbE Ethernet ports; Power over Ethernet (802.3af/at) with Category 5/5e/6 cable; LLDP
• USB: 1 USB 2.0 port, Type A

Physical Characteristics:

• Dimension (LxWxH): 17.60 x 19.02 x 4.78 cm
• Weight: 0.562 kg
• Mounting: Wall, acoustic ceiling, desk; Secure bracket (sold separately)
• Physical Security: Hidden latching mechanism; Kensington lock; Bracket (902-0120-0000)
• Operating Temperature: 0ºC (32ºF) - 50ºC (122ºF)
• Operating Humidity: Up to 95%, non-condensing

Power Supply:

• 802.3af PoE
• 802.3at PoE+
• DC Input 12VDC

Max Power Consumption:

• PoE: 12.71W
• PoE+ : 18.71W
• 16.58W

Software and Services:

• Location Based Services: SPoT
• Network Analytics: SmartCell Insight (SCI), Ruckus Analytics
• Security and Policy: Cloudpath
